071095-00 Briggs and Stratton Transfer System 200 Amp Direct Power

Model: 071095-00

Save
 Part Not Listed?Part Not Listed?
product name

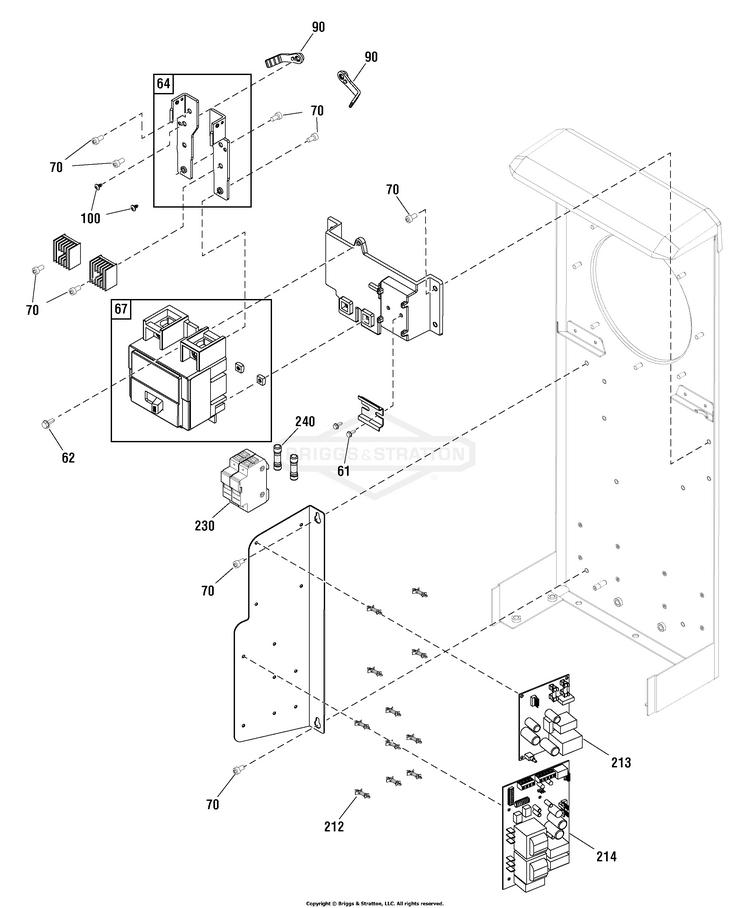

Circuit Board & Breaker Group

...
...
62
SCREW BS-200020GS
...
64
KIT, Buss Bar (Includes all parts shown in box.) BS-707416
...
67
CIRCUIT BREAKER (Includes all parts shown in box.) BS-707392
...
70
SCREW (Set of 2) BS-707411
...
90
TERMINAL BS-707393
...
100
SCREW (Set of 2) BS-707394
...
212
SPACER (Set of 4) BS-707397
...
213
BOARD, Circuit BS-310443GS
...
214
BOARD-CIRCUIT BS-771701
...
230
HOLDER, Fuse BS-707399
...
240
FUSE, 10A BS-205110GS

Decals Group

...
...
90
DECAL SHEET, Warnings (Includes all items shown in box) BS-707406
...
100
DECAL SHEET, Warnings, Junction Box (Includes all items shown in box) BS-707407

Enclosure Group

...
...
20
BRACKET BS-707380
...
30
GASKET BS-707381
...
40
TRAY BS-707384
...
50
PANEL, Meter Cover BS-707385
...
60
GASKET (With Adhesive) BS-707382
...
80
DEADFRONT (Includes Insulation & Decals) BS-707383
...
110
SCREW (Set of 2) BS-707411
...
120
DOOR BS-707409
...
130
SCREW (Set of 2) BS-707394
...
140
BUMPER BS-707386
...
150
PANEL, Bottom BS-707410
...
1030
KIT, Mounting Bracket (Includes all parts shown in box) (Qty 2 required) BS-707405
...
1050
GROMMET BS-707417

Junction Box & Mounting Group

...
...
20
ADAPTER, Meter BS-707404
...
30
TERMINAL BLOCK (Includes all parts shown in box) BS-707400
...
60
CURRENT TRANSFORMER BS-707401
...
70
TERMINAL BLOCK, Compact BS-707402
...
80
WASHER, Ext. M6 - 1/4" Shakeproof BS-26850GS
...
90
NUT BS-49813GS
...
130
CONNECTOR BS-707403
...
230
SCREW BS-194561GS
...
240
GROMMET BS-707417

Meter Mounting Group

...
...
31
PALNUT, 3/16 BS-189164GS
...
32
KIT, Sockets, Upper (Includes all parts shown in box.) BS-707387
...
33
BUSS BAR, Right BS-707389
...
34
BUSS BAR, Left BS-707390
...
36
KIT, Hardware (Includes set of 4) BS-707391
...
40
O-RING BS-707388
...
50
NUT BS-198937GS
...
110
COVER, Meter (Includes all parts shown in box.) BS-707395
...
121
STANDOFF BS-707418
...
130
TRANSFER SWITCH, 200A BS-707396
...
140
WASHER BS-707415
...
150
SCREW (Includes Set of 2) BS-707411
...
180
SCREW BS-194561GS
...
190
WASHER BS-22097GS
...
200
BOLT BS-42568GS
...
260
WASHER, Ext. M6 - 1/4" Shakeproof BS-26850GS
...
270
NUT BS-49813GS
...
...
...
