071076-00 Briggs and Stratton Transfer System 100 Amp Automatic Transfer Switch

Model: 071076-00

Save Part Not Listed?
product name

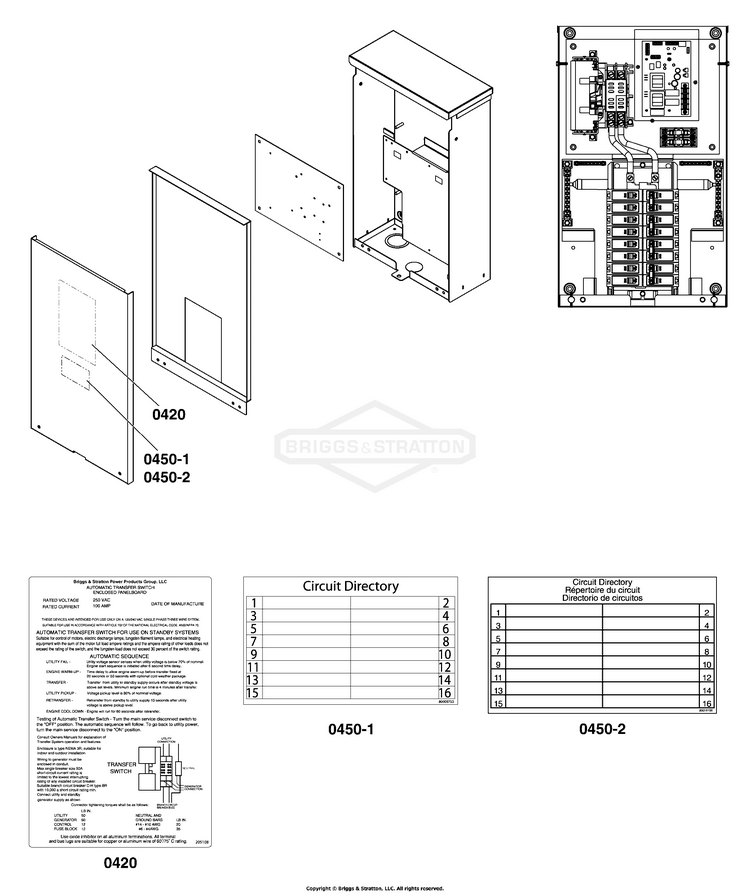

Decals Group - ATS Informational

...
...
0420
DECAL, 100A, ATS BS-205108GS

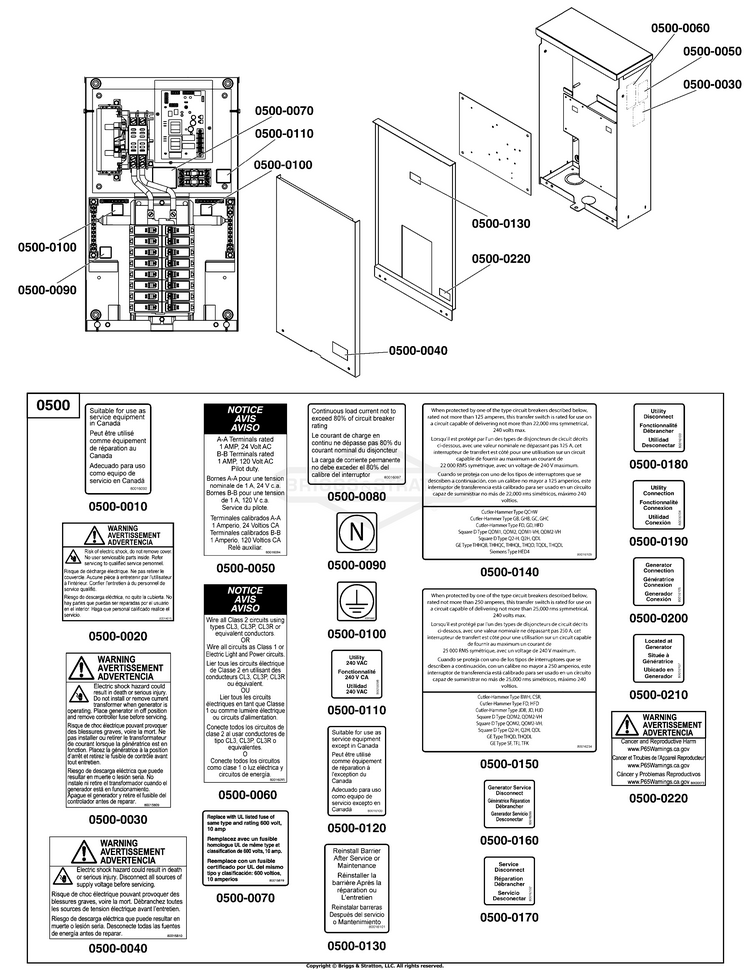

Decals Group - ATS Warning (Used After Serial No. 1021929244)

...
...
0500
DECAL SHEET - WARNINGS (Includes items 0500-0010 thru 0500-0220) BS-770133

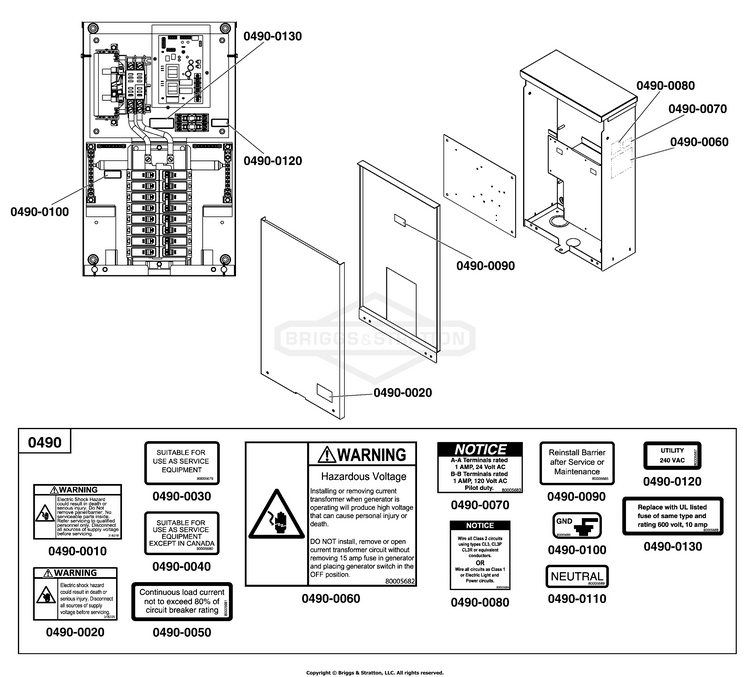

Decals Group - ATS Warning (Used Before Serial No. 1021929245)

...
...
0490
DECAL SHEET - WARNINGS (Includes items 0490-0010 thru 0490-0130) BS-704420

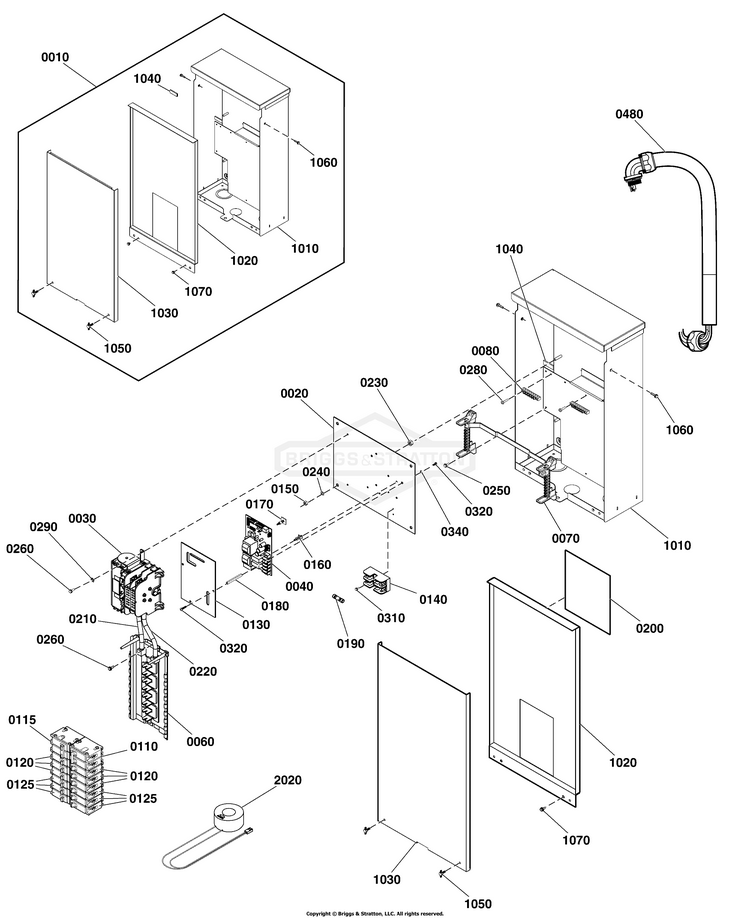

Transfer Switch

...
...
1050
SCREW BS-315108GS
...
1060
TRILOBULAR, #10-32 x 3/4 BS-24679GS
...
1070
SCREW BS-B5763GS
...
0030
CONTACTOR, 100A BS-314867GS
...
0040
BOARD-CIRCUIT BS-771701
...
0050
HARNESS, Wiring, ATS (Not Illustrated) BS-201285GS
...
0060
BUS BS-198719GS
...
0070
BLOCK-NEUTRAL BS-705747
...
0110
BREAKER, Circuit, 30A BS-198723GS
...
0115
BREAKER-CIRCUIT, 20A BS-198724GS
...
0120
BREAKER, Circuit, 20A BS-198725GS
...
0125
BREAKER-CIRCUIT, 15A BS-198726GS
...
0130
COVER, Circuit Board BS-204511GS
...
0140
FUSE HOLDER, 30 Amp 2P BS-192151GS
...
0150
NUT, HEX, 3/8-16 BS-703577
...
0160
SPACER, PCB Board, 1/2" BS-197979GS
...
0170
SUPPORT, Locking, Crct Brd BS-202841GS
...
0180
SPACER BS-204433GS
...
0190
FUSE, 10 Amp 600v BS-205110GS
...
0200
INSULATION, Dead Front BS-193664GS
...
0210
WIRE - R BS-204431GS
...
0220
WIRE - R BS-204432GS
...
0230
NUT, Hex, 1/4-20 BS-22127GS
...
0240
WASHER BS-22097GS
...
0250
TRILOBULAR, #10-32 x 3/4 BS-24679GS
...
0260
SCREW, Trilobular, #10-32 x 1/2 BS-200020GS
...
0290
WASHER BS-23762GS
...
0310
SCREW, Hex Head, Trilobular, #6-32 x 3/8 BS-192730GS
...
0320
PPHMS, 6-32 X 3/8 BS-36901GS
...
0340
WASHER, Lock BS-22155GS
...
0480
WHIP ASSEMBLY BS-704417
...
2020
TRANSFORMER BS-208106GS
...
--
KIT-TRANSFORMER,ATS (Not Illustrated) BS-709518
...
--
HARNESS, Wiring, ATS (Not Illustrated) BS-201285GS
