071071-02 Briggs and Stratton Transfer System 100 Amp Automatic Transfer Switch (Packaged)

Model: 071071-02

Save
 Don't See Your Part Listed?
product name

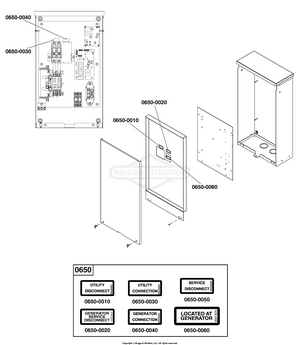

Decals Group - ATS Connections (Used After Serial No. 1022681815 and Before Serial No. 1023495596)

...
...
0650
DECAL SHEET - CONNECTIONS (Includes items 0650-0010 thru 0650-0060) BS-705423

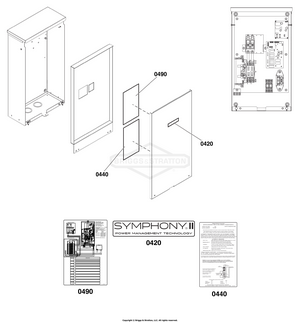

Decals Group - ATS Informational (Used After Serial No. 1022681815)

...
...
0420
DECAL, Symphony II BS-770606
...
0440
DECAL, Transfer Switch, 100A BS-84004857
...
0490
DECAL, Wiring BS-311306GS

Decals Group - ATS Warning (Used After Serial No. 1022681815 and Before Serial No. 1023495596)

...
...
0520

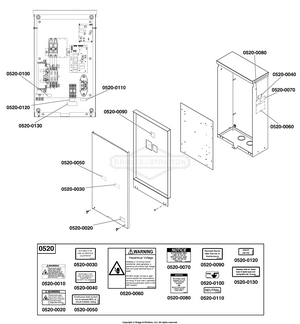

DECAL SHEET - WARNINGS (Includes items 0520-0010 thru 0520-0130) BS-704420

Decals Group - ATS Warning (Used After Serial No. 1023495595)

...
...
0520

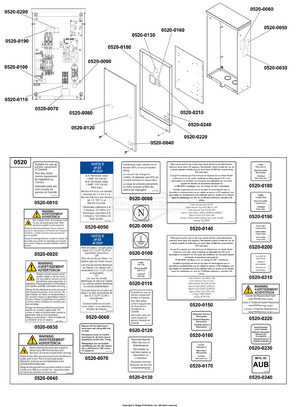

DECAL SHEET - WARNINGS (Includes items 0520-0010 thru 0520-0240) BS-84007663

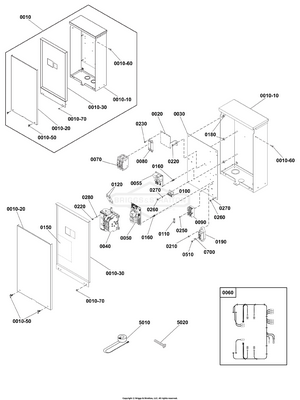

Transfer Switch - Hingeless Enclosure

...
...
0010-50
SCREW BS-315108GS
...
0010-60
TRILOBULAR, #10-32 x 3/4 BS-24679GS
...
0010-70
SCREW BS-B5763GS
...
0020
BRACKET, Crct Brkr Mntng BS-198129GS
...
0040
CONTACTOR, 100A BS-314867GS
...
0050
BOARD-CIRCUIT BS-771701
...
0055
BOARD, Circuit BS-310443GS
...
0060
HARNESS, Wiring, ATS BS-201285GS
...
0070
BREAKER, Circuit, 100A BS-311318GS
...
0080
BRACKET, Mounting / Breaker BS-192770GS
...
0090
FUSE HOLDER, 30 Amp 2P BS-192151GS
...
0100
TERMINAL, GROUND BS-84006973
...
0110
FUSE, 10 Amp 600v BS-205110GS
...
0120
WIRE, Copper BS-193689GS
...
0150
INSULATION, Dead Front BS-193664GS
...
0160
SPACER, PCB Board, 1/2" BS-197979GS
...
0180
NUT, Hex, 3/8-16 BS-22241GS
...
0190
TERMINAL, Neutral (Incl. Ref. Nos. 0210, 5020) BS-192696GS
...
0210
TRILOBULAR, #10-32 x 3/4 BS-24679GS
...
0220
SCREW, Trilobular, #10-32 x 1/2 BS-200020GS
...
0230
TRILOBLAR, 8-32 x 3/8 BS-24911GS
...
0250
SCREW, Hex Head, Trilobular, #6-32 x 3/8 BS-192730GS
...
0260
NUT, Hex, 1/4-20 BS-22127GS
...
0270
WASHER BS-22097GS
...
0280
WASHER BS-23762GS
...
0700
ADAPTER, Male Disconnect BS-74138GS
...
5010
TRANSFORMER BS-208106GS
...
5020
SCREW, Bonding, 1/4-20 X 1 3/4" BS-84007447

Wiring Diagram - Transfer Switch

...

No Parts Available for this Schematic

Wiring Schematic - Transfer Switch

...

No Parts Available for this Schematic

...
...
...
...
