071070-02 Briggs and Stratton Transfer System 150 Amp Transfer Switch w/Symphony II

Model: 071070-02

Save
 Don't See Your Part Listed?
product name

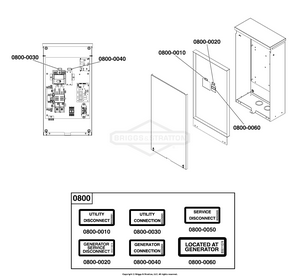

Decals Group - ATS Connections (Used After Serial No. 1022510632 and Before Serial No. 1023533175)

...
...
0800
DECAL SHEET - CONNECTIONS (Includes items 0800-0010 thru 0800-0060) BS-705423

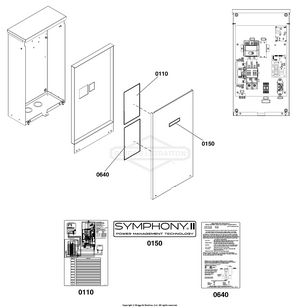

Decals Group - ATS Informational (Used After Serial No. 1022510632)

...
...
0110
DECAL, Wiring BS-311306GS
...
0150
DECAL, Symphony II BS-770606
...
0640
DECAL, Transfer Switch, 150 Amp BS-770514

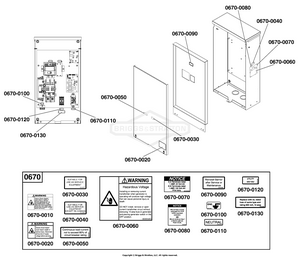

Decals Group - ATS Warning (Used After Serial No. 1022510632 and Before Serial No. 1023533175)

...
...
0670
DECAL SHEET - WARNINGS (Includes items 0670-0010 thru 0670-0130) BS-704420

Decals Group - ATS Warning (Used After Serial No. 1023533174)

...
...

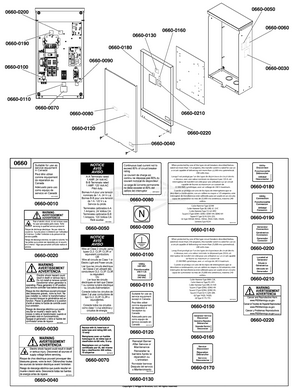

0660
DECAL SHEET - WARNINGS (Includes items 0660-0010 thru 0660-0220) BS-770133

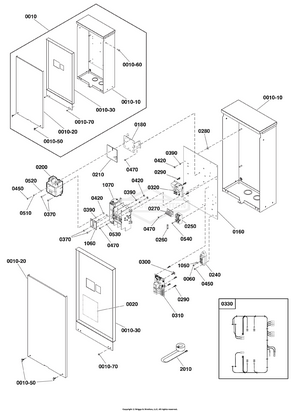

Transfer Switch - Hingeless Enclosure

...
...
0010-20
DOOR (Includes Decals) BS-770438
...
0010-50
SCREW BS-315108GS
...
0010-60
TRILOBULAR, #10-32 x 3/4 BS-24679GS
...
0010-70
SCREW BS-B5763GS
...
0020
INSULATION, Dead Front BS-193664GS
...
0020-20
SCREW, Bonding, 1/4-20 X 1 3/4" (Not Illustrated) BS-84007447
...
0180
BRACKET BS-770433
...
0200
CIRCUIT BREAKER, 150A, 2 Pole BS-209168GS
...
0210
INSULATION, Circuit Breaker BS-192879GS
...
0240
TERMINAL, Neutral (Incl. Ref. No. 0450 and bonding screw) BS-192696GS
...
0250
FUSE HOLDER, 30 Amp 2P BS-192151GS
...
0260
FUSE, 10 Amp 600v BS-205110GS
...
0270
LUG BS-84004498
...
0280
NUT, Hex, 3/8-16 BS-22241GS
...
0290
SPACER, PCB Board, 1/2" BS-197979GS
...
0300
SUPPORT, Locking, Crct Brd BS-202841GS
...
0310
BOARD-CIRCUIT BS-771701
...
0320
BOARD, Circuit BS-310443GS
...
0330
HARNESS, Wiring, ATS BS-201285GS
...
0390
WASHER BS-22097GS
...
0420
NUT, Hex, 1/4-20 BS-22127GS
...
0450
TRILOBULAR, #10-32 x 3/4 BS-24679GS
...
0470
SCREW, Trilobular, #10-32 x 1/2 BS-200020GS
...
0510
FUEL SHUTOFF VALVE BS-5022152
...
0520
WASHER, Flat, #10 - M5 BS-23897GS
...
0530
WASHER BS-23762GS
...
0540
SCREW, Hex Head, Trilobular, #6-32 x 3/8 BS-192730GS
...
1050
ADAPTER, Male Disconnect BS-74138GS
...
1060
BAR-BUS BS-319267GS
...
1070
CONTACTOR, 200A BS-315050GS
...
2010
TRANSFORMER BS-208106GS

Wiring Diagram - Transfer Switch

...

No Parts Available for this Schematic

Wiring Schematic - Transfer Switch

...

No Parts Available for this Schematic

...
...
...
...
