071070-01 Briggs and Stratton Transfer System 150 Amp Transfer Switch w/Symphony II

Model: 071070-01

Save
 Don't See Your Part Listed?
product name

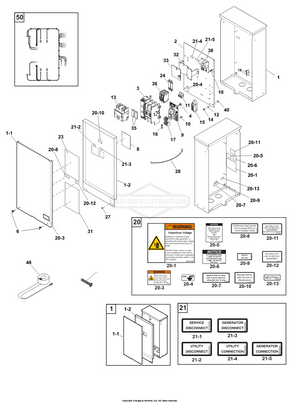

Transfer Switch - Hingeless Enclosure

...
...
1-1
DOOR BS-705956
...
1-2
DEADFRONT BS-705961
...
3
CONTACTOR, 200A BS-315050GS
...
4
STANDOFF BS-202841GS
...
6
SCREW BS-315108GS
...
8
INSULATION BS-193664GS
...
9
BOARD-CIRCUIT BS-771701
...
10
SPACER BS-197979GS
...
11
TERMINAL, GROUND BS-84006973
...
13
CIRCUIT BREAKER, 150A, 2 Pole BS-209168GS
...
15
TERMINAL (Includes mounting and bonding screws.) BS-192696GS
...
16
FUSE BS-205110GS
...
17
HOLDER, Fuse BS-192151GS
...
18
CLIP BS-197355GS
...
20
DECAL SHEET - WARNINGS (Includes Ref. Nos. 20-1, 20-3, 20-4, 20-5, 20-6, 20-7, 20-8, 20-9, 20-10, 20-11 & 20-12) BS-704420
...
21
DECAL SHEET-CONNECTIONS (Includes Ref. Nos. 21-1, 21-2, 21-3, 21-4 & 21-5) BS-705423
...
23
DECAL BS-200011GS
...
24
BRACKET BS-192770GS
...
27
SCREW BS-B5763GS
...
28
CABLE, Transfer Switch to Generator Circuit Breaker, 4 AWG Black BS-704240
...
31
DECAL BS-311306GS
...
32
BRACKET BS-201157GS
...
33
INSULATOR BS-192879GS
...
35
BAR-BUS BS-319267GS
...
36
BREAKER, Circuit, 100A BS-311318GS
...
38
BOARD, Circuit BS-310443GS
...
40
NUT, 3/8"-16 BS-22241GS
...
48
KIT, Manual/ACC (Includes Ref. Nos. 21-1, 48-1, 48-2 & Manuals.) BS-703831
...
48-1
TRANSFORMER BS-208106GS
...
48-2
SCREW, Bonding BS-193306GS
...
--
MANUAL, Operator BS-319375GS
...
--
MANUAL, Install BS-319376GS

Wiring Diagram - Transfer Switch

...

No Parts Available for this Schematic

Wiring Schematic - Transfer Switch

...

No Parts Available for this Schematic

...
...
...
...
