071060-0 Briggs and Stratton Transfer System 100 Amp Automatic Transfer Switch w/ACCM

Model: 071060-0

Save
 Don't See Your Part Listed?
product name

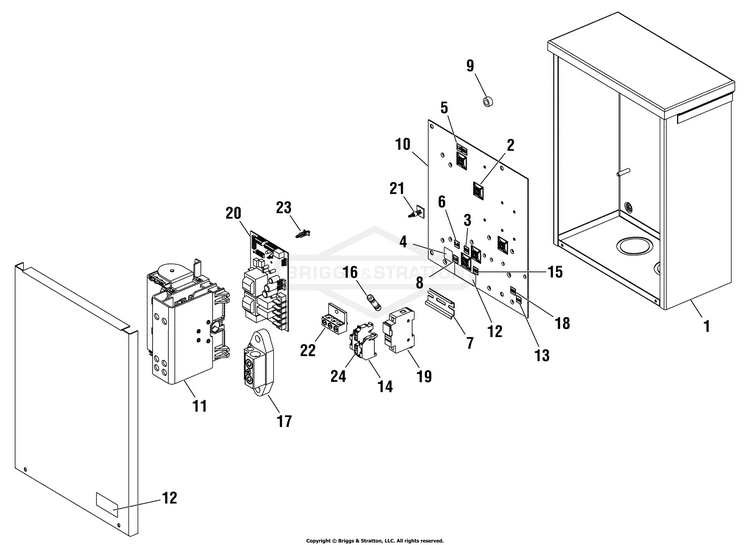

Transfer Switch

...
...
2
MOUNT BS-315946GS
...
3
DECAL BS-315590GS
...
4
DECAL BS-315132GS
...
5
DECAL BS-315593GS
...
6
DECAL BS-315589GS
...
7
BRACKET BS-315459GS
...
8
DECAL BS-315591GS
...
9
NUT, 3/8"-16 BS-22241GS
...
11
CONTACTOR, 100A BS-314865GS
...
12
DECAL BS-315473GS
...
13
DECAL BS-315596GS
...
14
TERMINAL, Block BS-205029GS
...
15
DECAL BS-315592GS
...
16
FUSE BS-205110GS
...
17
TERMINAL (Includes mounting and bonding screws.) BS-192696GS
...
18
DECAL BS-315594GS
...
19
HOLDER, Fuse BS-315409GS
...
20
BOARD-CIRCUIT BS-771701
...
21
SUPPORT BS-202841GS
...
22
TERMINAL, GROUND BS-84006973
...
23
SUPPORT BS-197979GS
...
24
TERMINAL, Block BS-205028GS
...
--
MANUAL, Operator (Not Illustrated) BS-315526GS
...
--
KIT, Manual ACC (Not Illustrated) BS-316617GS
...
--
TRANSFORMER (Not Illustrated) BS-208106GS

Wiring Diagram - Transfer Switch

...

No Parts Available for this Schematic

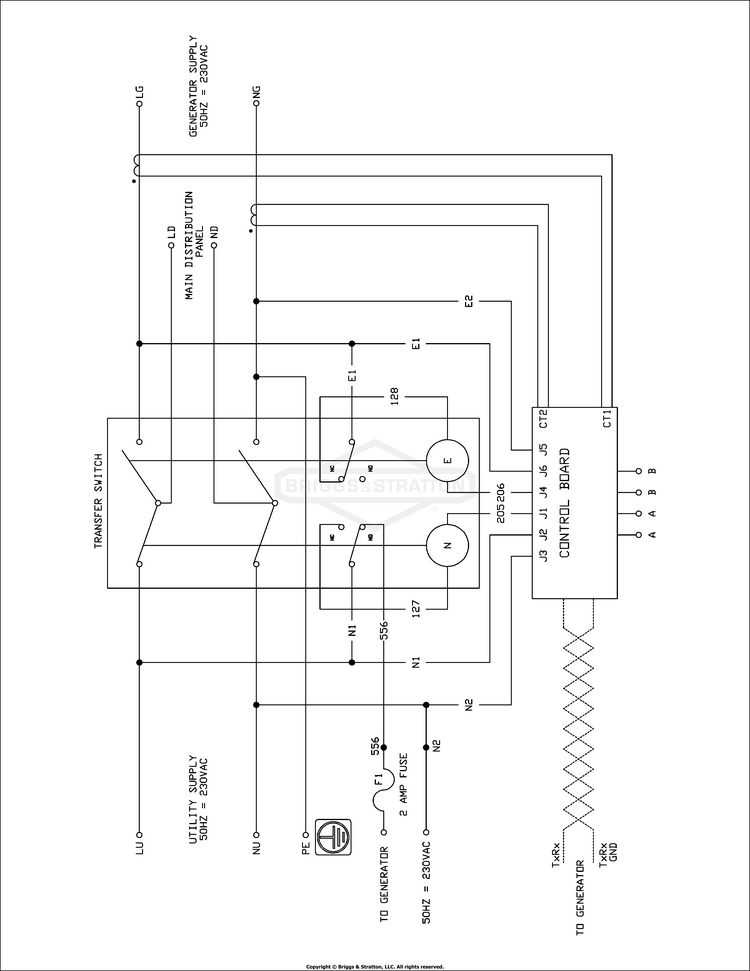

Wiring Schematic - Transfer Switch

...

No Parts Available for this Schematic

...
...
...
...
