product name

071058-01 Briggs and Stratton Transfer System Dual 200 Amp/Split 200 Amp Automatic Transfer Switch w/ACCM

Model: 071058-01

Save
 Don't See Your Part Listed?

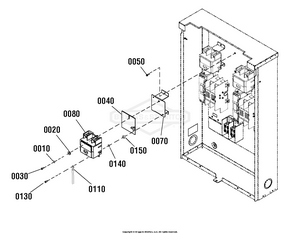

product name

Optional Accessory - Circuit Breaker Group

...
...
0040
INSULATION BS-192879GS
...
0070
BRACKET BS-314880GS
...
0080
BREAKER, Circuit, 200A (Connect to Generator Power) BS-318878GS
...
0110
WIRE BS-314323GS

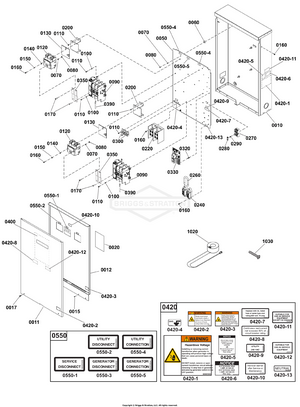

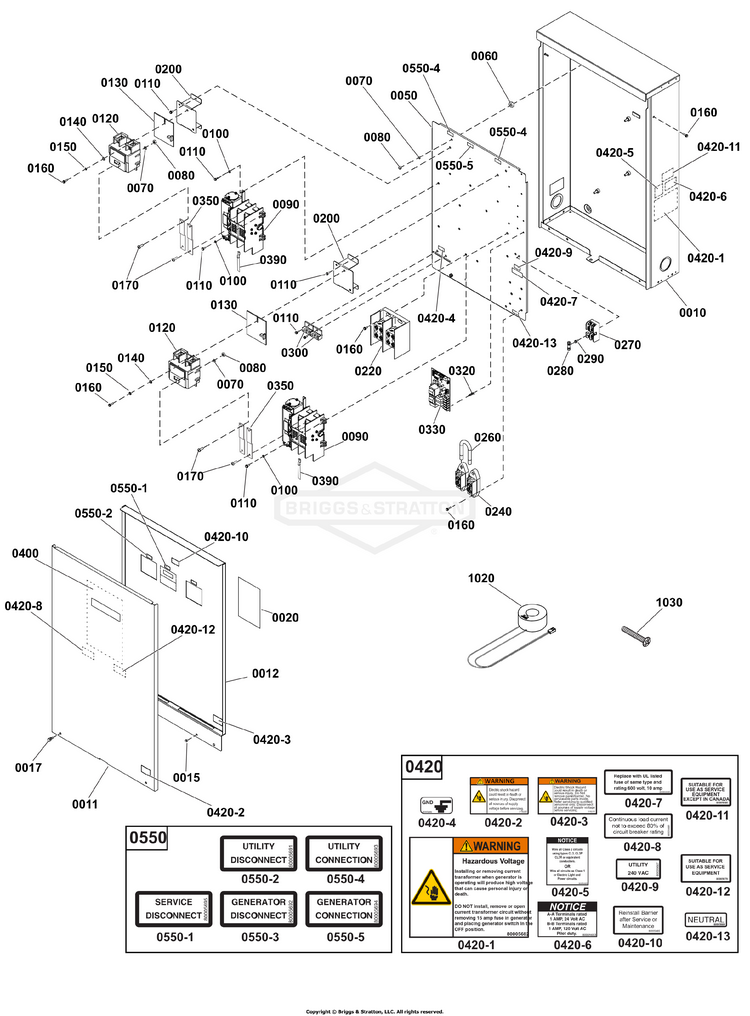

Transfer Switch

...
...
0010
ENCLOSURE BS-313251GS
...
0011
DOOR BS-313347GS
...
0012
PANEL BS-706784
...
0017
SCREW BS-315108GS
...
0020
INSULATION BS-193664GS
...
0050
BACK PANEL BS-313885GS
...
0060
NUT, 3/8-16 BS-22241GS
...
0090
CONTACTOR, 200A BS-315050GS
...
0120
BREAKER, Circuit, 200A BS-192065GS
...
0130
INSULATOR BS-192879GS
...
0200
BRACKET BS-314880GS
...
0220
TERMINAL BS-706845
...
0240
TERMINAL (Incl. Ref. No. 0160 and bonding screw) BS-192696GS
...
0260
WIRE BS-314877GS
...
0270
HOLDER, Fuse BS-192151GS
...
0280
FUSE BS-205110GS
...
0300
TERMINAL, GROUND BS-84006973
...
0320
SPACER BS-197979GS
...
0330
BOARD-CIRCUIT BS-771701
...
0350
BAR, Buss BS-709512
...
0390
WIRE BS-314324GS
...
0400
DECAL BS-709513
...
0420
DECAL SHEET- WARNINGS (Includes all parts shown in box) BS-704420
...
0550
DECAL SHEET - CONNECTIONS (Includes all parts shown in box) BS-705423
...
1020
KIT, Manual ACC (Includes all parts shown in box) BS-709507
...
1020-1
TRANSFORMER BS-208106GS
...
1020-2
SCREW, Bonding BS-193306GS
...
--
DECAL, Power Delay Notice (Optional Accessory) BS-317609GS
...
--
KIT, Circuit Breaker (Optional Accessory) BS-6310
...
...
...
...
