071054-00 Briggs and Stratton Transfer System 200 Amp Automatic Transfer Switch

Model: 071054-00

Save
 Part Not Listed?Part Not Listed?
product name

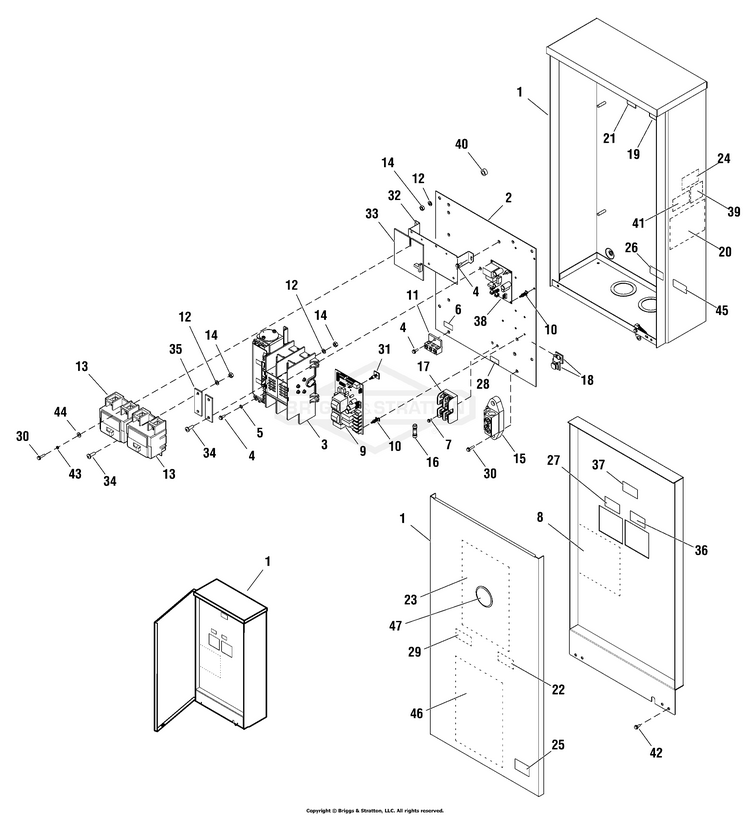

Transfer Switch - Hinged Enclosure

...
...
3
CONTACTOR, 200A BS-315050GS
...
6
DECAL SHEET, WARNINGS BS-705920
...
8
INSULATION BS-193664GS
...
9
BOARD-CIRCUIT BS-771701
...
10
SPACER BS-197979GS
...
11
TERMINAL, GROUND BS-84006973
...
13
BREAKER, Circuit, 200A BS-192065GS
...
15
TERMINAL (Incl. Ref. No. 30 and bonding screw) BS-192696GS
...
16
FUSE BS-205110GS
...
17
HOLDER, Fuse BS-192151GS
...
18
CLIP BS-197355GS
...
19
DECAL BS-B5107GS
...
20
DECAL BS-205478GS
...
21
DECAL BS-B5106GS
...
22
DECAL BS-192558GS
...
23
DECAL BS-311306GS
...
24
DECAL BS-202760GS
...
25
DECAL BS-205395GS
...
26
DECAL BS-205115GS
...
27
DECAL BS-202758GS
...
28
DECAL SHEET-WARNINGS BS-704418
...
29
DECAL BS-193450GS
...
31
STANDOFF BS-202841GS
...
32
BRACKET BS-204428GS
...
33
INSULATOR BS-192879GS
...
35
BAR-BUS BS-319267GS
...
36
DECAL BS-202361GS
...
37
DECAL SHEET-WARNINGS BS-704420
...
38
BOARD, Circuit BS-310443GS
...
39
DECAL SHEET-WARNINGS BS-704420
...
40
NUT, 3/8"-16 BS-22241GS
...
41
DECAL SHEET-WARNINGS BS-704420
...
45
DECAL SHEET - LCG BS-705919
...
46
DECAL BS-205061GS
...
47
DECAL BS-209644GS
...
--
SCREW, Bonding, 1/4-20 X 1 3/4" (Not Illustrated) BS-84007447
...
--
DECAL, Service Disconnect (Not Illustrated) BS-193551GS
...
--
MANUAL, Operator (Not Illustrated) BS-315229GS
...
--
MANUAL, Install (Not Illustrated) BS-315230GS
...
--
SCREW, Bonding, 1/4-20 X 1 3/4" (Not Illustrated) BS-84007447
...
--
TRANSFORMER (Not Illustrated) BS-208106GS
...
--
WIRE (Not Illustrated) BS-192242UGS
...
--
WIRE (Not Illustrated) BS-192242VGS
...
--
DECAL, Power Delay Notice (Optional Accessory) BS-317609GS
