071049-01 Briggs and Stratton Transfer System 200 Amp Automatic Transfer Switch

Model: 071049-01

Save
Part Not Listed?Part Not Listed?

product name

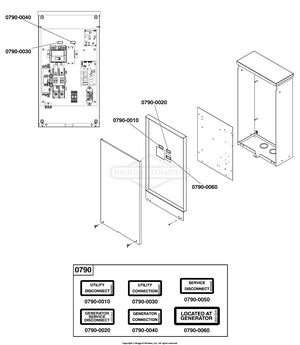

Decals Group - ATS Connections (Used After Serial No. 1022699088 and Before Serial No. 1022004848)

...
...
0790
DECAL SHEET - CONNECTIONS (Includes items 0790-0010 thru 0790-0060) BS-705423

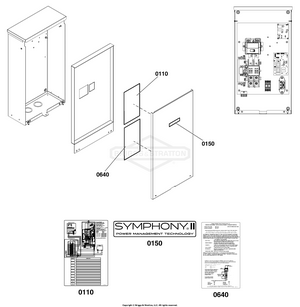

Decals Group - ATS Informational (Used After Serial No. 1022699088)

...
...
0110
DECAL, Wiring BS-311306GS

...
0150
DECAL, Symphony II BS-770606

...
0640
DECAL, Transfer Switch, 200 Amp BS-709510

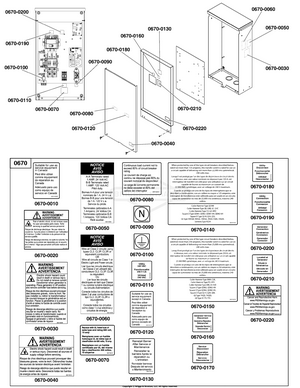

Decals Group - ATS Warning (Used After Serial No. 1022004847)

...
...
0670
DECAL SHEET - WARNINGS (Includes items 0670-0010 thru 0670-0220) BS-770133

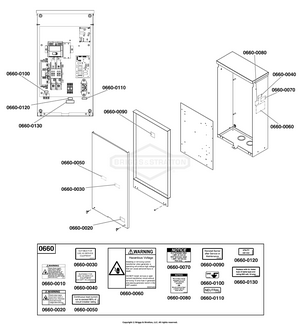

Decals Group - ATS Warning (Used After Serial No. 1022699088 and Before Serial No. 1022004848)

...
...
0660
DECAL SHEET - WARNINGS (Includes items 0660-0010 thru 0660-0130) BS-704420

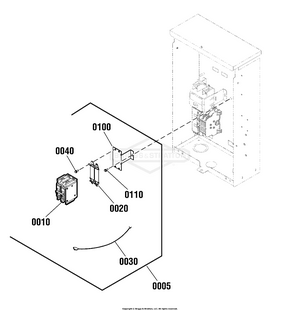

Optional Accessory - Circuit Breaker Group

...
...
0005
KIT, Circuit Breaker (Includes all parts shown on page) BS-6309

...
0010
BREAKER, Circuit, 100A BS-311318GS

...
0020
BRACKET BS-192770GS

...
0030
CABLE, Transfer Switch to Generator Circuit Breaker, 4 AWG Black BS-704240

...
0100
BRACKET, Mounting (Use as required) BS-770436

...
0110
SCREW, Trilobular, #10-32 x 1/2 (Use as required) BS-200020GS

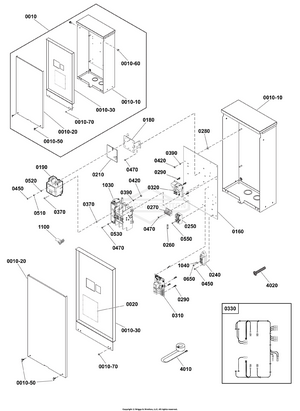

Transfer Switch - Hingeless Enclosure

...
...
0010-20
DOOR (Includes Decals) BS-770438

...
0010-50

...
0010-60
TRILOBULAR, #10-32 x 3/4 BS-24679GS

...
0010-70

...
0020
INSULATION, Dead Front BS-193664GS

...
0180
BRACKET BS-770433

...
0190
BREAKER, Circuit, 200A BS-192065GS

...
0210
INSULATION, Circuit Breaker BS-192879GS

...
0240
TERMINAL, Neutral (Incl. Ref. Nos. 0450, 4020) BS-192696GS

...
0250
FUSE HOLDER, 30 Amp 2P BS-192151GS

...
0260
FUSE, 10 Amp 600v BS-205110GS

...
0270

...
0280
NUT, HEX, 3/8-16 BS-703577

...
0290
SPACER, PCB Board, 1/2" BS-197979GS

...
0310
BOARD-CIRCUIT BS-771701

...
0320
BOARD, Circuit BS-310443GS

...
0330
HARNESS, Wiring, ATS BS-201285GS

...
0390

...
0420
NUT, Hex, 1/4-20 BS-22127GS

...
0450
TRILOBULAR, #10-32 x 3/4 BS-24679GS

...
0470
SCREW, Trilobular, #10-32 x 1/2 BS-200020GS

...
0510
WASHER, Lock, #10 BS-22152GS

...
0520
WASHER, Rivet, 3/16 BS-1910531SM

...
0530

...
0550
SCREW, Hex Head, Trilobular, #6-32 x 3/8 BS-192730GS

...
1030
CONTACTOR, 200A BS-315050GS

...
1040
ADAPTER, Male Disconnect BS-74138GS

...
4010
TRANSFORMER BS-208106GS

...
4020
SCREW, Bonding, 1/4-20 X 1 3/4" BS-84007447

...
--
DECAL, Power Delay Notice (Optional Accessory - Not Included) BS-317609GS

...
--
KIT, Circuit Breaker (Optional Accessory - Not Included) BS-6309
