071039-0 Briggs and Stratton Transfer System 100 Amp Automatic Transfer Switch 50/60HZ w/ACCM2

Model: 071039-0

Save
 Part Not Listed?Part Not Listed?
product name

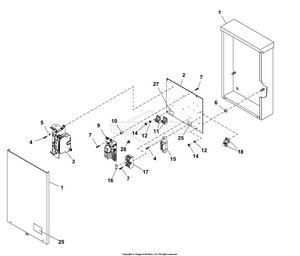

Transfer Switch

...
...
3
CONTACTOR, 100A BS-314865GS
...
6
NUT, 3/8"-16 BS-22241GS
...
9
BOARD-CIRCUIT BS-771701
...
10
NUT, 3/8"-16 BS-22241GS
...
11
TERMINAL, GROUND BS-84006973
...
15
TERMINAL (Incl. Ref. No. 4 and bonding screw) BS-192696GS
...
16
FUSE BS-205110GS
...
17
HOLDER, Fuse BS-192151GS
...
18
CLIP BS-197355GS
...
25
DECAL BS-206991GS
...
27
DECAL SHEET, WARNINGS BS-705920
...
28
SUPPORT BS-202420GS
...
--
KIT, Manual/ACC (Not Illustrated) BS-312838GS
...
--
MANUAL, Operator (Not Illustrated) BS-206620GS
...
--
TRANSFORMER (Not Illustrated) BS-208106GS

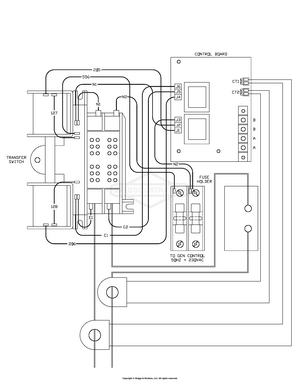

Wiring Diagram - Transfer Switch

...

No Parts Available for this Schematic

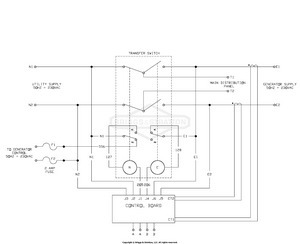

Wiring Schematic - Transfer Switch

...

No Parts Available for this Schematic

...
...
...
