071037-0 Briggs and Stratton Transfer System 100 Amp Automatic Transfer Switch 50/60HZ w/ACCM2

Model: 071037-0

Save
 Don't See Your Part Listed?
product name

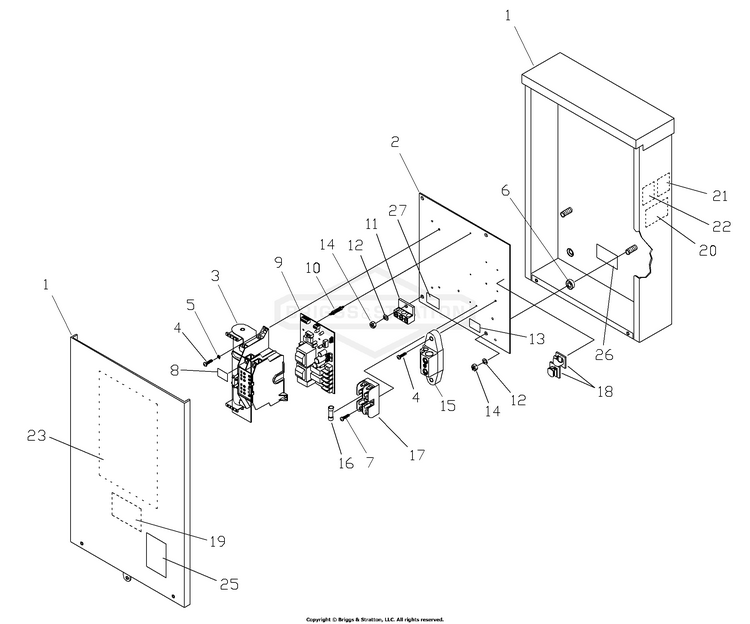

Transfer Switch

...
...
3
CONTACTOR, 100A BS-314865GS
...
6
NUT, 3/8"-16 BS-22241GS
...
8
DECAL SHEET-WARNINGS BS-704420
...
9
BOARD, Circuit BS-204423GS
...
10
SPACER BS-201685GS
...
11
TERMINAL, GROUND BS-84006973
...
13
DECAL SHEET-WARNINGS BS-704418
...
15
TERMINAL, Neutral (Incl. Ref. No. 4 and bonding screw) BS-192696GS
...
16
FUSE BS-205110GS
...
17
FUSE HOLDER BS-192151GS
...
18
CLIP, Latching Wire BS-197355GS
...
19
DECAL, APPVD CB BS-192165GS
...
20
DECAL BS-205478GS
...
21
DECAL, Contacts Rating BS-197294GS
...
22
DECAL SHEET-WARNINGS BS-704420
...
23
DECAL, 100A, ATS BS-196522GS
...
25
DECAL, Warning Shock BS-190992GS
...
26
DECAL, Fuse BS-190984GS
...
27
DECAL, Ground BS-B4986GS
...
--
CURRENT TRANSFORMER (Not Illustrated) BS-195728GS
...
--
MANUAL, Operator (Not Illustrated) BS-205439GS
...
--
KIT, Manual/ACC (Not Illustrated) BS-205438GS

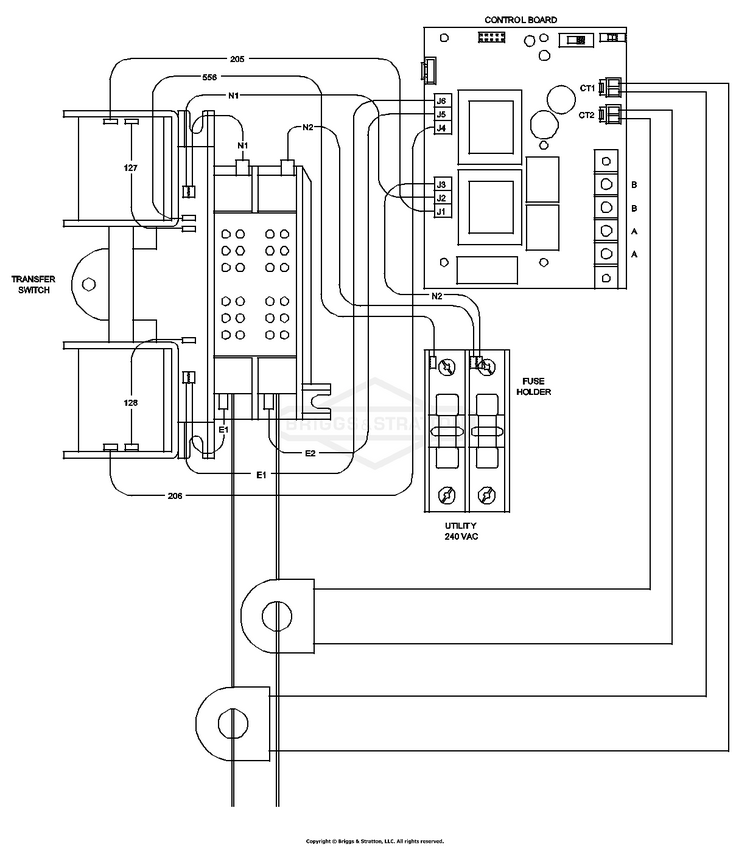

Wiring Diagram - Transfer Switch

...

No Parts Available for this Schematic

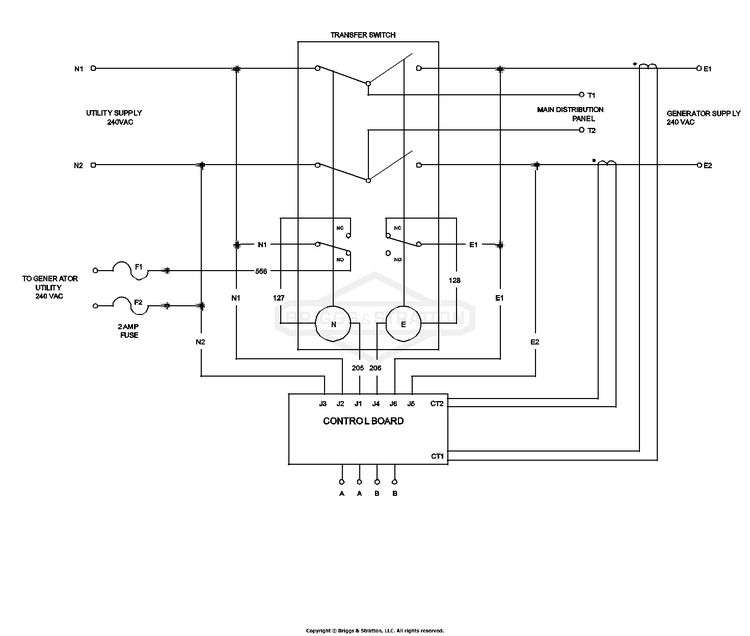

Wiring Schematic - Transfer Switch

...

No Parts Available for this Schematic

...
...
...
...
