071036-00 Briggs and Stratton Transfer System 200 Amp Automatic Transfer Switch

Model: 071036-00

Save
 Part Not Listed?Part Not Listed?
product name

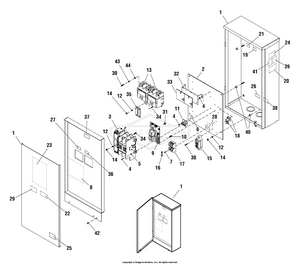

Transfer Switch - Hinged Enclosure

...
...
3
CONTACTOR, 200A BS-315050GS
...
6
DECAL SHEET, WARNINGS BS-705920
...
8
INSULATION, Dead Front BS-193664GS
...
9
BOARD-CIRCUIT BS-771701
...
10
SPACER, PCB Board, 1/2 BS-197979GS
...
11
TERMINAL, GROUND BS-84006973
...
13
BREAKER, Circuit, 200A BS-192065GS
...
15
TERMINAL, Neutral (Incl. Ref. No. 30 and bonding screw) BS-192696GS
...
16
FUSE BS-205110GS
...
17
HOLDER, Fuse BS-192151GS
...
18
CLIP, Latching Wire BS-197355GS
...
19
DECAL, Connect Gen BS-B5107GS
...
20
DECAL, CT Warning BS-205478GS
...
21
DECAL, Connection, Utility BS-B5106GS
...
22
DECAL, Suit. as Service Equip. BS-192558GS
...
23
DECAL, 200A, ATS BS-205061GS
...
24
DECAL, Not Suitable BS-202760GS
...
25
DECAL, Warning Shock BS-205395GS
...
26
DECAL, Fuse BS-205115GS
...
27
DECAL, Disconnect Utility BS-202758GS
...
28
DECAL SHEET-WARNINGS BS-704418
...
29
DECAL, Breaker, Circuit BS-193450GS
...
31
STANDOFF BS-202841GS
...
32
BRACKET, Circuit Breaker Mounting BS-204428GS
...
33
INSULATOR, Circuit Breaker BS-192879GS
...
35
BAR-BUS BS-319267GS
...
36
DECAL, Gen Disconnect BS-202361GS
...
37
DECAL SHEET-WARNINGS BS-704420
...
38
DECAL SHEET - LCG BS-705919
...
39
DECAL SHEET-WARNINGS BS-704420
...
40
NUT, 3/8"-16 BS-22241GS
...
41
DECAL SHEET-WARNINGS BS-704420
...
--
SCREW, Bonding, 1/4-20 X 1 3/4" (Not Illustrated) BS-84007447
...
--
DECAL, Service Disconnect (Not Illustrated) BS-193551GS
...
--
SCREW, Bonding, 1/4-20 X 1 3/4" (Not Illustrated) BS-84007447
...
--
MANUAL, Operator's (Not Illustrated) BS-209951GS
...
--
TRANSFORMER (Not Illustrated) BS-208106GS
...
--
WIRE (Not Illustrated) BS-192242UGS
...
--
WIRE (Not Illustrated) BS-192242VGS

Wiring Diagram - Transfer Switch

...

No Parts Available for this Schematic

Wiring Schematic - Transfer Switch

...

No Parts Available for this Schematic

...
...
...
