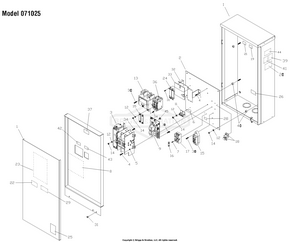

071025-0 Briggs and Stratton Transfer System 200 Amp Automatic Transfer Switch w/ACCM2-SED

Model: 071025-0

Save
 Part Not Listed?Part Not Listed?
product name

Transfer Switch

...
...
1
ASSY, Enclosure BS-~NSP
...
2
BACK PANEL BS-~NSP
...
3
CONTACTOR, 200A BS-315050GS
...
6
DECAL, Ground BS-B4986GS
...
8
INSULATION, Dead Front BS-193664GS
...
9
CONTROL, Board BS-197279GS
...
10
SPACER, PCB Board, 1/2" BS-197979GS
...
11
TERMINAL, GROUND BS-84006973
...
13
BREAKER Circuit, 200A BS-192065GS
...
15
TERMINAL, Neutral (Incl. Ref. No. 30 and bonding screw) BS-192696GS
...
16
FUSE BS-205110GS
...
17
FUSE HOLDER BS-192151GS
...
18
CLIP, Latching Wire BS-197355GS
...
19
DECAL, Connect Gen BS-B5107GS
...
20
DECAL, CT Warning BS-196355GS
...
21
DECAL, Connection, Utility BS-B5106GS
...
22
DECAL, Suit. as Service Equip. BS-192558GS
...
23
DECAL, 200A, ATS BS-200012GS
...
24
BRACKET, Circuit Breaker BS-192770GS
...
25
DECAL, Warning Shock BS-190992GS
...
26
DECAL, Fuse BS-190984GS
...
28
DECAL SHEET-WARNINGS BS-704418
...
29
DECAL, Breaker, Circuit BS-193450GS
...
32
BRACKET, Crct Brkr Mntng BS-201157GS
...
33
INSULATOR, Circuit Breaker BS-192879GS
...
35
BAR-BUS BS-319267GS
...
36
BREAKER, Circuit, 100A BS-311318GS
...
37
DECAL SHEET-WARNINGS BS-704420
...
39
DECAL, Contacts Rating BS-197294GS
...
40
NUT, 3/8"-16 BS-22241GS
...
41
DECAL SHEET-WARNINGS BS-704420
...
42
DECAL, Disconnect Utility BS-202758GS
...
43
DECAL, Gen Disconnect BS-202361GS
...
44
DECAL, Not Suitable BS-202760GS
...
45
SUPPORT, Locking, Crct Brd BS-202841GS
...
--
SCREW, Bonding, 1/4-20 X 1 3/4" BS-84007447
...
--
DECAL, Service Disconnect (Not Illustrated) BS-193551GS
...
--
MANUAL, Operator’s (Not Illustrated) BS-200010GS
...
--
CURRENT TRANSFORMER (Not Illustrated) BS-195728GS
...
--
ASSY, Wire, 6 Gauge (Not Illustrated) BS-192242TGS

Wiring Diagram - Transfer Switch

...

No Parts Available for this Schematic

Wiring Schematic - Transfer Switch

...
