071020-0 Briggs and Stratton Transfer System 100 Amp Automatic Transfer Switch w/ACCM2-MLD

Model: 071020-0

Save
 Part Not Listed?Part Not Listed?
product name

Automatic Transfer Switch

...
...

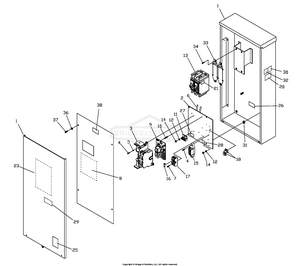

1
Assy, Enclosure BS-~NSP
...
2
Back Panel BS-~NSP
...
3
CONTACTOR, 100A BS-314865GS
...
6
Wire, Copper BS-193689GS
...
8
Insulation, Dead Front BS-193664GS
...
9
Control, Board BS-197279GS
...
10
Spacer BS-201685GS
...
11
TERMINAL, GROUND BS-84006973
...
13
BREAKER, Circuit, 100A BS-311318GS
...
15
Terminal, Neutral (Incl. Ref. No. 4 and bonding screw) BS-192696GS
...
16
FUSE BS-205110GS
...
17
Fuse Holder BS-192151GS
...
18
Clip, Latching Wire BS-197355GS
...
20
Decal, CT Warning BS-196355GS
...
21
Decal, Connection, Utility BS-B5106GS
...
23
Decal, 100A, ATS BS-196520GS
...
25
Decal, Warning Shock BS-205395GS
...
26
Decal, Fuse BS-190984GS
...
27
Decal, Ground BS-B4986GS
...
28
DECAL SHEET-WARNINGS BS-704418
...
29
Decal, Breaker, Circuit BS-193450GS
...
30
Decal, Contacts Rating BS-197294GS
...
31
NUT, 3/8"-16 BS-22241GS
...
32
DECAL SHEET-WARNINGS BS-704420
...
33
Bracket, Circuit Breaker BS-192770GS
...
38
DECAL SHEET-WARNINGS BS-704420
...
xx
Current Transformer BS-195728GS

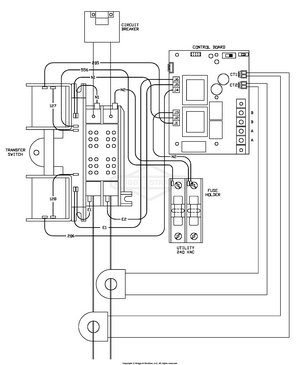

Wiring Diagram - Transfer Switch

...

No Parts Available for this Schematic

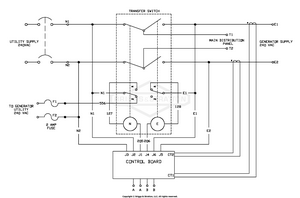

Wiring Schematic - Transfer Switch

...
