071019-0 Briggs and Stratton Transfer System 200 Amp Automatic Transfer Switch w/ACCM2

Model: 071019-0

Save
 Don't See Your Part Listed?
product name

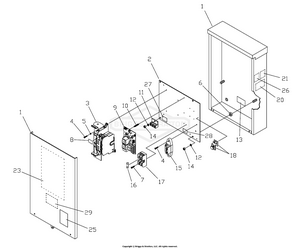

Automatic Transfer Switch

...
...
1
Enclosure, 22” x 16” x 7” BS-~NSP
...
2
Back Panel BS-~NSP
...
3
CONTACTOR, 200A BS-315050GS
...
6
NUT, 3/8"-16 BS-22241GS
...
8
DECAL SHEET-WARNINGS BS-704420
...
9
Control, Board BS-197279GS
...
10
Spacer BS-201685GS
...
11
TERMINAL, GROUND BS-84006973
...
13
Decal, Fuse BS-190984GS
...
15
Terminal, Neutral (Incl. Ref. No. 4 and bonding screw) BS-192696GS
...
16
FUSE BS-205110GS
...
17
Fuse Holder BS-192151GS
...
18
Clip, Latching Wire BS-197355GS
...
20
Decal, CT Warning BS-196355GS
...
21
Decal, Contacts Rating BS-197294GS
...
23
Decal, 200A, ATS BS-196523GS
...
25
Decal, Warning Shock BS-205395GS
...
26
DECAL SHEET-WARNINGS BS-704420
...
27
Decal, Ground BS-B4986GS
...
28
DECAL SHEET-WARNINGS BS-704418
...
29
Decal, APPVD CB BS-192166GS
...
xx
Current Transformer Items Not Illustrated BS-195728GS

Wiring Diagram - Transfer Switch

...

No Parts Available for this Schematic

Wiring Schematic - Transfer Switch

...

No Parts Available for this Schematic

...
...
...
...
