071009-1 Briggs and Stratton Transfer System 200 Amp Automatic Transfer Switch w/ACCM NEMA1

Model: 071009-1

Save
 Don't See Your Part Listed?
product name

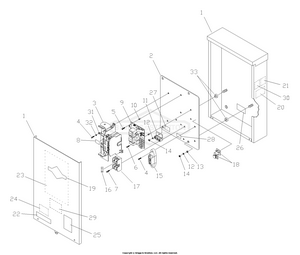

Transfer Switch

...
...
1
ENCLOSURE, 22" x 16" x 7" BS-~NSP
...
2
BACK PANEL BS-~NSP
...
3
CONTACTOR, 200A BS-315050GS
...
8
DECAL SHEET-WARNINGS BS-704420
...
9
BOARD-CIRCUIT BS-200429GS
...
10
SPACER, Nylon #6 - 32 BS-196353GS
...
11
TERMINAL, GROUND BS-84006973
...
15
TERMINAL, Neutral (Incl. Ref. No. 4 and bonding screw) BS-192696GS
...
16
FUSE BS-205110GS
...
17
FUSE HOLDER BS-192151GS
...
18
CLIP, Latching Wire BS-197355GS
...
19
DECAL, B & S Logo BS-198136GS
...
20
DECAL, CT Warning BS-196355GS
...
21
DECAL, Contacts Rating BS-197294GS
...
22
DECAL, Intelligen Logo BS-198615GS
...
23
DECAL, 200A,ATS BS-196523GS
...
24
DECAL, UL Listed,ATS BS-~NSP
...
25
DECAL,Warning Shock BS-190992GS
...
26
DECAL, Fuse BS-190984GS
...
27
DECAL, Ground BS-B4986GS
...
28
DECAL SHEET-WARNINGS BS-704418
...
29
DECAL, APPVD CB BS-192166GS
...
30
DECAL SHEET-WARNINGS BS-704420
...
33
NUT, 3/8"-16 BS-22241GS
...
CURRENT TRANSFORMER Not Illustrated BS-195728GS

Wiring Diagram - Transfer Switch

...

No Parts Available for this Schematic

Wiring Schematic - Transfer Switch

...

No Parts Available for this Schematic

...
...
...
...
