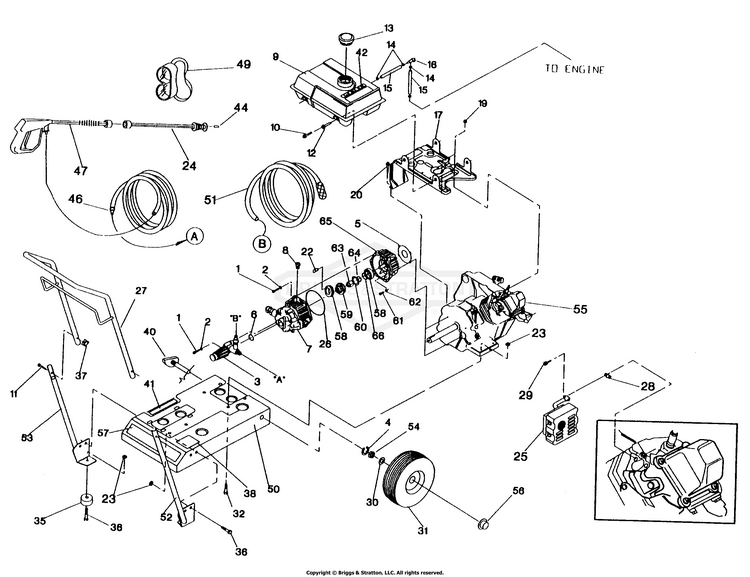

0602-0 Briggs and Stratton Pressure Washer 5,700 CP

Model: 0602-0

Back To Assemblies

Save Part Not Listed?
product name

Popular Parts

Popular Parts

Pressure Washer

...
...
1
SCREW BS-40945GS
...
2
M6 Ribbed Lock Washer BS-93873
...
3
Unloader Assembly BS-95212A
...
4
GEARBOX BS-84009471
...
5
GSKT, ADPTR, ENG BS-93871GS
...
6
SCREW BS-690904
...
7
1500 - 2000 Pump Assembly BS-95319A
...
8
Oil Breather Fill Cap BS-95454
...
9
1-1/2 Gallon Fuel Tank BS-94994A
...
10
M6-1.0 x 21 Shoulder Bolt BS-96001
...
11
BOLT, Carriage BS-31669GS
...
12
BSHNG, TANK BS-96002GS
...
13
CAP, Fuel Tank BS-846987
...
14
Hose Clamp BS-48031C
...
15
1/4" I.D. Fuel Hose BS-30340
...
16
VALVE, Fuel Shutoff BS-698180
...
17
220 Fuel Tank Cradle BS-95214
...
19
NUT-M6 FLANGE BS-52857GS
...
20
Screw, M8 1.25 x 15, Taptite BS-83512GS
...
22
SHOE, Piston Pivot BS-94944GS
...
23
NUT, Locking Hex M8 - 1.25 BS-52858GS
...
24
1.30 Dia. Nozzle Head BS-98539E
...
25
KIT, MFFLR & BRCKT, SRV BS-195002GS
...
26
O-RING, Crankcase BS-93790GS
...
27
HANDLE BS-98696GS
...
28
GASKET, Exhaust BS-89476GS
...
29
M8 x 20 Socket Head Capscrew BS-40976
...
30
WASHER, Flat BS-49808GS
...
31
ASSY., Wheel & Tire 10" BS-88521GS
...
32
HHCS, M8 - 1.25 x 35 BS-39414GS
...
35
MOUNT, Rubber Donut BS-87841GS
...
36
CAPSCREW M8-1.25X16 BS-703988
...
37
KNOB, Handle BS-97178GS
...
38
Important Decal BS-96414
...
40
AXLE, 12.7 X 106, ZNC PLT BS-93728AGS
...
41
Caution Decal (English) BS-96514
...
42
DECAL, DANGER, SPANISH BS-96685GS
...
44
NZZL, 1.30, O-RING REPL BS-99731GS
...
46
50 Ft. Hose BS-89634
...
47
KIT, GUN/CONN, RPLCMNT BS-189533GS
...
49
GOGGLES BS-87815GS
...
50
Mounting Base BS-96963
...
51
TUBE, FILTER, GNRL (Replacement) BS-92550GS
...
52
Tube Support Assembly-R.H. BS-98698A
...
53
Tube Support Assembly-L.H. BS-98698B
...
54
NUT BS-5025391FS
...
55
Generac Engine BS-ENG96256
...
56
PUSHNUT BS-194062GS
...
57
DECAL, BASE, 5700PSI BS-98822GS
...
58
ASSY, BRNG, RLLR, THRST, 81110 BS-96542GS
...
59
8mm Axial Cam Lift BS-96865
...
60
WSHR, THRUST BS-97570GS
...
61
CAPSCREW, Socket Head BS-23707GS
...
62
WASHER, Lock BS-92479GS
...
63
ADPTR, 3/4 SHAFT, HEX BS-95435GS
...
64
RETAINER, PUSH ON BS-95524GS
...
65
ADPTR, ENG, MCHND BS-96430AGS
...
66
C-RING, 40.8 ID X 2.16 DIA BS-97675GS
