0493-0 Briggs and Stratton Portable Generator GN 8,000 E

Model: 0493-0

Back To Assemblies

Save Part Not Listed?
product name

Popular Parts

Popular Parts

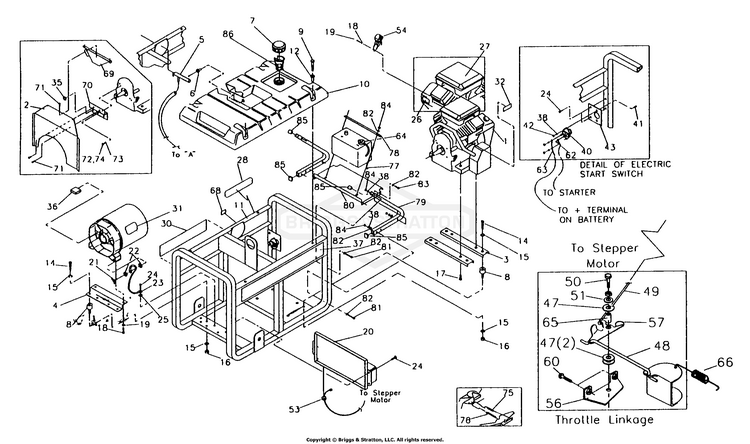

Cradle Drawing No. 98497

...
...
1
V-Twin Engine BS-85110
...
2
Heat Shield BS-98216
...
3
Engine Support BS-77304
...
4
SPPRT, ALT BS-78512GS
...
5
Kit, Valve BS-192980GS
...
6
Kit, Valve BS-192980GS
...
7
CAP, TANK, FUEL, KELCH, H60201 BS-99381GS
...
8
MNT, VBRTN, 30 DURO BS-35097GS
...
9
HHMS, M6-1.0 x 60 (BLACK) BS-78831BGS
...
10
ASSY, TANK, FUEL, TEST, 5 GAL BS-93615GS
...
11
CRDL, VTWIN BS-92558GS
...
12
GROMMET, TANK BS-83465GS
...
14
WHEEL ASSEMBLY BS-84010756
...
15
LOCKWASHER, SPLIT 3/8 BS-703454
...
16
DECAL, ProCut Z Text BS-5022241
...
17
SCREW-HEX WSHR HD TAP BS-2828635SM
...
18
CAPSCREW M8-1.25X16 BS-703988
...
19
WASHER, Lock BS-22129GS
...
20
Control Panel Assembly BS-98491
...
21
SCREW, M6-1.0 x 16 LG. WING BS-86494GS
...
23
WIRE, Ground BS-195373GS
...
24
SCREW BS-313085GS
...
25
WASHER, #10 Ext. Shakeproof BS-23762GS
...
26
Engine Decal BS-79661H
...
27
DECAL, AIR BOX, 16H VTW BS-77581GS
...
28
Start Instruction Decal BS-98819
...
30
DECAL, GN8-14K BS-98444GS
...
31
Data Plate Decal BS-98141
...
32
DECAL, Hot Muffler BS-77816GS
...
35
GROMMET, Rubber BS-62265GS
...
36
ASSEMBLY, POWER REGULATOR BS-84132GS
...
37
DECAL, UNIT, GEN, GN8000E BS-98383GS
...
38
CAP BS-5022097SM
...
40
Starter Switch BS-77282
...
41
BOLT, 1/4-20 X 3/4" G BS-5025010X6SM
...
42
1/4-20 Hex Nut BS-22127
...
43
BRACKET, STARTER SWITCH BS-78289GS
...
47
WASHER, Nylon BS-96716GS
...
48
LINKAGE, Stepper Motor to Bell Crank BS-95920GS
...
49
LINKAGE, Bell Crank to Throttle BS-95921GS
...
50
#10-32 x 3/4" Phillips Machine Screw BS-36935
...
51
WASHER, M5 BS-51713GS
...
52
WASHER, M5 Lock BS-49226GS
...
53
GROMMET, Rubber BS-62265GS
...
54
ASSY, Stepper Motor BS-96867GS
...
56
PLATE, Adjust BS-95349GS
...
57
BRACKET, Bell Crank BS-95348GS
...
60
M5-0.8 x 20 Phillips Screw BS-74041
...
62
ASSY, Wire BS-18253621GS
...
63
WIRE-A, 6AWG, RED, #13, 597MM BS-18353621GS
...
64
WIRE-A, 8AWG, BLK, #55, 597MM BS-18453621GS
...
65
SPACER BS-96378GS
...
66
Spring BS-963717
...
68
Fuel Shut Off Decal BS-73054
...
69
Heat Shield BS-93074
...
70
BRCKT, HTSHLD BS-98214GS
...
71
CRIMPTITE, 10-24 X 3/8 BS-56892GS
...
72
7/16-14 x 3/4" Bolt BS-26359
...
73
BUSHING, FLANGE, 7/8" BS-5022250SM
...
74
272 Loctite Thread Locker BS-86495
...
75
SPRING, GVRNR, 50HZ SEC BS-80877GS
...
76
SPRING, GVRNR, 50HZ PRI BS-70958GS
...
77
BOLT, J, BTTRY TRAY BS-99049GS
...
78
BRCKT, HLD DWN, BTTRY BS-99050GS
...
79
SPPRT, TRAY, BTTRY BS-99051GS
...
80
Battery Tray BS-98500
...
81
HHMS, M6-1.0 x 55 BS-57058GS
...
82
WASHER BS-49811GS
...
83
SCREW BS-38750GS
...
84
NUT, M6 BS-49813GS
...
85
CAP, Plug BS-81895GS
...
86
Fuel Filter Basket BS-66838B
