0490-0 Briggs and Stratton Portable Generator GN 6,500

Model: 0490-0

Save Part Not Listed?
product name

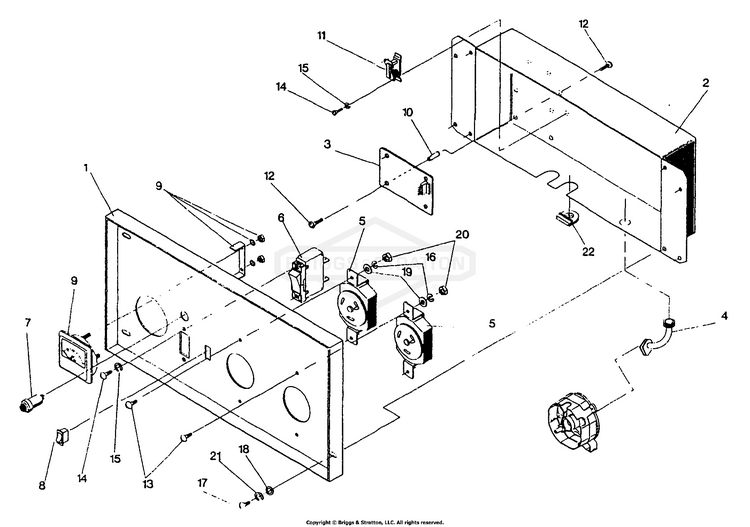

Control Panel Drawing No. 98528

...
...
1
Control Panel BS-96910
...
2
BOX, PNL, CNTRL, GN55-65 BS-98516GS
...
3
BRD, CRCT, SYS CNTRL BS-83970AGS
...
4
GROMMET, Rubber Connector BS-84134GS
...
5
250V. 30A. 3 Prong Locking Type Outlet BS-38253
...
6
Main On/Off C.B. 25A. BS-97895D
...
7
Lamp BS-97928
...
8
SWITCH, ROCKER, ON/OFF BS-87968GS
...
9
METER,Volt BS-98242GS
...
10
Stand-off Hex 3/4" Long BS-64525
...
11
TRANSFORMER, Idle Control BS-84028GS
...
12
Self Tapping #6-32 x 3/8" Screw BS-64526
...
13
M4-0.7 x 16 Pan Head Screw BS-76055
...
14
SCREW, M3-0.5 x 10mm BS-43181GS
...
15
WASHER, M3 Lock BS-43182GS
...
16
M4 Lock Washer BS-22264
...
17
M5-0.8 x 12 Phillips Pan Head Screw BS-52749
...
18
WASHER, Rivet, 3/16 BS-1910531SM
...
19
WASHER BS-38150GS
...
20
NUT, M4-0.7 Hex BS-51715GS
...
21
WASHER, M5 Lock BS-49226GS
...
22
GROMMET, Rubber BS-84135GS

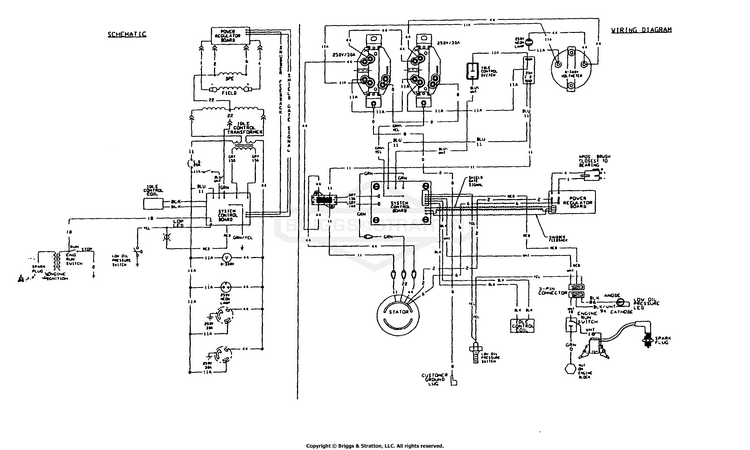

Electrical Data Drawing No. 98526

...

No Parts Available for this Schematic

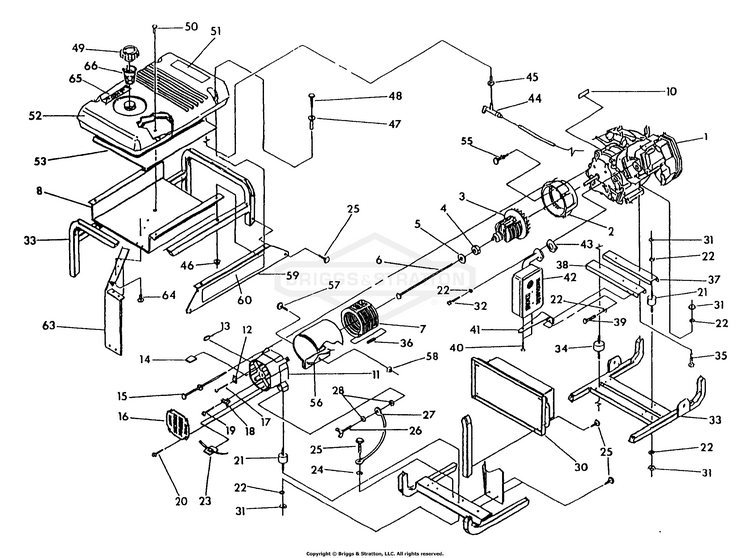

Generator Drawing No. 98527

...
...
1
GN-Engine BS-ENG98938
...
2
HOUSING, ENGINE ADAPTER BS-92247GS
...
3
ASSY, Rotor BS-92679GGS
...
4
BEARING BS-65791GS
...
5
M8 Flat Washer BS-67451
...
6
NUT BS-5025254FS
...
7
ASSY, STATOR, 5000VR140, 10A-BC BS-98514GS
...
8
Shield BS-92039
...
10
Data Decal BS-98141
...
11
CARRIER, Rear Bearing BS-SRV66825DGS
...
12
RECTIFIER, BATTERY CHARGE BS-65795GS
...
13
GROMMET, RUBBER BS-67022GS
...
14
ASSEMBLY, POWER REGULATOR BS-84132GS
...
15
BOLT, M6-1 x 145mm Stator BS-86308AGS
...
16
Rear Bearing Carrier Cover BS-67025
...
17
SCREW BS-66849AGS
...
18
ASSEMBLY, BRUSH HOLDER BS-66386GS
...
19
HHCS, M5-0.8 X 16 BS-49815GS
...
20
TAPTITE, M5-0.8 x 10 LG. BS-74908GS
...
21
MOUNT, VIBRATION BS-82857GS
...
22
WASHER, Lock BS-22129GS
...
23
MOUNT, CABLE TIE BS-57593GS
...
24
WASHER, SHAKE PROOF INT.# 10 BS-22769GS
...
25
SCREW BS-313085GS
...
26
SCREW, M6-1.0 x 16 LG. WING BS-86494GS
...
27
WIRE, Ground BS-195373GS
...
30
PNL, CNTRL, GN6500 BS-98523GS
...
31
NUT, 5/16-18 HEX BS-25244GS
...
32
M8-1.25 x 20mm Long S. Head Capscrew BS-40976
...
33
Cradle BS-92432
...
34
MOUNTS,Vibration BS-92609GS
...
35
BOLT, 5/16-18 X 1-3/4 BS-5025011X14SM
...
36
PIN, ROLL 4MM x 10 BS-81917GS
...
37
Engine Support BS-92531
...
38
SUPPORT, Eng/Muffler BS-N92731GS
...
39
MODULE BS-84009650
...
40
SCREW, M6-1 x 12 w/Lock Washer BS-66476GS
...
41
BRACKET, Muffler BS-92532GS
...
42
MUFFLER BS-A7433GS
...
43
GASKET, Exhaust BS-90239GS
...
44
Kit, Valve BS-192980GS
...
45
Kit, Valve BS-192980GS
...
46
NUT, FLANGE LOCK - M6 BS-77395GS
...
47
GROMMET, TANK BS-83465GS
...
48
HHMS, M6-1.0 x 60 (BLACK) BS-78831BGS
...
49
CAP, FUEL, THREAD VENT BS-95549GS
...
50
CLIP, INSULATION BS-85000GS
...
51
Start Instructions Decal BS-98819
...
52
Fuel Tank BS-92035
...
53
INSULATION, # 2-1/4" THICK BS-92665GS
...
55
HHMS, 5/16-24 x 3/4 LG. SEMS BS-86307GS
...
56
WRAP, ALT, 131 X 623LG BS-81887GGS
...
57
SCREW, M5 x 0.8 x 12 BS-52618GS
...
58
NUT, LOCKING-M5 BS-52856GS
...
59
Side Panel BS-92037
...
60
Side Panel Decal BS-98382
...
63
Head Shield BS-96068
...
64
CRIMPTITE, 10-24 x 1/2 BS-56893GS
...
65
Generac Decal BS-98818
...
66
Fuel Filter Basket BS-69659

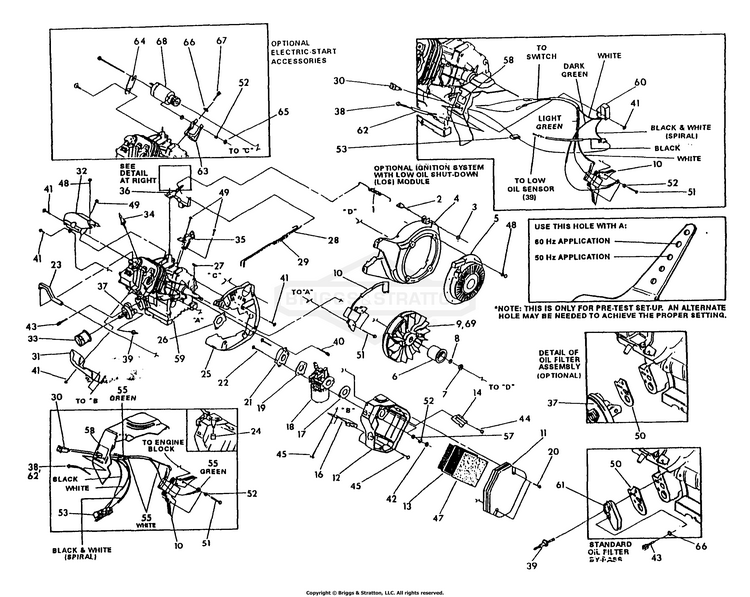

GN Engine Trim Parts Drawing No. 81654

...
...
1
SPACER, Park Brake BS-7073100SM
...
2
M5 Governor Adjust Bolt BS-83502
...
3
M5-0.8 Metal Lock Nut BS-83503
...
4
Blower Housing Assembly BS-92437
...
5
Recoil Assembly BS-95092
...
6
Recoil Cup BS-81641
...
7
Flywheel Hex Nut BS-67890
...
8
20 x 2.2 Bevel Washer BS-67198N
...
9
Flywheel Assembly BS-77147A
...
10
Ignition Coil Assembly BS-84542
...
11
Air Cleaner Cover BS-73104A
...
12
Air Cleaner Base w/Nuts BS-73108A
...
13
ELEMENT,Air Cleaner BS-73111GS
...
14
Spit Back Plate BS-91204
...
16
Air Box Bracket BS-90827
...
17
NUT BS-690279
...
18
NUT, Hex Nyloc, 10mm-1.50 BS-7091187SM
...
GN-Engine HS Carburetor BS-93302
...
19
Carburetor/Manifold Gasket BS-89228
...
20
Air Cleaner Cover Bolt BS-78609
...
21
HHCS 7/16F X2-1/4 BS-7091028YP
...
22
Carburetor Mounting Bolt BS-81647
...
23
BRKT ATTACHMENT BS-7072745YP
...
24
Choke Knob BS-83504
...
25
Blower Housing Backplate BS-73116A
...
Blower Housing Backplate with Knock Out Removed BS-73116C
...
26
WLN, #10C BS-7091039YP
...
27
Woodruff Key 4 x 190 BS-82774
...
28
Governor Control Rod BS-72735
...
29
Governor Anti-Lash Spring BS-72789
...
30
SWITCH, Run - Stop BS-78653GS
...
31
Bottom Wrapper BS-88434
...
32
Top Wrapper BS-88433
...
33
FILTER, Oil Optional BS-70185GS
...
34
PLUG, SPARK Champion l2YC BS-84007216
...
35
Governor Adjust With Idle Control Bracket BS-73101
...
36
Governor Lever Assembly BS-72734
...
37
SCREW MC Series BS-690369
...
38
Low Oil indicator Lamp BS-85272
...
39
4 PSI Low Oil Pressure Switch BS-77667
...
40
SCREW BS-40945GS
...
41
M6-1.0 x 10mm Taptite Qty. 8 w/LOS MOD. BS-45756
...
42
NUT, M6 BS-49813GS
...
43
M8-1.25 x 30mm Socket Head Capscrew BS-49821
...
44
08 x 0.37 Long Plastite BS-59635
...
45
SCREW, M6-1 x 12 w/Lock Washer BS-66476GS
...
47
Air Filter Pre-Cleaner BS-81646
...
48
M6-1.0 x 10mm Hex Head/LW Capscrew BS-81668
...
49
Screw, M8 1.25 x 15, Taptite BS-83512GS
...
50
Oil Filter Adaptor Gasket BS-86999
...
51
INSERT HX THRD 5/16 BS-7092079YP
...
52
CAP Qty. 6 w/Optional Electric Start BS-5022097SM
...
53
3-Pin Male Housing BS-84329
...
55
Ignition Wire Assembly BS-92981
...
57
WASHER BS-49811GS
...
58
LOS Engine Decal BS-93104
...
59
Long Block GN-Engine HS Taper Shaft Engine BS-90780A
...
WLN 1/4C BS-7090997YP
...
Long Block GN-Engine HS Taper Shaft Engine BS-90782A
...
Long Block GN-Engine HS Straight Shaft Engine BS-91001A
...
60
LOS Module BS-87221B
...
61
HANDLE UPPER BS-7072709YP
...
62
Sleeving BS-93611
...
63
Starter Mount Bracket BS-86260
...
64
BRCKT, SPPRT, STARTER BS-93922GS
...
65
1/4-20 Thread Hex Nut BS-22127
...
66
WASHER, Lock BS-22129GS
...
67
M8-1.25 x 20 Socket Head Capscrew BS-40976
...
68
"S" Engine Starter Motor BS-93487
...
69
Flywheel and Ring Gear Assembly BS-91222B
