0486-0 Briggs and Stratton Portable Generator GN 3,800

Model: 0486-0

Back To Assemblies

Save Part Not Listed?
product name

Popular Parts

Popular Parts

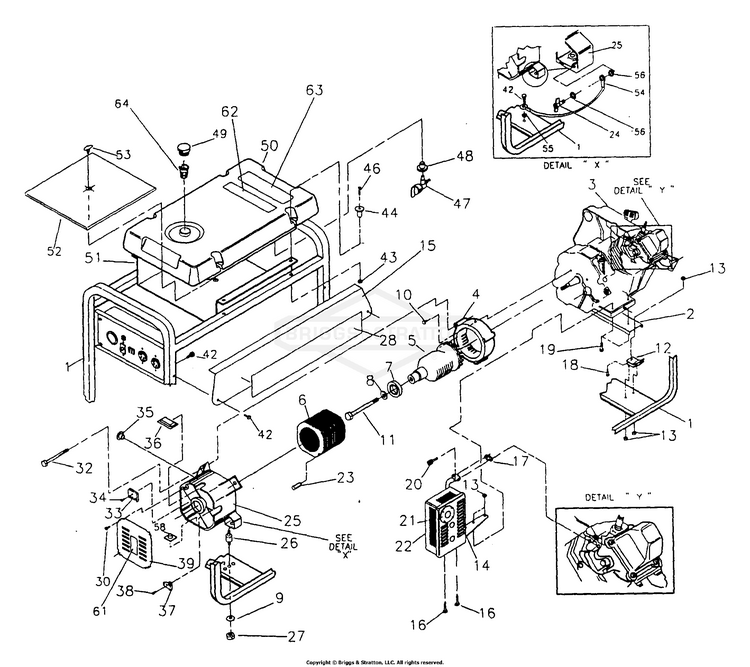

Generator

...
...
1
CRADLE BS-M197027GS
...
2
SUPPORT, Engine BS-B84021GS
...
3
6.5HP XL Engine BS-ENG98724
...
4
HOUSING, Engine Adapter BS-66365GS
...
5
Rotor Assembly BS-84141
...
6
Stator Assembly BS-98427
...
7
BEARING BS-65791GS
...
8
MS Flat Washer BS-67451
...
9
WASHER, Lock BS-22129GS
...
10
HHMS, 5/16-24 x 3/4 LG. SEMS BS-86307GS
...
11
FLOOR PLATE BS-5047480B
...
12
MOUNT, Vibration BS-84508GS
...
13
NUT, Locking Hex M8 - 1.25 BS-52858GS
...
14
BRACKET, Muffler BS-83208GS
...
15
(C) CLIP VINYL 3/8 BS-7091959YP
...
16
SCREW, M6-1 x 12 w/Lock Washer BS-66476GS
...
17
GASKET, Exhaust BS-89476GS
...
18
SCREW BS-70644GS
...
19
TPHMS, M8 - 1.25 x 35 BS-195398GS
...
20
M8-1.25 x 20 Socket Head Cap Screw BS-40976
...
21
SCREEN, Spark Arrest BS-83083GS
...
22
MUFFLER BS-83071GS
...
23
PIN, ROLL 4MM x 10 BS-81917GS
...
24
SCREW, M6-1.0 x 16 LG. WING BS-86494GS
...
25
Rear Bearing Carrier BS-66825B
...
26
MOUNT-VIBRATION BS-194153GS
...
27
SKID PLATE BS-5045771B
...
28
DECAL, PNL, SIDE, GN3800 BS-97924GS
...
30
TAPTITE, M5-0.8 x 10 LG. BS-74908GS
...
32
HHCS, M6 - 1.0 x 115 SEMS BS-86308GS
...
33
RECTIFIER, BATTERY CHARGE BS-65795GS
...
34
SCREW BS-66849AGS
...
35
GROMMET, RUBBER BS-67022GS
...
36
ASSEMBLY, POWER REGULATOR BS-84132GS
...
37
ASSEMBLY, BRUSH HOLDER BS-66386GS
...
38
HHCS, M5-0.8 X 16 BS-49815GS
...
39
Bearing Carrier Cover BS-67025
...
42
SCREW BS-313085GS
...
43
NUT, FLANGE LOCK - M6 BS-77395GS
...
44
GROMMET, TANK BS-83465GS
...
46
HHMS, M6-1.0 x 60 (BLACK) BS-78831BGS
...
47
Kit, Valve BS-192980GS
...
48
Kit, Valve BS-192980GS
...
49
CAP, FUEL, THREAD VENT BS-95549GS
...
50
Fuel Tank BS-83311
...
51
Heat Shield BS-84042
...
52
INSULATION BS-84687GS
...
53
CLIP, INSULATION BS-85000GS
...
54
WIRE, Ground BS-195373GS
...
55
WASHER, #10 Ext. Shakeproof BS-23762GS
...
58
MOUNT, CABLE TIE BS-57593GS
...
61
Data Decal BS-98141
...
62
Generac Decal BS-98818
...
63
Start Instruction Decal BS-98819
...
64
Fuel Filter Basket BS-69659
