0455-0 Briggs and Stratton Portable Generator 5,000 Watt

Model: 0455-0

Back To Assemblies

Save Part Not Listed?
product name

Popular Parts

Popular Parts

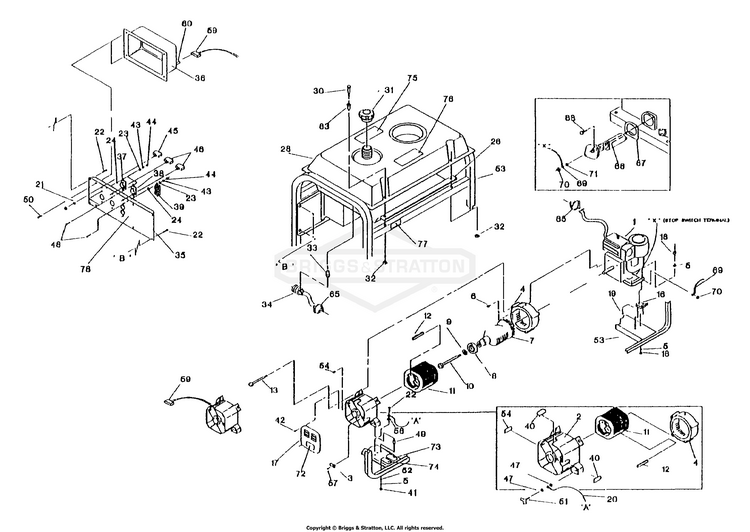

Power Plus 5000 Generator (10/95)

...
...
1
Engine -- Briggs & Stratton 10HP BS-91011
...
2
CARRIER, Rear Bearing BS-SRV66825DGS
...
3
Brush/Bridge Rectifier Assm. BS-91825
...
4
HOUSING, Engine Adapter BS-66365GGS
...
5
WASHER, Lock BS-22129GS
...
6
HHMS, 5/16-24 x 3/4 LG. SEMS BS-86307GS
...
7
Rotor Assembly BS-91844
...
8
BEARING BS-65791GS
...
9
Special Washer BS-67451
...
10
FLOOR PLATE BS-5047480B
...
11
Stator Assembly BS-91859
...
12
PIN, ROLL 4MM x 10 BS-81917GS
...
13
BOLT, Stator BS-86308CGS
...
16
MOUNT, Vibration 45°. BS-70642GS
...
17
Bearing Carrier Cover BS-67025
...
18
NUT, Locking Hex M8 - 1.25 BS-52858GS
...
19
PPHMS, M8 - 1.25 x 40 BS-76222GS
...
20
WIRE, Ground BS-195373GS
...
21
WASHER, 7/16" Int Lock BS-82881GS
...
22
SCREW BS-313085GS
...
23
WASHER BS-38150GS
...
24
TIRE ASSM, 24X12.00-1 BS-5023365YP
...
26
HTSHLD, SP-4000W BS-84324GS
...
28
5 gallon plastic Fuel Tank BS-77374
...
30
HHMS, M6-1.0 x 60 (BLACK) BS-78831BGS
...
31
Fuel Tank Cap BS-84582
...
32
NUT, FLANGE LOCK - M6 BS-77395GS
...
33
Kit, Valve BS-192980GS
...
34
PULLEY CATCHER HZT/ BS-7078298YP
...
35
Control Panel BS-81897
...
36
PANEL, Control, Back, Plastic BS-81919GS
...
37
OUTLET-120V TL30A BS-705932
...
38
OUTLET, 120/240V Locking, 20A BS-68867GS
...
39
OUTLET, Duplex, 120 V, 15 A BS-63025GS
...
40
GROMMET, Plastic RBC BS-84242GS
...
41
NUT, 5/16-18 HEX BS-25244GS
...
42
TAPTITE, M5-0.8 x 10 LG. BS-74908GS
...
43
#8 Lock Washer BS-22264
...
44
NUT, M4-0.7 Hex BS-51715GS
...
45
BREAKER-CIRCUIT 30A BS-706178
...
46
BREAKER, Circuit BS-75207DGS
...
48
M4-0.7 x 10mm Screw BS-75475
...
49
MOUNT, VIBRATION BS-82857GS
...
50
SCREW, Self Tapping, STC 3 x 18 BS-82308GS
...
51
SCREW, M6-1.0 x 16 LG. WING BS-86494GS
...
53
Cradle BS-93736
...
54
GROMMET, RUBBER BS-67022GS
...
56
WASHER, SHAKE PROOF INT.# 10 BS-22769GS
...
57
HHCS, M5-0.8 X 16 BS-49815GS
...
59
FASTEN, On Tab Housing 6P BS-22695GS
...
60
HOUSING, Receptacle BS-22694GS
...
63
GROMMET, TANK BS-83465GS
...
65
1/4" Hose Clamp BS-48031C
...
66
Low Oil Shutdown Switch BS-88977
...
67
Low Oil Gasket BS-91841
...
68
TAPTITE, #10-32 X 5/8 BS-32713GS
...
69
WIRE-A, 18AWG, BLK, 445MM BS-91842AGS
...
70
NUT, #8-32 (LOS assembly) BS-22471GS
...
71
TIRE ASSM, 24X12.00-1 (LOS switch) BS-5023365YP
...
72
CSA Decal BS-25717
...
73
DECAL, Ground, French BS-76247GS
...
74
DECAL, Neutral Ground BS-74728GS
...
75
DECAL, Danger, French BS-194984GS
...
76
SCREW BS-690341
...
77
Fuel Shut-off Decal BS-73054
...
78
Control Panel Decal BS-96602
