0415-0 Briggs and Stratton Portable Generator SV 2400

Model: 0415-0

Back To Assemblies

Save Part Not Listed?
product name

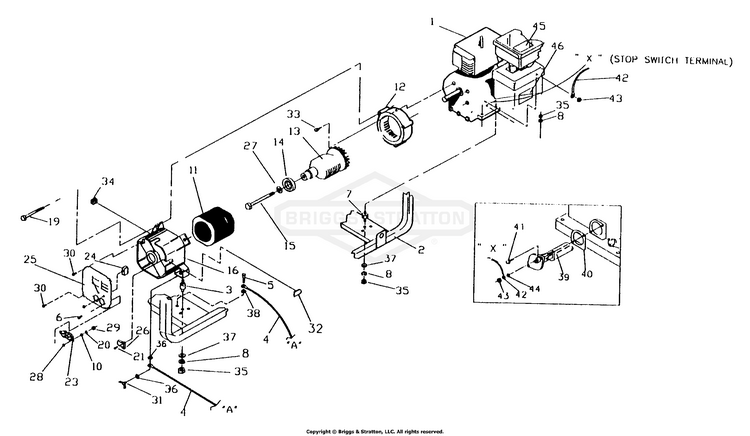

Generator SV 2400

...
...
1
Briggs & Stratton 5HP Engine BS-96297
...
2
Cradle Assembly BS-91018
...
3
MOUNT-VIBRATION BS-194153GS
...
4
WIRE, Ground BS-195373GS
...
5
SCREW BS-313085GS
...
6
M4-0.7 x 10 Pan Head Machine Screw BS-75475
...
7
MOUNT,Vibration BS-85651GS
...
8
WASHER, Lock BS-22129GS
...
10
WASHER BS-38150GS
...
11
LYNCH PIN 5/16 YZ BS-7091824YP
...
12
HSNG, ENG, FML BS-66365FGS
...
13
Rotor Assembly BS-91820
...
14
BEARING BS-65791GS
...
15
5/16"-24 x 6.25 Rotor Bolt BS-24420
...
16
Rear Bearing Carrier BS-66825B
...
19
HHCS, M6 - 1.0 x 85 SEMS BS-86308DGS
...
20
#8 Lock Washer BS-22264
...
21
HHCS, M5-0.8 X 16 BS-49815GS
...
23
OUTLET, 20A,120V BS-68759GS
...
24
BRKR, CRCT, 20A, 2P BS-77247GS
...
25
(C) WELD SEAT SUPPOR BS-7072092YP
...
26
Brush & Bridge Rectifier BS-91825
...
27
Flat Washer (Special) BS-67451
...
28
TIRE ASSM, 24X12.00-1 BS-5023365YP
...
29
NUT, M4-0.7 Hex BS-51715GS
...
30
TAPTITE, M5-0.8 x 10 LG. BS-74908GS
...
31
SCREW, M6-1.0 x 16 LG. WING BS-86494GS
...
32
GROMMET, Plastic RBC BS-84242GS
...
33
HHMS, 5/16-24 x 3/4 LG. SEMS BS-86307GS
...
34
GROMMET, RUBBER BS-67022GS
...
35
SKID PLATE BS-5045771B
...
38
WASHER, SHAKE PROOF INT.# 10 BS-22769GS
...
39
Low Oil Shut Down BS-88977
...
40
Low Oil Shut Down Gasket BS-91841
...
41
TRILOBULAR, #10-32 x 3/4 BS-24679GS
...
42
WIRE-A, 18AWG, BLK, 445MM BS-91842AGS
...
43
NUT, #8-32 BS-22471GS
...
44
TIRE ASSM, 24X12.00-1 BS-5023365YP
...
45
English Danger Decal BS-93639
...
46
Spanish Danger Decal BS-93640
