040495-01 Briggs and Stratton Generator 8,000 Watt Standby Generator

Model: 040495-01

Save Part Not Listed?
product name

Alternator Group

...
...
1
ADAPTER-ALTERNATOR BS-209599GS
...
2
ROTOR BS-201309GS
...
3
STATOR BS-704048
...
4
CARRIER-BEARING (with O-Ring) BS-193336GS
...
5
BOLT BS-66449LGS
...
6
BRUSH ASSEMBLY BS-66386GS
...
7
HHCS, M5-0.8 X 16 BS-49815GS
...
8
BEARING BS-65791GS
...
10
O-RING BS-189197GS

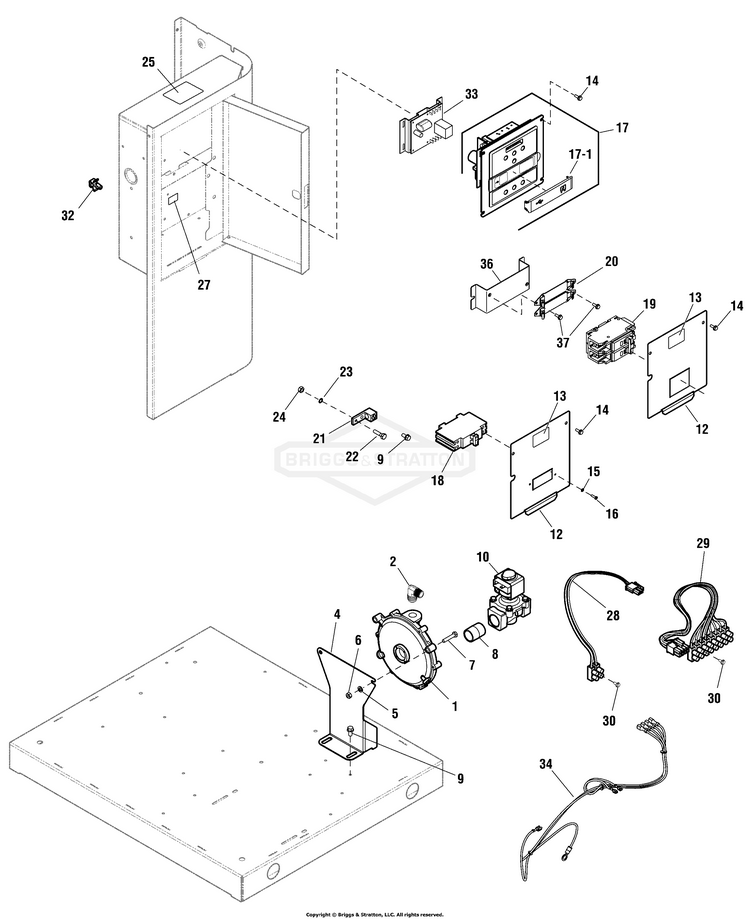

Control Panel Group

...
...
1
REGULATOR, FUEL BS-84012834
...
2
FITTING, Elbow, 1/2 Flare, 3/8 NPT BS-205955GS
...
4
BRACKET BS-706379
...
8
FITTING BS-206976GS
...
9
SCREW, HEX, 1/4-20X.5 BS-704130
...
10
SOLENOID, Fuel BS-318880GS
...
12
COVER-CONTROL BOX (Use on Model 040495-00) BS-B316856GS
...
12
COVER, Control Panel (Use on Model 040495-01) BS-706029
...
13
DECAL SHEET, Warnings BS-704046
...
14
SCREW, Trilobular, #10-32 x 1/2 BS-200020GS
...
15
WASHER, Shakeproof BS-23364GS
...
16
SCREW BS-36902GS
...
17
CONTROL PANEL (Includes Ref. No. 17-1) BS-319893GS
...
17-1
DOOR, Access BS-319009GS
...
18
BREAKER-CIRCUIT (Use on Model 040495-00) BS-704049
...
19
BREAKER, Circuit (Use on Model 040495-01) BS-706944
...
20
BRACKET, Mounting / Breaker (Use on Model 040495-01) BS-192770GS
...
21
LUG, Ground Connect BS-199011GS
...
23
WASHER, Ext. M6 - 1/4" Shakeproof BS-26850GS
...
25
DECAL SHEET, Warnings BS-704046
...
27
DECAL SHEET, Warnings BS-704046
...
28
HARNESS, Wiring BS-316812GS
...
29
HARNESS, Wiring, Control Panel BS-316813GS
...
30
SCREW, Taptite, M2.5-.45 X 12 BS-314691GS
...
32
MOUNT, Tie Wrap BS-195733GS
...
33
REGULATOR-VOLTAGE BS-707769
...
34
HARNESS-WIRING (AVR) BS-704223
...
36
BRACKET (Use on Model 040495-01) BS-706031
...
--
HARNESS-WIRING (Not Illustrated) BS-316811GS

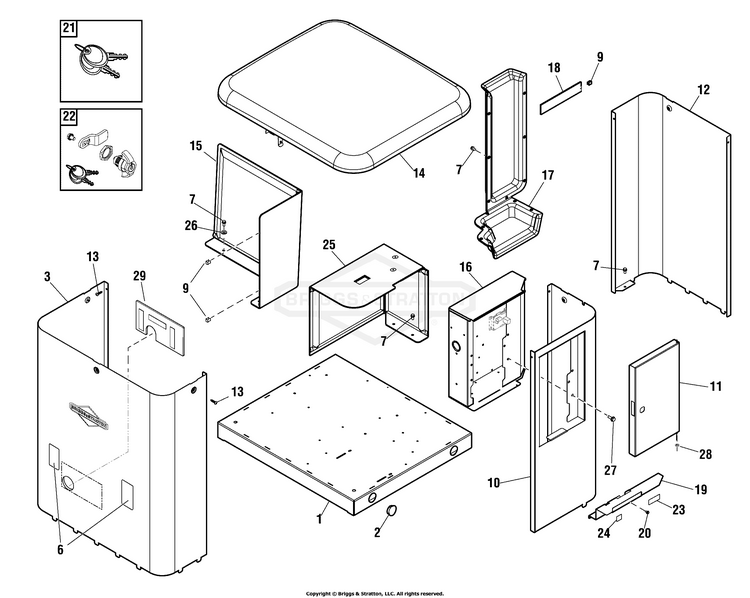

Enclosure Group

...
...
1
BASE BS-B316878GS
...
2
PLUG-HOLE BS-198460GS
...
3
PANEL-FRONT BS-AR316865GS
...
6
DECAL SHEET-WARNINGS BS-704046
...
7
SCREW, HEX, 1/4-20X.5 BS-704130
...
9
CLIP BS-314661GS
...
10
PANEL-RIGHT BACK BS-706383
...
11
DOOR ASSEMBLY BS-AR316870GS
...
12
PANEL-LEFT BACK BS-AR316859GS
...
13
SCREW, #10-16 X 5/8 BS-703884
...
14
ROOF BS-770010
...
15
DUCT-EXHAUST BS-316845GS
...
16
BOX-CONTROL PANEL BS-706026
...
17
DUCT-CONTROL BOX BS-316861GS
...
18
PANEL-DUCT BS-316862GS
...
19
DIVIDER-CONTROL BOX BS-316853GS
...
20
SCREW BS-194561GS
...
21
KEY-LATCH BS-207652GS
...
22
KIT-LATCH BS-204700GS
...
23
DECAL SHEET-WARNINGS BS-704046
...
24
DECAL SHEET-WARNINGS BS-704046
...
25
PANEL-BOX BS-703883
...
27
SCREW BS-200020GS
...
28
WASHER-NYLON BS-703929
...
29
PANEL-MUFFLER GUARD BS-316850GS

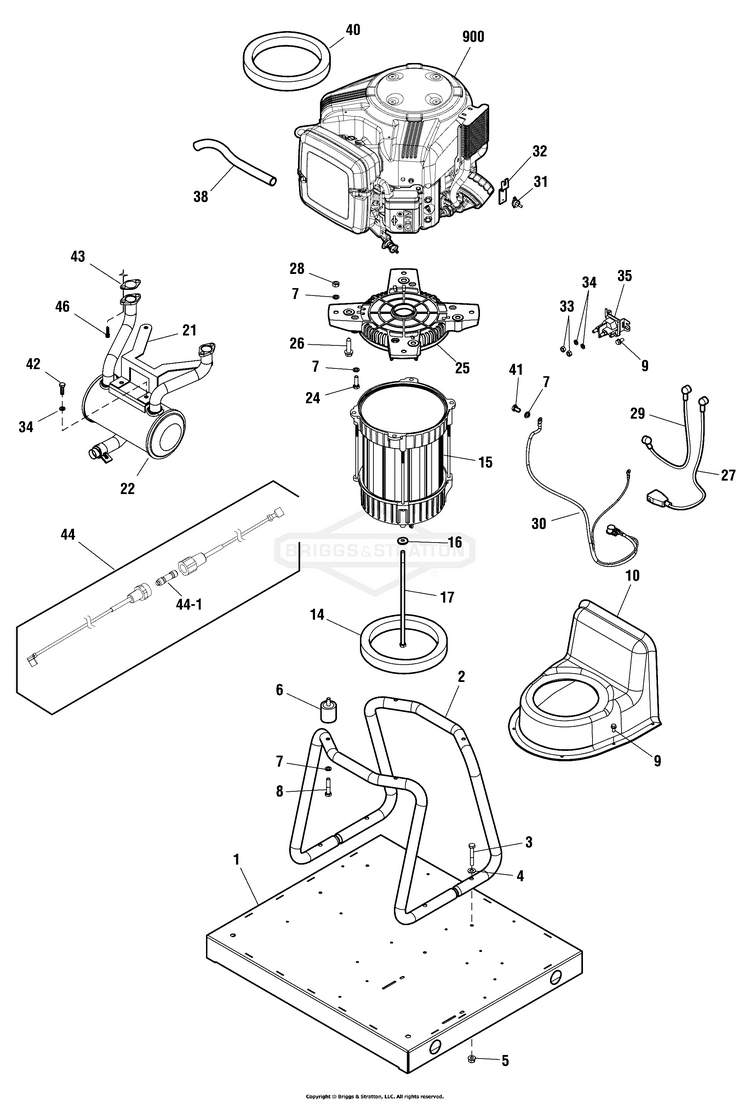

Main Unit Group

...
...
1
BASE BS-B316878GS
...
2
CRADLE BS-B316829GS
...
6
MOUNT-VIBRATION BS-189109GS
...
9
SCREW, HEX, 1/4-20X.5 BS-704130
...
10
DUCT BS-316846GS
...
14
SEAL BS-193061GS
...
16
WASHER BS-96796GS
...
17
BOLT BS-187365EGS
...
21
BRACKET-MUFFLER BS-200857GS
...
22
MUFFLER BS-316851GS
...
25
ADAPTER-ENGINE BS-196727GS
...
26
SCREW, HEX, 3/8-16 BS-704010
...
27
HARNESS-WIRING BS-316811GS
...
29
WIRE, Starter Solenoid BS-316814GS
...
30
WIRE, Battery, Negative BS-316817GS
...
31
SWITCH (Use on Model 040495-00) BS-195130GS
...
31
SWITCH (Use on Model 040495-01) BS-204426GS
...
32
PLATE-TEMP SWITCH BS-195124GS
...
35
SOLENOID, Starter BS-691656
...
38
HOSE, OIL DRAIN BS-5048681SM
...
40
SEAL BS-316881GS
...
43
GASKET, Exhaust BS-691613
...
44
HARNESS, Wire (Use on Model 040495-01) (Includes Ref. No. 44-1) BS-706025
...
44-1
FUSE BS-706030
...
46
SCREW BS-691902
...
900
ENGINE BS-3197750001E1
...
--
KIT, MANUAL, ACC. (Not Illustrated) BS-704047
...
--
HOSE-FLEX NG/LPG (Not Illustrated) BS-202295GS
...
--
STRAP-BATTERY TIEDOWN (Not Illustrated) BS-316869GS
...
--
DECAL SHEET-VOLTAGE (Not Illustrated) BS-319391GS
...
--
DECAL SHEET-WARNINGS (Not Illustrated) BS-704046
...
--
FUSE, Auto Type, 15 Amp (Not Illustrated) BS-84010838
...
--
HARNESS, FUEL CONVERSION (Not Illustrated) BS-316840GS
...
--
PAINT-TOUCHUP, TEXTURED CHARCOAL (Not Illustrated) BS-319693GS
...
--
PAINT-SPRAY, TEXTURED CHARCOAL (Optional Accessory) BS-319677GS
...
--
KIT, Maintenance (Optional Accessory) BS-6873
...
--
KIT-COLD WEATHER ACC. (Optional Accessory) BS-6030A
