product name

040490-00 Briggs and Stratton 14,000 Volt-Amp Home Generator System

Model: 040490-00

Save Part Not Listed?
product name

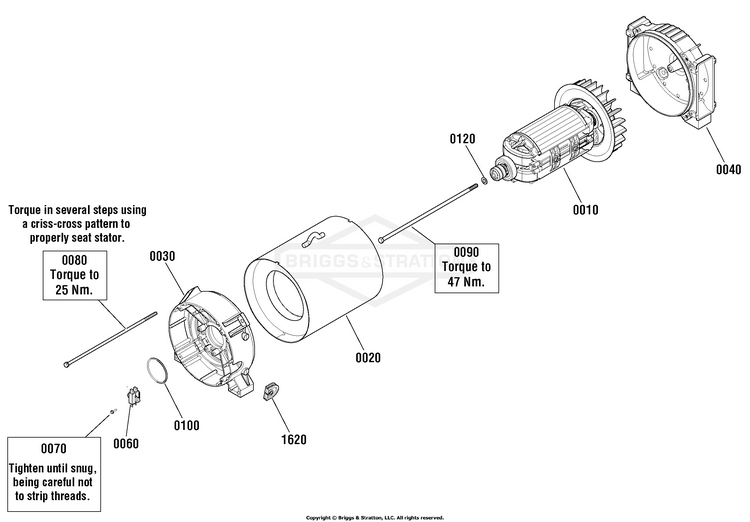

Alternator Group

...
...
0010
ROTOR BS-706064
...
0020
STATOR BS-84007021
...
0030
RBC BS-195234GS
...
0040
ADAPTER, Engine BS-195235GS
...
0060
BRUSH ASSEMBLY BS-66386GS
...
0070
HHCS, M5-0.8 X 16 BS-49815GS
...
0080
SCREW 5/16-18 x 14-5/16 BS-315199GS
...
0090
BOLT 3/8-24 x 15.2 BS-315204GS
...
0100
O-RING BS-199888GS
...
0120
WASHER 3/8 BS-203200GS
...
1620
GROMMET BS-315440GS

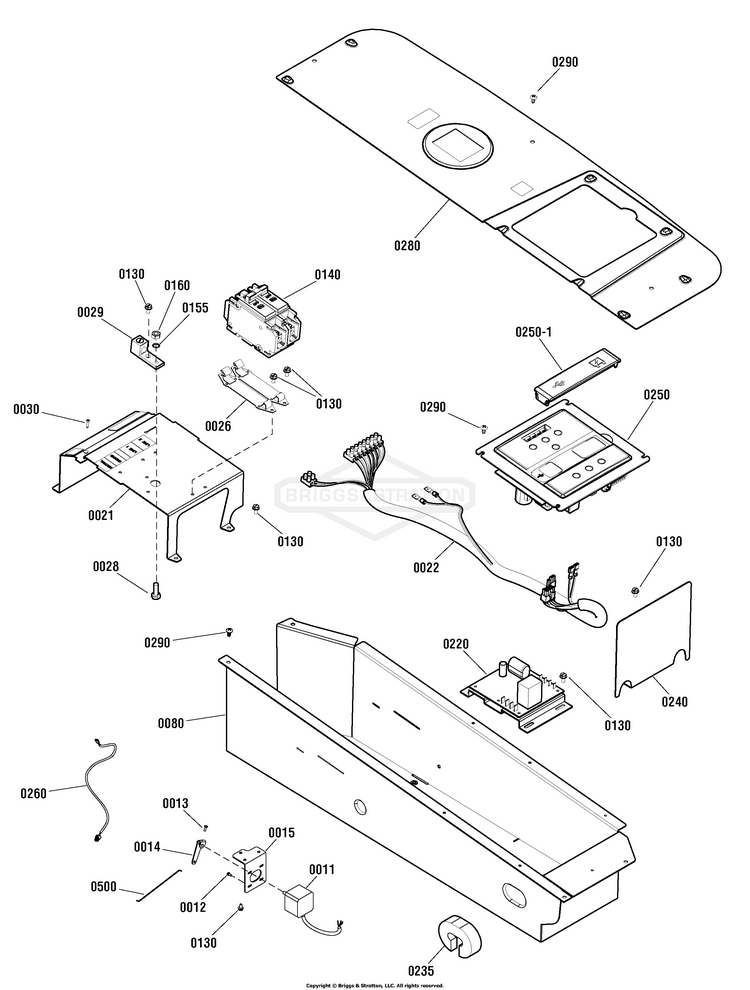

Control Panel Group

...
...
0011
MOTOR, Stepper BS-707181
...
0014
MOTOR, Stepper BS-707181
...
0015
MOTOR, Stepper BS-707181
...
0021
BRACKET BS-314633GS
...
0022
HARNESS-WIRE BS-314639GS
...
0026
BRACKET, Mounting / Breaker BS-192770GS
...
0029
LUG, Ground Connect BS-199011GS
...
0080
BOX, Control BS-314631GS
...
0140
BREAKER, Circuit 70A, 2P BS-311317GS
...
0220
REGULATOR, Voltage BS-707157
...
0235
SEAL BS-316205GS
...
0240
BRACKET BS-314632GS
...
0250
CONTROL PANEL (**See Footnote) BS-319892GS
...
0250-1
DOOR, Access BS-319009GS
...
0260
HARNESS, Wiring BS-317480GS
...
0280
COVER-CONTROL PANEL BS-BA314635GS
...
0500
ROD BS-317323GS
...
0510
FUSE, Auto Type, 15 Amp (Not Illustrated) BS-84010838
...
0520
ACCESSORY, KIT, OFF BOARD RADIO (Not Illustrated) BS-6479

Decals Group

...
...
0540
DECAL SHEET-WARNINGS (Includes all parts shown in box) BS-704046

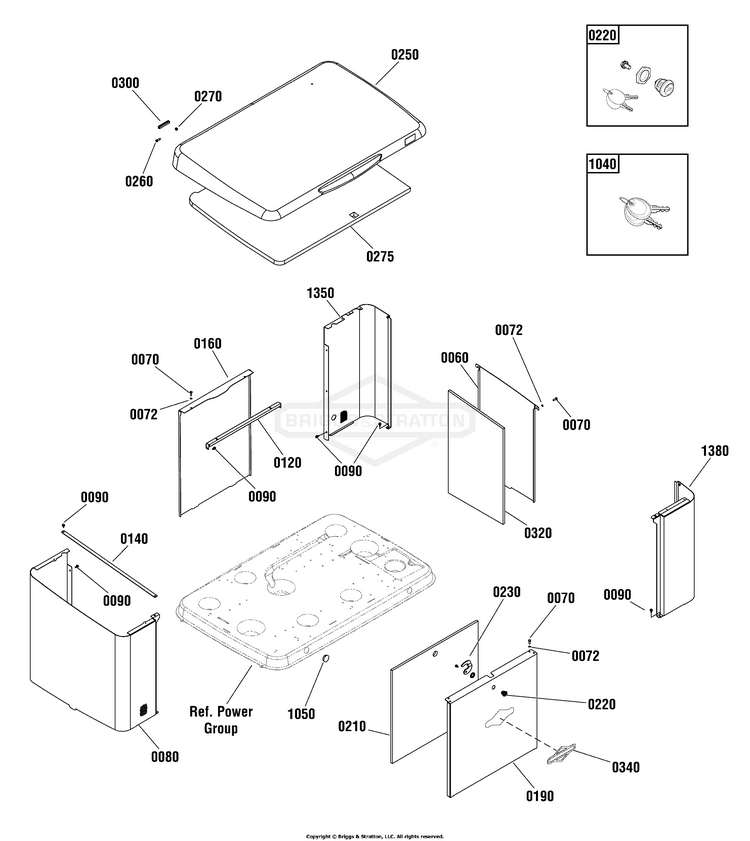

Enclosure Group

...
...
0060
PANEL, End, Right BS-AR314694GS
...
0080
PANEL, End, Left BS-AR314645GS
...
0090
SCREW, HEX, 1/4-20X.5 1/4-20 x 1/2 BS-704130
...
0120
SUPPORT, Rail BS-314652GS
...
0140
SUPPORT, Rail BS-314638GS
...
0160
PANEL, Back BS-AR314651GS
...
0190
PANEL, Front BS-AR316204GS
...
0210
INSULATION BS-315447GS
...
0220
LATCH BS-314619GS
...
0230
LATCH, Arm BS-315443GS
...
0250
ROOF BS-318235GS
...
0260
SCREW, 5/16-18 x 1/2 5/16-18 x 1/2 BS-311644GS
...
0275
INSULATION BS-315452GS
...
0300
TRIM BS-316954GS
...
0320
INSULATION BS-315453GS
...
0340
DECAL BS-770025
...
1040
KEY, Latch BS-314290GS
...
1050
PLUG, Dome BS-198460GS
...
1350
PANEL, Corner BS-AR314644GS
...
1380
PANEL, Corner BS-AR314681GS
...
--
PLUG, Roof (Not Illustrated) BS-316193GS

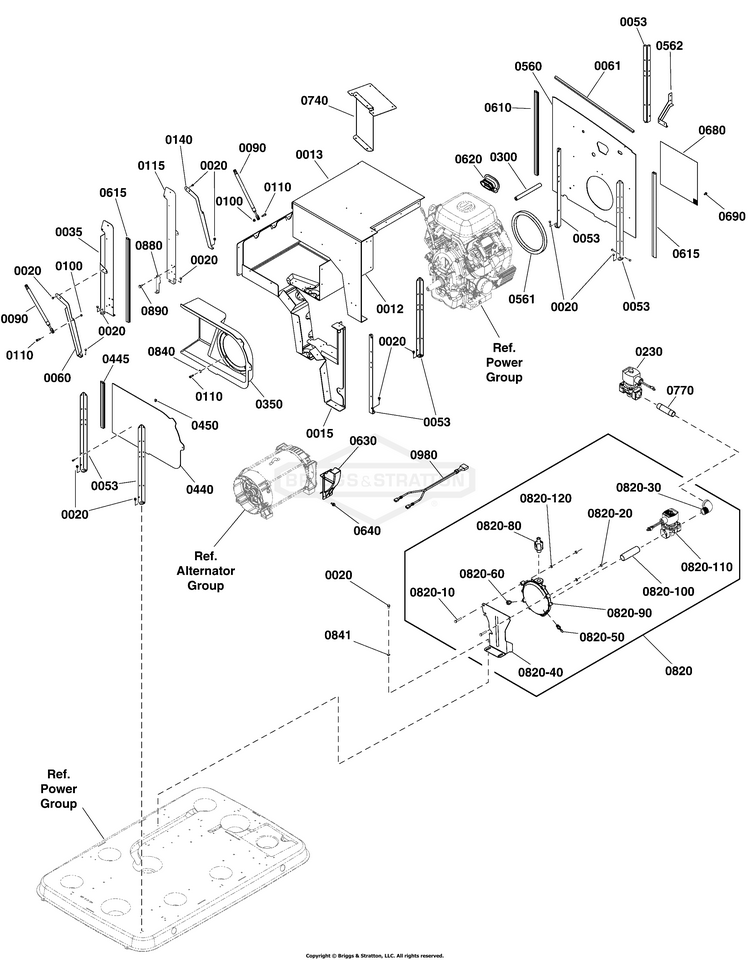

Fuel, Duct & Support Group

...
...
0012
PANEL, Muffler, Bottom BS-314620GS
...
0013
PANEL, Muffler, Top BS-314621GS
...
0015
PANEL, Muffler BS-314624GS
...
0020
SCREW, HEX, 1/4-20X.5 1/4-20 x 1/2 BS-704130
...
0035
BRACKET, Roof Support BS-314679GS
...
0053
SUPPORT BS-314625GS
...
0060
BRACE BS-314672GS
...
0061
TRIM BS-316202GS
...
0090
SHOCK, Roof BS-314649GS
...
0110
SCREW 5/16 x 1/2 BS-311644GS
...
0115
BRACKET, Roof Support BS-314647GS
...
0140
BRACE BS-314646GS
...
0230
SOLENOID BS-318880GS
...
0300
TUBE BS-314662GS
...
0350
DUCT, Alternator BS-314626GS
...
0440
PANEL, Intake, Alternator BS-314684GS
...
0445
SEAL BS-314682GS
...
0450
CLIP BS-314661GS
...
0560
PANEL, Intake, Engine BS-314683GS
...
0561
SEAL BS-315454GS
...
0562
SUPPORT BS-315444GS
...
0610
SEAL BS-316951GS
...
0615
SEAL BS-311692GS
...
0620
SNORKEL BS-314642GS
...
0630
DUCT BS-314628GS
...
0680
SCREEN BS-316194GS
...
0690
SCREW #10-32 x 3/8 BS-194561GS
...
0740
DEFLECTOR, Muffler BS-318771GS
...
0770
FITTING BS-318459GS
...
0820
FUEL REGULATOR ASSEMBLY (Incl. Ref. Nos. 0820-10, 0820-20, 0820-30, 0820-40, 0820-50, 0820-60, 0820-80, 0820-90, 0820-100, 0820-110, 0820-120) BS-84004438
...
0820-10
HHCS, M6 - 1.0 x 30 BS-38750GS
...
0820-20
NUT, Hex, M6 - 1.0 BS-49813GS
...
0820-30
FITTING BS-207894GS
...
0820-40
BRACKET BS-706379
...
0820-50
FITTING, Barb BS-314693GS
...
0820-60
FITTING BS-318002GS
...
0820-100
FITTING BS-706526
...
0820-110
SOLENOID, Fuel BS-318880GS
...
0820-120
WASHER BS-22097GS
...
0840
WASHER, Fender 5/16 BS-71693GS
...
0880
BRACKET, Fuel Solenoid BS-318918GS
...
0890
CAPSCREW, Hex Head, Trilobular, 5/16, 18 x 1/2 BS-24910GS
...
0980
WIRE HARNESS, Solenoid BS-706898
...
--
KIT, Fuel Regulator (Low Pressure Applications Only) (Optional Accessory - Not Included) BS-6358

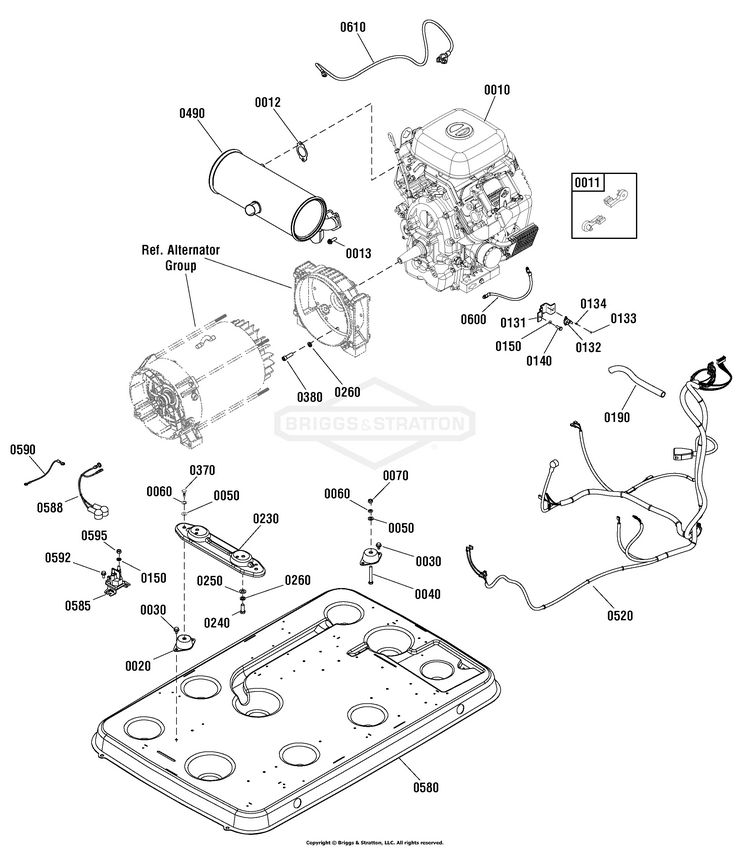

Power Group

...
...
0011
CLEVIS BS-845699
...
0012
GASKET BS-809872
...
0020
MOUNT, Vibration BS-187594GS
...
0030
CAPSCREW, Hex Head, Trilobular, 5/16, 18 x 1/2 5/16-18 x 1/2 BS-24910GS
...
0131
PLATE, Switch BS-313561GS
...
0132
SWITCH, Temp BS-204426GS
...
0133
SCREW 4-40 x 0.19 BS-708730
...
0140
HANDLE M6-1.0 x 16 BS-84010594
...
0190
HOSE, OIL DRAIN BS-5048681SM
...
0230
BRACKET BS-B198896GS
...
0380
SCREW 3/8-16 x 1-1/4 BS-23645GS
...
0490
MUFFLER BS-314663GS
...
0520
HARNESS, Wiring BS-314637GS
...
0580
BASE BS-706061
...
0585
SOLENOID, Starter BS-691656
...
0588
HARNESS BS-316188GS
...
0590
WIRE, Ground Relay BS-316961GS
...
0592
SCREW, HEX, 1/4-20X.5 1/4-20 x 1/2 BS-704130
...
0600
WIRE, Ground BS-706527
...
0610
WIRE, Battery, Ground BS-314640GS
...
--
KIT, Manual, Acc. (Not Illustrated) BS-706525
...
--
FUSE, Auto Type, 15 Amp (Not Illustrated) BS-84010838
...
--
HOSE-FLEX NG/LPG (Not Illustrated) BS-202295GS
...
--
PAINT, Touch Up, CNTNM Charcoal (Not Illustrated) BS-319693GS
...
--
PAINT, Spray, CNTNM Charcoal (Optional Accessory) BS-203417GS
...
--
PLATE, Warmer (Optional Accessory) BS-314941GS
...
--
KIT, Wireless Monitor (Optional Accessory) BS-6229
...
--
ACC, KIT, MAINTENANCE, 17-26000 (Optional Accessory) BS-6872
...
--
KIT, Cold Weather (Includes Battery & Oil Warmers) (Optional Accessory) BS-6231
...
--
KIT, Oil Warmers (Optional Accessory) BS-6254
