040489-00 Briggs and Stratton 50 Hz Home Generator System

Model: 040489-00

Back To Assemblies

Save Part Not Listed?
product name

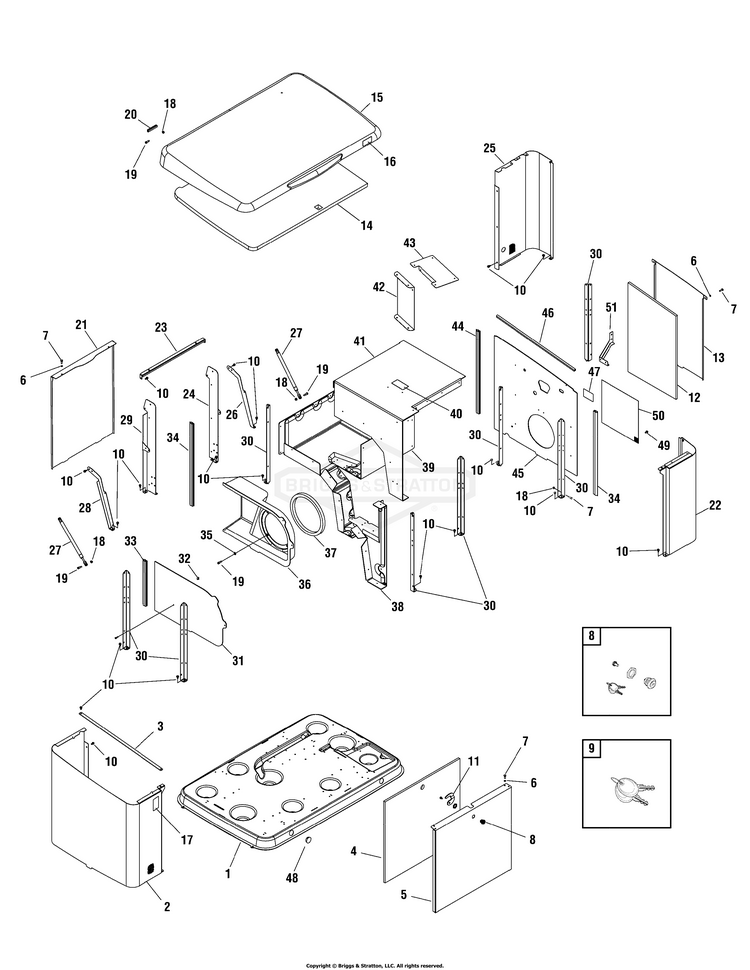

Enclosure

...
...
1
BASE BS-706061
...
2
PANEL, End, Left BS-AR314645GS
...
3
SUPPORT, Rail BS-314638GS
...
4
INSULATION BS-315447GS
...
5
PANEL, Front BS-318243GS
...
8
LATCH BS-314619GS
...
9
KEY, Latch BS-314290GS
...
10
SCREW, HEX, 1/4-20X.5 BS-704130
...
11
LATCH, Arm BS-315443GS
...
12
INSULATION BS-315453GS
...
13
PANEL, End, Right BS-AR314694GS
...
14
INSULATION BS-315452GS
...
15
ROOF BS-318235GS
...
16
DECAL SHEET, Warnings BS-704046
...
17
DECAL SHEET, Warnings BS-704046
...
19
SCREW BS-311644GS
...
20
TRIM BS-316954GS
...
21
PANEL, Back BS-AR314651GS
...
22
PANEL, Corner BS-AR314681GS
...
23
SUPPORT-RAIL BS-314652GS
...
24
BRACKET, Roof Support BS-314647GS
...
25
PANEL, Corner BS-AR314644GS
...
26
BRACE BS-314646GS
...
27
SHOCK, Roof BS-314649GS
...
28
BRACE BS-314672GS
...
29
BRACKET, Roof Support BS-314679GS
...
30
SUPPORT BS-314625GS
...
31
PANEL, Intake, Alternator BS-314684GS
...
32
CLIP BS-314661GS
...
33
SEAL BS-314682GS
...
34
SEAL BS-311692GS
...
36
DUCT, Alternator BS-314626GS
...
37
SEAL BS-315454GS
...
38
PANEL, Muffler BS-314624GS
...
39
PANEL, Muffler, Bottom BS-314620GS
...
40
DECAL SHEET, Warnings BS-704046
...
41
PANEL, Muffler, Top BS-314621GS
...
42
DEFLECTOR-MUFFLER BS-706059
...
43
DEFLECTOR-MUFFLER BS-706059
...
44
SEAL BS-316951GS
...
45
PANEL, Intake, Engine BS-314683GS
...
46
TRIM BS-316202GS
...
47
DECAL SHEET, Warnings BS-704046
...
48
PLUG BS-198460GS
...
49
SCREW BS-194561GS
...
50
SCREEN BS-316194GS
...
51
SUPPORT BS-315444GS
...
--
PLUG, Roof (Not Illustrated) BS-316193GS
