040489-00 Briggs and Stratton 50 Hz Home Generator System

Model: 040489-00

Back To Assemblies

Save Part Not Listed?
product name

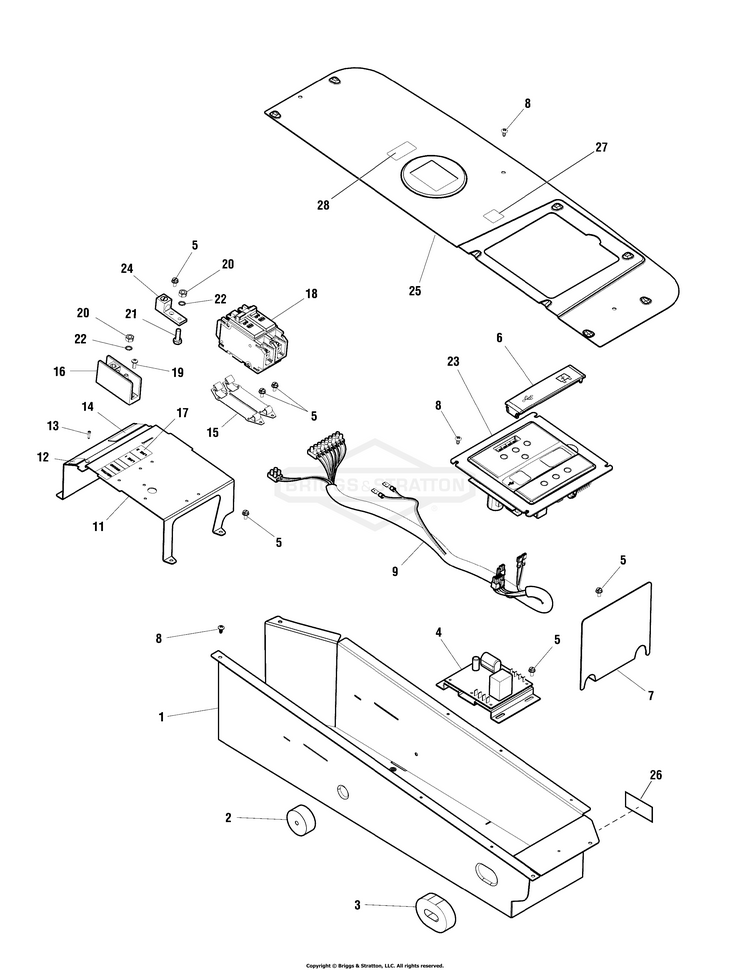

Control Panel

...
...
1
BOX, Control BS-314631GS
...
2
SEAL (Not used after Serial No. 1021813481) BS-316948GS
...
3
SEAL BS-316205GS
...
4
REGULATOR, Voltage BS-707157
...
6
DOOR, Access BS-319009GS
...
7
BRACKET BS-314632GS
...
9
HARNESS-WIRE BS-314639GS
...
11
BRACKET BS-314633GS
...
12
DECAL SHEET, Warnings BS-704046
...
14
DECAL SHEET, Warnings BS-704046
...
15
BRACKET, Mounting / Breaker BS-192770GS
...
16
BLOCK, Terminal BS-208365GS
...
17
DECAL SHEET, Warnings BS-704046
...
18
BREAKER, Circuit 70A, 2P BS-311317GS
...
23
CONTROL PANEL (**See Footnote) BS-319892GS
...
24
LUG, Ground Connect BS-199011GS
...
25
COVER-CONTROL PANEL BS-BA314635GS
...
26
DECAL SHEET, Warnings BS-704046
...
27
DECAL SHEET, Warnings BS-704046
...
28
DECAL SHEET, Warnings BS-704046
...
29
FUSE, Auto Type, 15 Amp (Not Illustrated) BS-84010838
...
30
ACCESSORY, KIT, OFF BOARD RADIO (Not Illustrated) BS-6479
