040489-00 Briggs and Stratton 50 Hz Home Generator System

Model: 040489-00

Back To Assemblies

Save Part Not Listed?
product name

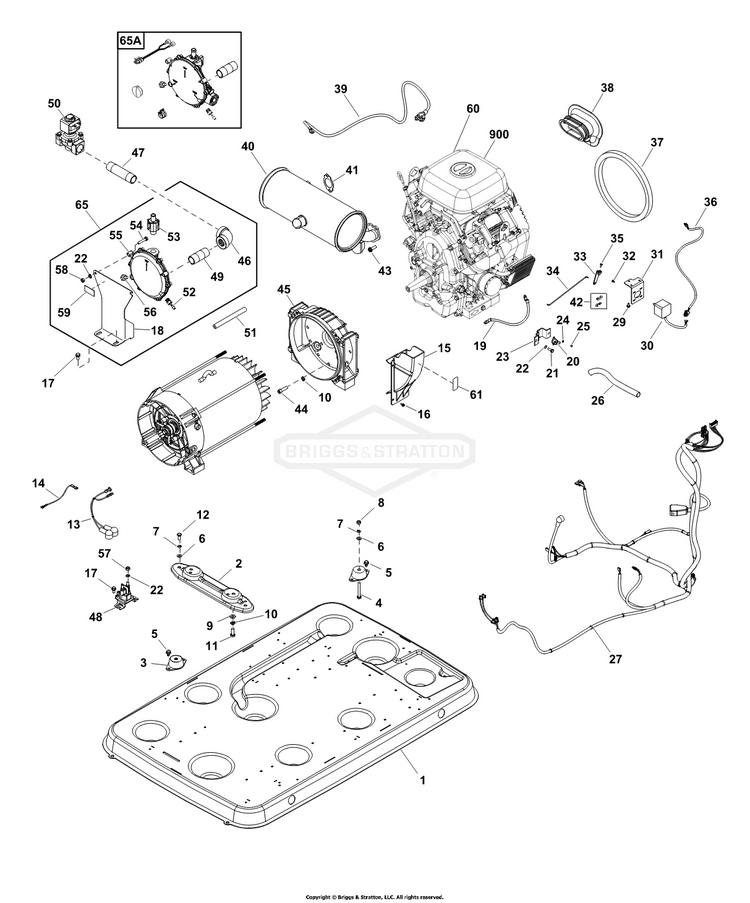

Main Unit

...
...
1
BASE BS-706061
...
2
BRACKET BS-B198896GS
...
3
MOUNT, Vibration BS-187594GS
...
5
CAPSCREW, Hex Head, Trilobular, 5/16, 18 x 1/2 BS-24910GS
...
--
HOSE-FLEX NG/LPG (Not Illustrated) BS-202295GS
...
13
HARNESS BS-316188GS
...
14
WIRE, Ground Relay BS-316961GS
...
15
DUCT BS-314628GS
...
17
SCREW, HEX, 1/4-20X.5 BS-704130
...
18
BRACKET BS-706379
...
19
WIRE, Ground BS-314641GS
...
20
SWITCH, Temp BS-204426GS
...
21
HANDLE BS-84010594
...
23
PLATE, Switch BS-313561GS
...
25
SCREW BS-708730
...
26
HOSE, Oil BS-1723165SM
...
27
HARNESS, Wiring BS-314637GS
...
29
SCREW BS-194561GS
...
30
MOTOR, Stepper BS-707181
...
31
MOTOR, Stepper BS-707181
...
33
MOTOR, Stepper BS-707181
...
34
ROD BS-317323GS
...
36
HARNESS, Wiring BS-317480GS
...
37
SEAL BS-315454GS
...
38
SNORKEL BS-314642GS
...
39
WIRE, Battery, Ground BS-314640GS
...
40
MUFFLER BS-314663GS
...
41
GASKET BS-809872
...
42
CLEVIS BS-845699
...
44
SCREW BS-23645GS
...
45
ADAPTER, Engine BS-195235GS
...
46
ELBOW BS-312781GS
...
47
FITTING BS-318459GS
...
48
SOLENOID, Starter BS-691656
...
49
FITTING BS-206976GS
...
50
SOLENOID BS-318880GS
...
51
TUBE BS-314662GS
...
52
FITTING, Barb BS-314693GS
...
53
REGULATOR, FUEL BS-84012834
...
55
REGULATOR, FUEL BS-84012834
...
56
FITTING BS-318002GS
...
59
DECAL SHEET, Warnings BS-704046
...
60
LABEL, Warning BS-278911GS
...
61
DECAL SHEET, Warnings BS-704046
...
65
REGULATOR, FUEL (No Longer Available) (See Reference 65A for Service) BS-84012834
...
65A
REGULATOR, FUEL (Includes Ref. Nos. 49, 52, 55, 56) BS-84012834
...
--
KIT, Hardware (Not Illustrated) BS-318973GS
...
--
KIT, Accessory (Not Illustrated) BS-704052
...
--
HANG TAG, Attn Standby Equipment (Not Illustrated) BS-195200GS
...
--
PAINT, Touch Up, CNTNM Charcoal (Not Illustrated) BS-203374GS
...
--
PAINT, Spray, CNTNM Charcoal (Optional Accessory) BS-203417GS
...
--
PLATE, Warmer (Optional Accessory) BS-314941GS
...
--
ACC, KIT, MAINTENANCE, 17-26000 (Optional Accessory) BS-6872
...
--
KIT, Wireless Monitor (Optional Accessory) BS-6229
...
--
KIT, Cold Weather (Includes Battery & Oil Warmers) (Optional Accessory) BS-6231
...
--
KIT, Oil Warmers (Optional Accessory) BS-6254
