040472-01 Briggs and Stratton Generator 8,000 Watt Standby Generator With 50 Amp ATS

Model: 040472-01

Back To Assemblies

Save Part Not Listed?
product name

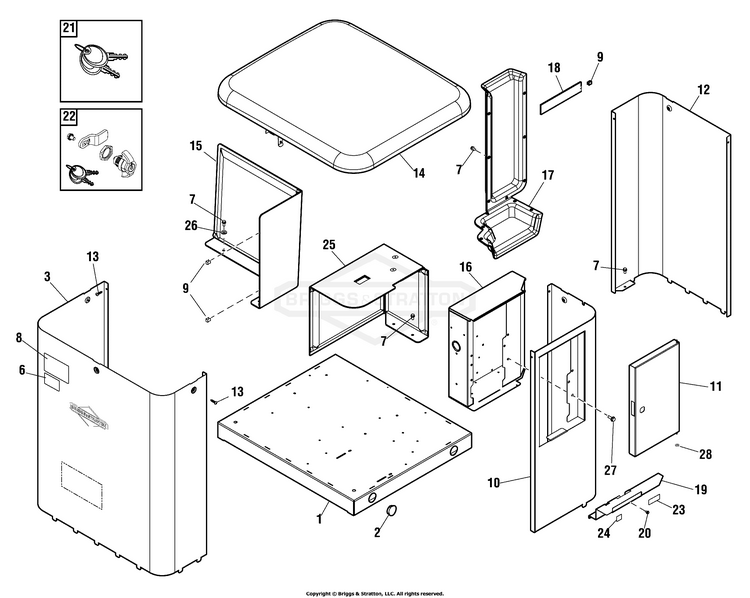

Enclosure Group

...
...
1
BASE BS-B316878GS
...
2
PLUG-HOLE BS-198460GS
...
3
PANEL-FRONT BS-AR316864GS
...
6
DECAL BS-318449GS
...
7
SCREW, HEX, 1/4-20X.5 BS-704130
...
8
DECAL BS-318449GS
...
9
CLIP BS-314661GS
...
10
PANEL-RIGHT BACK BS-706383
...
11
ASSY-DOOR BS-AR316870GS
...
12
PANEL-LEFT BACK BS-AR316859GS
...
13
SCREW, #10-16 X 5/8 BS-703884
...
14
ROOF BS-770010
...
15
DUCT-EXHAUST BS-316845GS
...
16
BOX-CONTROL PANEL BS-706026
...
17
DUCT-CONTROL BOX BS-316861GS
...
18
PANEL-DUCT BS-316862GS
...
19
DIVIDER-CONTROL BOX BS-316853GS
...
20
SCREW BS-194561GS
...
21
KEY-LATCH BS-207652GS
...
22
KIT-LATCH BS-204700GS
...
23
DECAL BS-317368GS
...
24
DECAL BS-317371GS
...
25
PANEL-BOX BS-703883
...
27
SCREW BS-200020GS
...
28
WASHER-NYLON, FLAT BS-703929
