040468-00 Briggs and Stratton Generator 10,000 Watt Standby Generator

Model: 040468-00

Save Part Not Listed?
product name

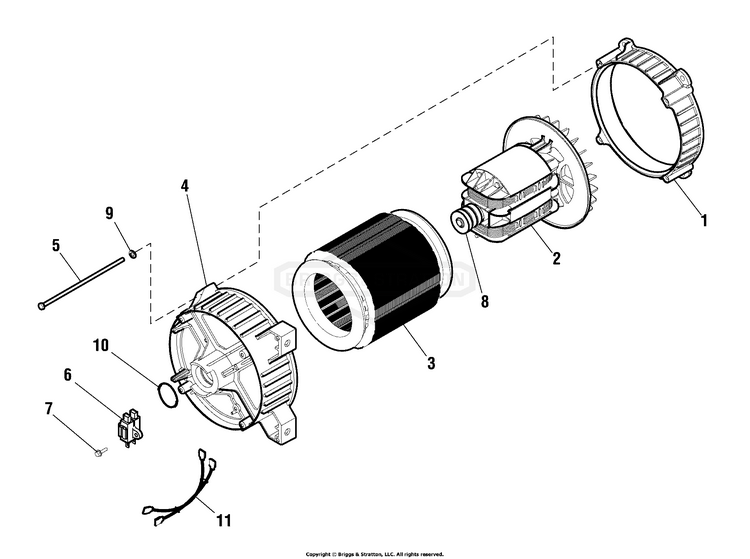

Alternator Group

...
...
1
ADAPTER-ALTERNATOR BS-209599GS
...
2
ROTOR BS-201309GS
...
3
STATOR BS-316871GS
...
4
CARRIER-BEARING (with O-Ring) BS-193336GS
...
5
BOLT BS-66449LGS
...
6
BRUSH ASSEMBLY BS-66386GS
...
7
HHCS, M5-0.8 X 16 BS-49815GS
...
8
BEARING BS-65791GS
...
10
O-RING BS-189197GS
...
11
HARNESS-WRIING BS-193472GS

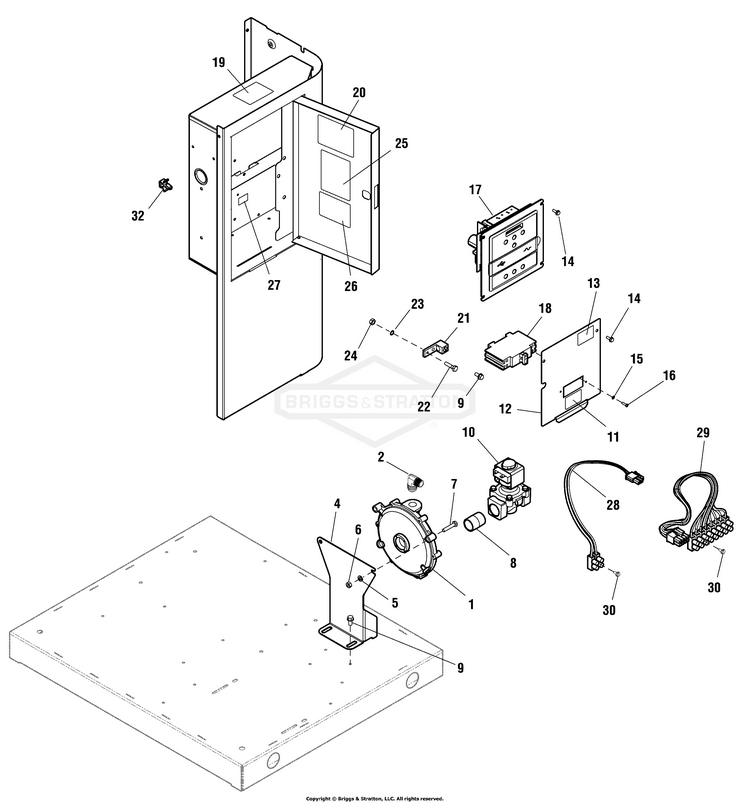

Control Panel Group

...
...
1
REGULATOR, FUEL BS-84012834
...
2
FITTING, Elbow, 1/2 Flare, 3/8 NPT BS-205955GS
...
4
BRACKET BS-706379
...
8
FITTING BS-206976GS
...
9
SCREW, HEX, 1/4-20X.5 BS-704130
...
10
SOLENOID, Fuel BS-318880GS
...
11
DECAL SHEET, Warnings BS-318449GS
...
12
COVER-CONTROL BOX BS-B316856GS
...
13
DECAL SHEET, Warnings BS-318449GS
...
14
SCREW, Trilobular, #10-32 x 1/2 BS-200020GS
...
15
WASHER, Shakeproof BS-23364GS
...
16
SCREW BS-36902GS
...
17
PANEL-CONTROL (**See Footnote) BS-315423GS
...
18
BREAKER, Circuit, 50 Amp BS-208790GS
...
19
DECAL SHEET, Warnings BS-318449GS
...
20
DECAL SHEET, Warnings BS-318449GS
...
21
LUG, Ground Connect BS-199011GS
...
23
WASHER, Ext. M6 - 1/4" Shakeproof BS-26850GS
...
25
DECAL SHEET, Warnings BS-318449GS
...
26
DECAL SHEET, Warnings BS-318449GS
...
27
DECAL SHEET, WARNINGS BS-705920
...
28
HARNESS, Wiring BS-316812GS
...
29
HARNESS, Wiring, Control Panel BS-316813GS
...
30
SCREW, Taptite, M2.5-.45 X 12 BS-314691GS
...
32
MOUNT, Tie Wrap BS-195733GS
...
33
HARNESS-WIRING (Not Illustrated) BS-316811GS
...
34
ACCESSORY, KIT, OFF BOARD RADIO (Not Illustrated) BS-6479

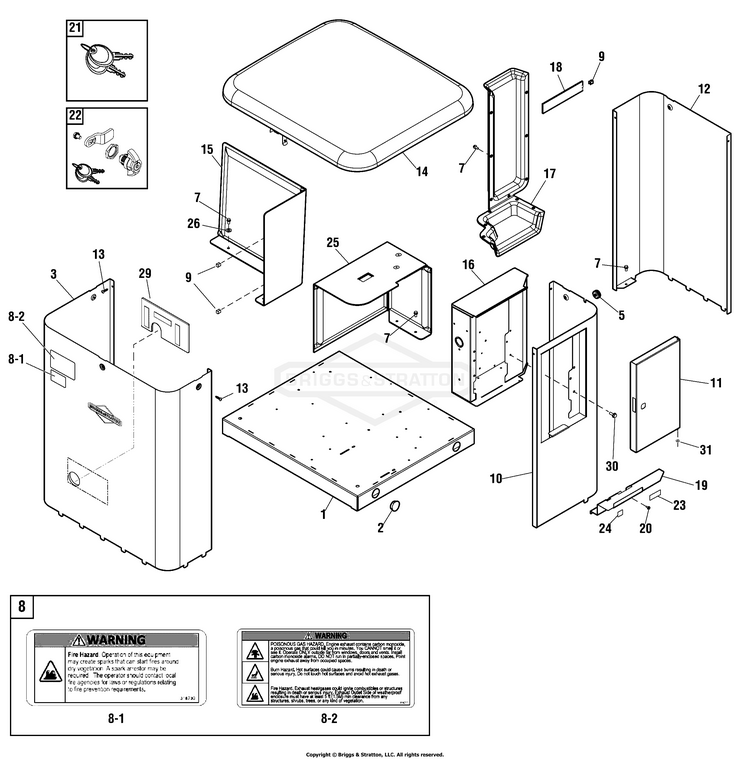

Enclosure Group

...
...
1
BASE BS-B316878GS
...
2
PLUG-HOLE BS-198460GS
...
3
PANEL-FRONT BS-AR316865GS
...
5
GROMMET BS-316855GS
...
7
SCREW, HEX, 1/4-20X.5 BS-704130
...
8
DECAL SHEET-WARNINGS BS-318449GS
...
9
CLIP BS-314661GS
...
10
PANEL-RIGHT BACK BS-706383
...
11
DOOR ASSEMBLY BS-AR316870GS
...
12
PANEL-LEFT BACK BS-AR316859GS
...
13
SCREW, #10-16 X 5/8 BS-703884
...
14
ROOF BS-770010
...
15
DUCT-EXHAUST BS-316845GS
...
16
BOX-CONTROL PANEL BS-706026
...
17
DUCT-CONTROL BOX BS-316861GS
...
18
PANEL-DUCT BS-316862GS
...
19
DIVIDER-CONTROL BOX BS-316853GS
...
20
SCREW BS-194561GS
...
21
KEY-LATCH BS-207652GS
...
22
KIT-LATCH BS-204700GS
...
23
DECAL BS-317368GS
...
24
DECAL BS-317371GS
...
25
PANEL-BOX BS-703883
...
29
PANEL-MUFFLER GUARD BS-316850GS
...
31
WASHER-NYLON BS-703929
...
30
SCREW BS-200020GS

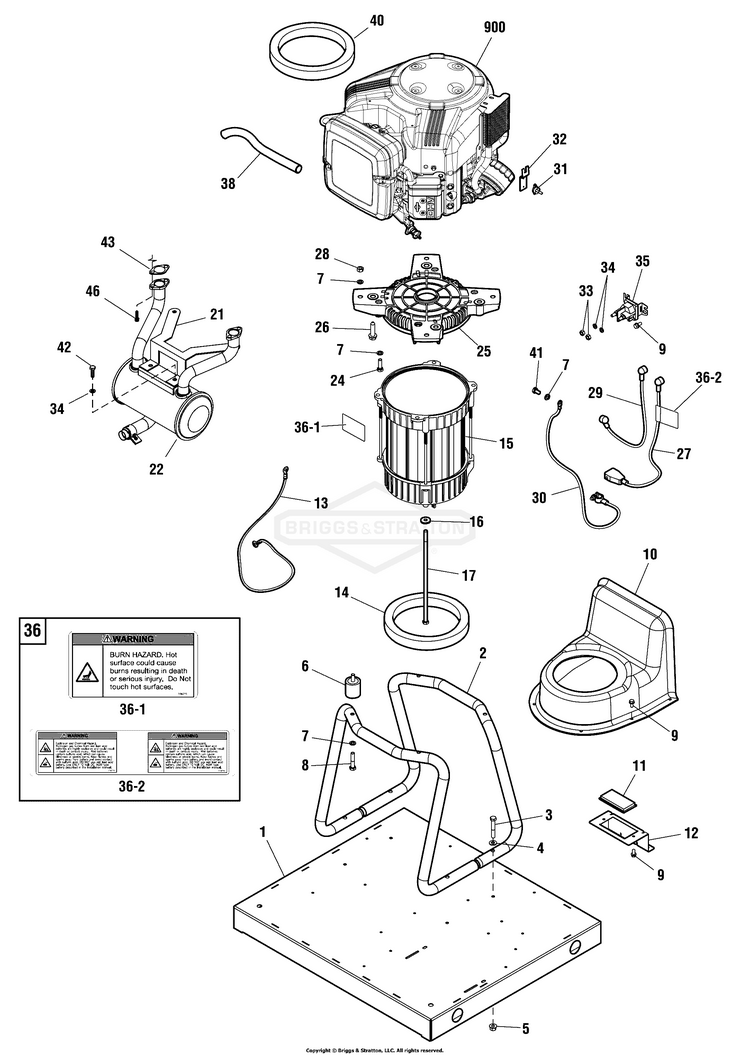

Main Unit Group

...
...
1
BASE BS-B316878GS
...
2
CRADLE BS-B316829GS
...
6
MOUNT-VIBRATION BS-189109GS
...
9
SCREW, HEX, 1/4-20X.5 BS-704130
...
10
DUCT BS-316846GS
...
11
REGULATOR-VOLTAGE BS-196070GS
...
12
BRACKET BS-316854GS
...
13
WIRE BS-316816GS
...
14
SEAL BS-193061GS
...
16
WASHER BS-96796GS
...
17
BOLT BS-187365EGS
...
21
BRACKET-MUFFLER BS-200857GS
...
22
MUFFLER BS-316851GS
...
25
ADAPTER-ENGINE BS-196727GS
...
26
SCREW, HEX, 3/8-16 BS-704010
...
27
HARNESS-WIRING BS-316811GS
...
29
WIRE, Starter Solenoid BS-316814GS
...
30
WIRE, Battery, Negative BS-316817GS
...
31
SWITCH BS-195130GS
...
32
PLATE-TEMP SWITCH BS-195124GS
...
35
SOLENOID, Starter BS-691656
...
36
DECAL SHEET-WARNINGS BS-318449GS
...
38
HOSE, OIL DRAIN BS-5048681SM
...
40
SEAL BS-316881GS
...
43
GASKET, Exhaust BS-691613
...
46
SCREW BS-691902
...
--
KIT, Accessory (Not Illustrated) BS-80004650GS
...
--
HOSE-FLEX NG/LPG (Not Illustrated) BS-202295GS
...
--
HANG TAG, Attn Standby Equipment (Not Illustrated) BS-195200GS
...
--
STRAP-BATTERY TIEDOWN (Not Illustrated) BS-316869GS
...
--
DECAL, 240 VOLT (Not Illustrated) BS-193703GS
...
--
DECAL, NEUTRAL (Not Illustrated) BS-319608GS
...
--
FUSE, Auto Type, 15 Amp (Not Illustrated) BS-84010838
...
--
HARNESS, FUEL CONVERSION (Not Illustrated) BS-316840GS
...
--
PAINT-TOUCHUP, TEXTURED CHARCOAL (Not Illustrated) BS-319693GS
...
--
PAINT-SPRAY, TEXTURED CHARCOAL (Optional Accessory) BS-319677GS
...
--
KIT, Maintenance (Optional Accessory) BS-6873
...
--
KIT-COLD WEATHER ACC. (Optional Accessory) BS-6030A
...
--
KIT-ACC WIRELESS MONITOR (Use with 040375-00) (Optional Accessory) BS-6264
...
--
KIT-ACC WIRELESS MONITOR (Use with 040375-01) (Optional Accessory) BS-6277

Wiring Diagram - Standby Generator

...

No Parts Available for this Schematic

Wiring Schematic - Standby Generator

...

No Parts Available for this Schematic
