040434-00 Briggs and Stratton 7,000 Watt Duel Fuel Standby Generator System With Manual Transfer Switch

Model: 040434-00

Save Part Not Listed?
product name

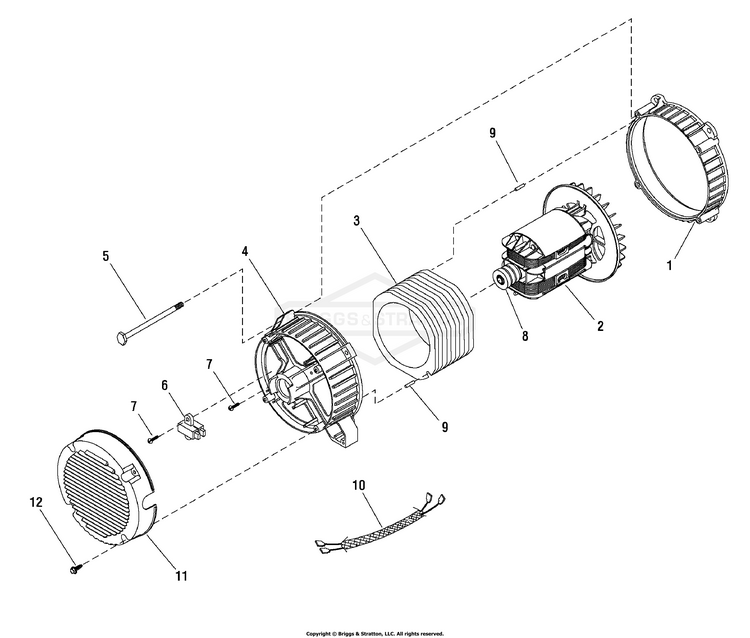

Alternator Group

...
...
1
ADAPTER, Alternator BS-209599GS
...
2
ROTOR BS-195430GS
...
3
STATOR BS-313843GS
...
4
CARRIER, Bearing BS-193336GS
...
5
SCREW BS-86308KGS
...
6
BRUSH ASSEMBLY BS-66386GS
...
7
HHCS, M5-0.8 X 16 BS-49815GS
...
8
BEARING BS-65791GS
...
9
PIN BS-91551GS
...
10
HARNESS, Wiring BS-193472GS
...
11
COVER, Rear Bearing BS-192906GS
...
12
TAPTITE BS-74908GS

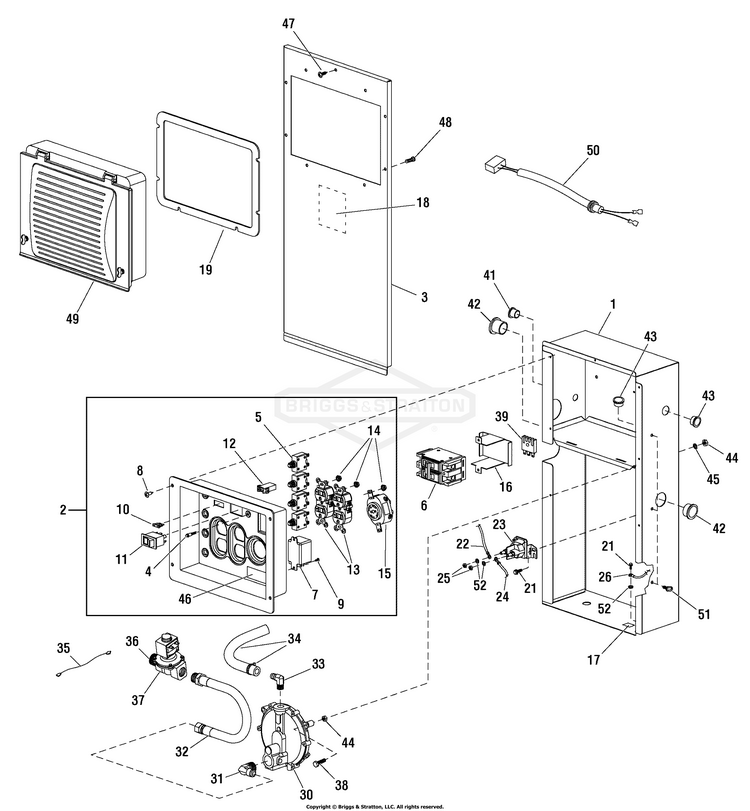

Control Panel Group

...
...
1
PANEL, Control BS-195229GS
...
2
PANEL, Control BS-199925GS
...
3
PANEL, Back BS-203441GS
...
4
LAMP, LED BS-200384GS
...
5
BREAKER-CIRCUIT 20A BS-209872GS
...
6
BREAKER, Circuit, 30A BS-192828DGS
...
7
RELAY BS-200641GS
...
8
SCREW BS-192445GS
...
9
SCREW BS-200245GS
...
10
FUSE, Auto Type, 15 Amp BS-84010838
...
11
SWITCH, ON/OFF/ON BS-195218GS
...
12
HOLDER, Fuse BS-200367GS
...
13
OUTLET, 120V 20A BS-68759GS
...
14
PALNUT, 5/32 BS-189165GS
...
15
OUTLET, 120/240V TL30A BS-43437GS
...
16
BRACKET BS-192931GS
...
17
DECAL SHEET, WARNINGS BS-705920
...
18
DECAL BS-205397GS
...
19
SEAL, Foam BS-200285GS
...
21
SCREW, HEX, 1/4-20X.5 BS-704130
...
22
WIRE BS-193171GS
...
23
SOLENOID, Starter BS-691656
...
24
CABLE, Starter Solenoid to Starter Motor, 6 AWG Red BS-194659GS
...
26
WIRE BS-188573AGS
...
30
REGULATOR, FUEL BS-84012834
...
31
FITTING BS-186151GS
...
32
HOSE BS-186148GS
...
33
FITTING BS-186150GS
...
34
HOSE, NG/LPG BS-195005GS
...
35
WIRE BS-312799GS
...
36
FITTING BS-192449GS
...
37
SOLENOID, Gas Fuel BS-194683GS
...
39
RECTIFIER, Battery Charge BS-65795GS
...
41
BUSHING, Snap BS-192455GS
...
42
BUSHING, Snap BS-186173GS
...
43
BUSHING, Snap BS-186582GS
...
46
DECAL BS-200227GS
...
48
PLASTITE BS-B3311GS
...
49
COVER, Panel BS-200130GS
...
50
HARNESS, Wiring BS-313845GS
...
51
KIT, Retainer Clips BS-195009GS
...
--
RELAY (Not Illustrated) BS-201010GS

Enclosure Group

...
...
1
PAD-MOUNTING BS-704983
...
2
BASE BS-U191852GS
...
3
PANEL ASSEMBLY, Right BS-203440GS
...
4
FRONT PANEL ASSEMBLY BS-200880GS
...
5
PANEL ASSEMBLY, Left BS-199335GS
...
6
COVER, Oil Filter BS-U208787GS
...
7
DUCT (Includes Ref. No. 49) BS-195228GS
...
8
DECAL BS-200327GS
...
9
ROOF ASSEMBLY BS-199009GS
...
10
REGULATOR, Voltage BS-314338GS
...
11
KIT, Hardware, Enclosure BS-194991GS
...
12
CRADLE BS-B191860GS
...
13
FITTING BS-200729GS
...
14
DECAL BS-203442GS
...
15
PLUG, Hole BS-185976GS
...
16
DECAL BS-200409GS
...
17
SCREW, HEX, 1/4-20X.5 BS-704130
...
18
DECAL BS-195642GS
...
19
DECAL BS-203845GS
...
20
WASHER, Ext. M6 - 1/4" Shakeproof BS-26850GS
...
21
DECAL BS-203603GS
...
48
WIRE BS-15253621GS
...
49
SEAL, Foam BS-193061GS

LP Tank Pad Group

...
...
1
PAD-MOUNTING BS-705917
...
2
KIT, Dual Rack Base BS-200725GS
...
3
BRACKET BS-U200726GS
...
4
REGULATOR ASSEMBLY BS-200727GS
...
7
NUT, Flange Serrated, M8 BS-67989GS
...
8
BOLT, Lag, 5/16 x 1 BS-200728GS
...
--
COVER, Tank (Not Illustrated) BS-200844GS

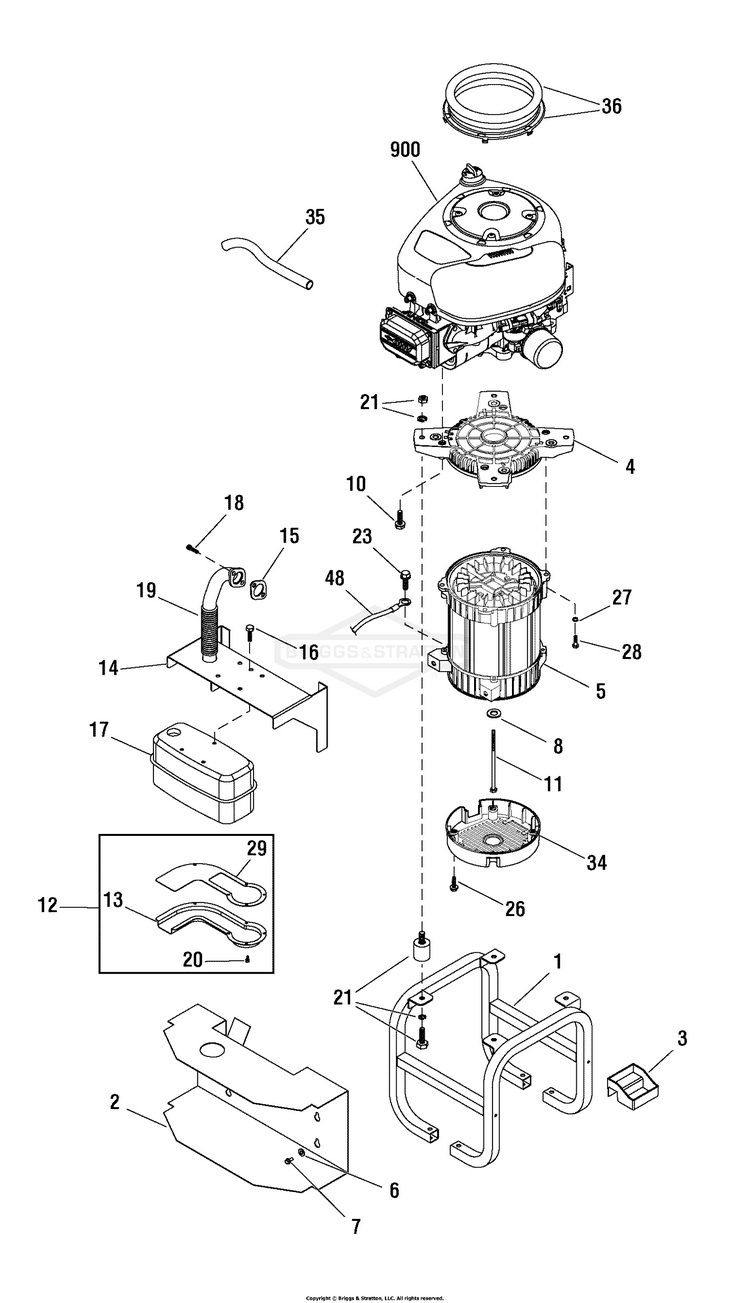

Main Unit Group

...
...
1
CRADLE BS-B191860GS
...
2
BOX, Muffler BS-313654GS
...
3
TRAY, Oil Drain BS-193536GS
...
4
ADAPTER, Engine BS-191793GS
...
7
SCREW, HEX, 1/4-20X.5 BS-704130
...
8
WASHER BS-96796GS
...
10
SCREW, HEX, 3/8-16 BS-704010
...
11
CAPSCREW, Hex Head, 5/16-24 x 9.84 BS-187365HGS
...
12
DEFLECTOR, Muffler BS-207270GS
...
13
DEFLECTOR, Muffler BS-193475GS
...
14
BRACKET, Muffler BS-313651GS
...
15
GASKET, Exhaust BS-692236
...
16
TAPTITE BS-83512GS
...
17
MUFFLER BS-207059GS
...
18
SCREW BS-698941
...
19
PIPE, Exhaust BS-194159GS
...
20
KIT, Hardware, Deflector BS-195008GS
...
21
KIT, Vibration Mount BS-194209GS
...
26
TAPTITE BS-74908GS
...
29
ARRESTOR, Spark BS-194221GS
...
34
COVER, Rear Bearing BS-192906GS
...
35
HOSE BS-1723165SM
...
36
KIT, Seal BS-311723GS
...
48
WIRE BS-15253621GS
...
--
KIT, Manual ACC BS-313040GS
...
--
PAINT, Touch Up, Gray BS-198810GS
...
--
HOSE-FLEX NG/LPG BS-202295GS
...
--
PAINT, Spray, Gray (Optional Accessory BS-199474GS
