product name

040400-00 Briggs and Stratton 12,000 Watt Standby Generator System With 200 Amp ATS

Model: 040400-00

Save Part Not Listed?
product name

Alternator

...
...
0010
ADAPTER, Engine BS-192970GS
...
0020
GRID BS-316351GS
...
0030
BEARING BS-316354GS
...
0040
VARISTOR BS-316352GS
...
0050
STATOR BS-315955GS
...
0060
DIODE BS-315956GS
...
0070
RING, Fixing BS-316353GS
...
0080
FAN BS-316349GS
...
0090
COVER, Capacitor BS-192967GS
...
0100
BLOCK, Terminal BS-315953GS
...
0150
SCREW BS-31183GS
...
0160
ROTOR BS-316350GS
...
0180
WASHER, 5/16" INT. TO 5/16 BS-5025188SM
...
0190
NUT M8 - 1.25 BS-45771GS
...
--
KIT, Capacitors (Includes 1 ea. 35uF & 40uF) BS-316376GS
...
--
CAPACITOR (Optional service part, order as requried) BS-317837GS
...
--
CAPACITOR, 40uF (1 ea) (Optional service part, order as requried) BS-317838GS

Control Panel

...
...
1
BOX-CONTROL PANEL BS-315099GS
...
2
CONTROL PANEL BS-311353GS
...
3
PANEL-CONTROL BS-B312357GS
...
4
LUG BS-199011GS
...
5
CIRCUIT BREAKER, 60A BS-311316GS
...
6
BRACKET BS-192770GS
...
7
LEVER BS-B313819GS
...
8
LATCH-ROOF BS-311684GS
...
10
BRACKET BS-311660GS
...
11
DECAL BS-198549GS
...
12
DECAL BS-313585GS
...
13
THERMAL FUSE BS-318402GS
...
14
ASSY-FUSE BS-318404GS
...
15
WIRE-WAY BS-315617GS
...
17
FUSE, Auto Type, 15 Amp BS-84010838
...
18
DECAL BS-205393GS
...
20
DECAL SHEET, WARNINGS BS-705920
...
21
DECAL BS-193297GS
...
22
DECAL BS-311629GS
...
23
FITTING BS-311680GS
...
24
FITTING BS-312781GS
...
25
VALVE-FUEL BS-318649GS
...
28
DECAL BS-205394GS
...
29
DECAL BS-205395GS
...
30
CONNECTOR-2 PIN BS-198515GS
...
31
CONNECTOR-10 PIN BS-198516GS
...
32
HARNESS-WIRE BS-198517GS
...
34
FITTING BS-202382GS
...
35
REGULATOR-NG/LPG BS-194830GS
...
36
BRACKET BS-311706GS
...
37
BRACKET BS-311708GS
...
38
FITTING BS-318399GS
...
39
SCREW, HEX, 1/4-20X.5 BS-704130
...
--
HARNESS-WIRE (Not Illustrated) BS-312069GS
...
--
DECAL (Not Illustrated) BS-206609GS
...
--
CABLE, Battery Positive to Starter Solenoid, 6 AWG Red (Not Illustrated) BS-311691GS
...
--
CABLE-BTTRY, BLACK (Not Illustrated) BS-311693GS

Enclosure

...
...
1
BASE BS-B311623GS
...
2
BULKHEAD, Flat Grey (Used on models before S/N: 10251665) BS-AA313127GS
...
2
BULKHEAD, Texture Grey (Used on models after S/N: 10251665) BS-AR313127GS
...
3
COVER, Muffler BS-312754GS
...
4
SCREW BS-194561GS
...
5
DECAL BS-195642GS
...
6
DECAL, Operation Instructions BS-186640GS
...
7
SEAL BS-312066GS
...
8
DEFLECTOR, Muffler BS-312752GS
...
9
CORNER, Flat Grey (Used on models before S/N: 10251665) BS-AA311637GS
...
9
CORNER, Texture Grey (Used on models after S/N: 10251665) BS-AR311637GS
...
10
COVER, Muffler BS-311672GS
...
11
DOOR, Flat Grey (Used on models before S/N: 10251665) BS-316471GS
...
11
DOOR, Texture Grey (Used on models after S/N: 10251665) BS-703862
...
13
SEAL BS-311692GS
...
14
DECAL BS-187316GS
...
15
TRAY, Battery BS-315200GS
...
16
SCREW, HEX, 1/4-20X.5 BS-704130
...
17
BULKHEAD BS-315106GS
...
18
LEVER BS-311642GS
...
19
NUT BS-194005GS
...
20
SCREW BS-311644GS
...
22
RAIL BS-312767GS
...
23
BULKHEAD BS-315107GS
...
24
RAIL BS-311648GS
...
25
DIVIDER BS-311639GS
...
26
KNOB BS-312077GS
...
27
BUMPER BS-312353GS
...
28
U-BOLT BS-311651GS
...
31
DECAL BS-311685GS
...
32
KEY, Latch BS-314290GS
...
33
CORNER, Flat Grey (Used on models before S/N: 10251665) BS-AA311638GS
...
33
CORNER, Texture Grey (Used on models after S/N: 10251665) BS-AR311638GS
...
34
DOOR, Flat Grey (Used on models before S/N: 10251665) BS-316472GS
...
34
DOOR, Texture Grey (Used on models after S/N: 10251665) BS-703863
...
35
LATCH BS-84013930
...
36
DOOR, Flat Grey (Used on models before S/N: 10251665) BS-AA315209GS
...
36
DOOR, Texture Grey (Used on models after S/N: 10251665) BS-AR315209GS
...
37
TRIM BS-311674GS
...
38
HINGE BS-705918
...
39
ROOF, Texture Grey (Used on models before S/N: 10251665) BS-AR313121GS
...
39
ROOF, Texture Grey (Used on models after S/N: 10251665) BS-AR313121GS

Main Unit

...
...
1
BASE BS-B311623GS
...
2
DUCT BS-313129GS
...
3
BRACKET BS-311636GS
...
4
SCREW BS-194561GS
...
5
CRADLE BS-B311625GS
...
6
PLUG, Hole BS-198460GS
...
7
BRACKET BS-314732GS
...
8
SCREW, HEX, 1/4-20X.5 BS-704130
...
9
SEAL BS-314676GS
...
11
MOUNT, Vibration BS-194783GS
...
15
DECAL SHEET, WARNINGS BS-705920
...
16
BOLT BS-315203GS
...
17
WASHER BS-203200GS
...
18
SOLENOID, Starter BS-691656
...
21
WIRE, Starter Solenoid Bracket to Alternator Ground Stud, 14 AWG Green BS-313222GS
...
22
NUT BS-67989GS
...
24
SEAL BS-770802
...
26
MUFFLER BS-797908GS
...
27
GASKET, Exhaust BS-690970
...
28
MOUNT, Vibration BS-194783GS
...
29
HOSE, Fuel BS-312079GS
...
30
ADAPTER, Engine BS-314734GS
...
31
NUT BS-189160GS
...
33
SCREW BS-708730
...
34
WASHER BS-27772GS
...
35
SWITCH BS-313228GS
...
36
PLATE, Temp Switch BS-314828GS
...
37
HOSE, Oil BS-1723165SM
...
38
COVER BS-798767
...
39
SEAL BS-313337GS
...
40
CABLE, Starter Solenoid to Starter Motor, 6 AWG Red BS-194659GS
...
41
CABLE, Battery Positive to Starter Solenoid, 6 AWG Red BS-311691GS
...
--
KIT, Manual, ACC (Not Illustrated) BS-318176GS
...
--
HOSE-FLEX NG/LPG (Not Illustrated) BS-202295GS
...
--
HARNESS, Power WIre (Not Illustrated) BS-315206GS
...
--
HANG TAG, Attn Standby Equipment (Not Illustrated) BS-195200GS
...
--
STRAP, Battery (Not Illustrated) BS-313789GS
...
--
KIT, LP Conversion (Not Illustrated) BS-313574GS
...
--
PAINT, Touchup, Charcoal (Optional Accessory) BS-203374GS
...
--
PAINT, Spray, Charcoal (Optional Accessory) BS-203417GS

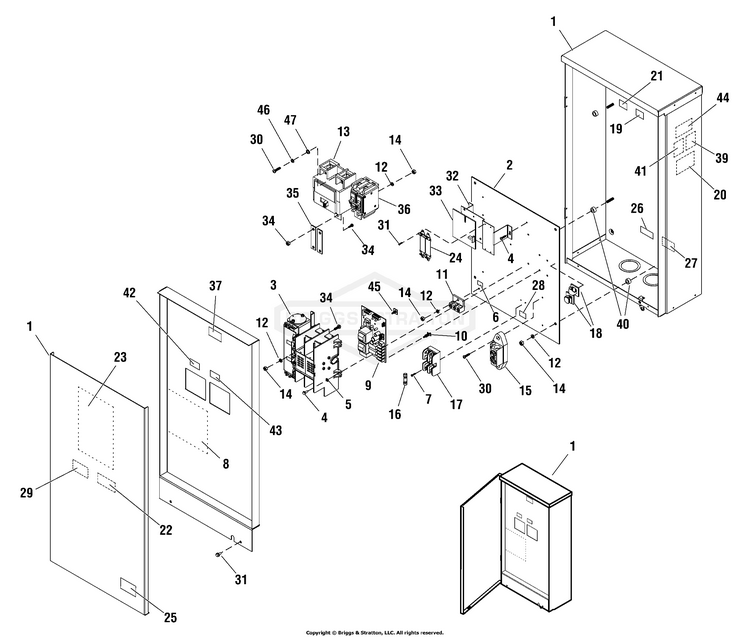

Transfer Switch - Hinged Enclosure

...
...
3
CONTACTOR, 200A BS-315050GS
...
6
DECAL SHEET, WARNINGS BS-705920
...
8
INSULATION, Dead Front BS-193664GS
...
9
BOARD-CIRCUIT BS-771701
...
10
SPACER, PCB Board, 1/2 BS-197979GS
...
11
TERMINAL, GROUND BS-84006973
...
13
BREAKER, Circuit, 200A BS-192065GS
...
15
TERMINAL, Neutral (Incl. Ref. No. 30 and bonding screw) BS-192696GS
...
16
FUSE, 10 Amp BS-205110GS
...
17
HOLDER, Fuse BS-192151GS
...
18
CLIP BS-197355GS
...
19
DECAL, Connect Gen BS-B5107GS
...
20
DECAL BS-205478GS
...
21
DECAL, Connection, Utility BS-B5106GS
...
22
DECAL, Suit. as Service Equip. BS-192558GS
...
23
DECAL BS-205061GS
...
24
BRACKET BS-192770GS
...
25
DECAL, Warning Shock BS-205395GS
...
26
DECAL, Fuse, 10 Amp BS-205115GS
...
27
DECAL SHEET - LCG BS-705919
...
28
DECAL SHEET-WARNINGS BS-704418
...
29
DECAL, Breaker, Circuit BS-193450GS
...
32
BRACKET BS-201157GS
...
33
INSULATOR, Circuit Breaker BS-192879GS
...
35
BAR-BUS BS-319267GS
...
36
BREAKER, Circuit, 100A BS-311318GS
...
37
DECAL SHEET-WARNINGS BS-704420
...
39
DECAL SHEET-WARNINGS BS-704420
...
40
NUT, HEX, 3/8-16 BS-703577
...
41
DECAL SHEET-WARNINGS BS-704420
...
42
DECAL, Disconnect Utility BS-202758GS
...
43
DECAL, Gen Disconnect BS-202361GS
...
44
DECAL, Not Suitable BS-202760GS
...
45
STANDOFF BS-202841GS
...
--
SCREW, Bonding, 1/4-20 X 1 3/4" (Not Illustrated) BS-84007447
...
--
DECAL, Service Disconnect (Not Illustrated) BS-193551GS
...
--
SCREW, Bonding, 1/4-20 X 1 3/4" (Not Illustrated) BS-84007447
...
--
CABLE, Transfer Switch to Generator Circuit Breaker, 4 AWG Black (Not Illustrated) BS-704240
...
--
HARNESS, Wiring ATS (Not Illustrated) BS-201285GS
...
--
TRANSFORMER (Not Illustrated) BS-208106GS
