040348CA-00 Briggs and Stratton 15,000 Watt Home Generator System

Model: 040348CA-00

Save Part Not Listed?
product name

Popular Parts

Popular Parts

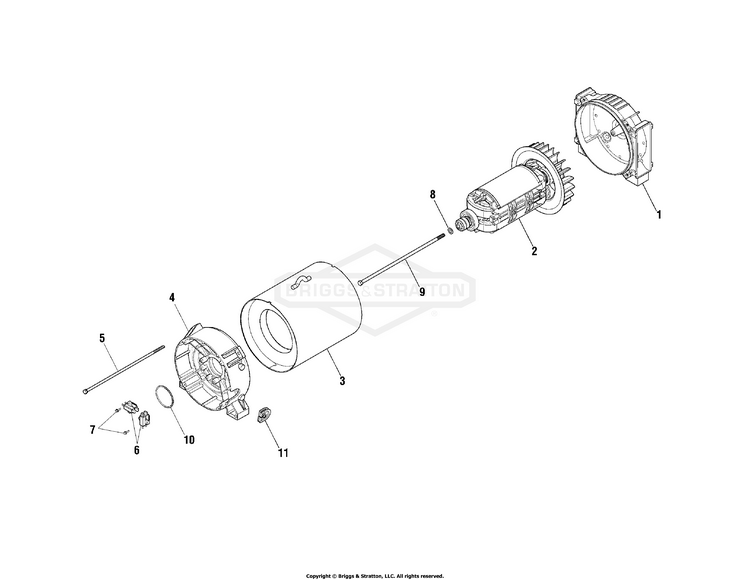

Alternator Group

...
...
1
ADAPTER, Engine BS-195235GS
...
2
ROTOR BS-706425
...
3
STATOR BS-316176GS
...
4
RBC BS-195234GS
...
5
SCREW BS-315199GS
...
6
BRUSH ASSEMBLY BS-66386GS
...
7
HHCS, M5-0.8 X 16 BS-49815GS
...
8
WASHER BS-203200GS
...
9
BOLT BS-315204GS
...
10
O-RING BS-199888GS
...
11
GROMMET BS-315440GS

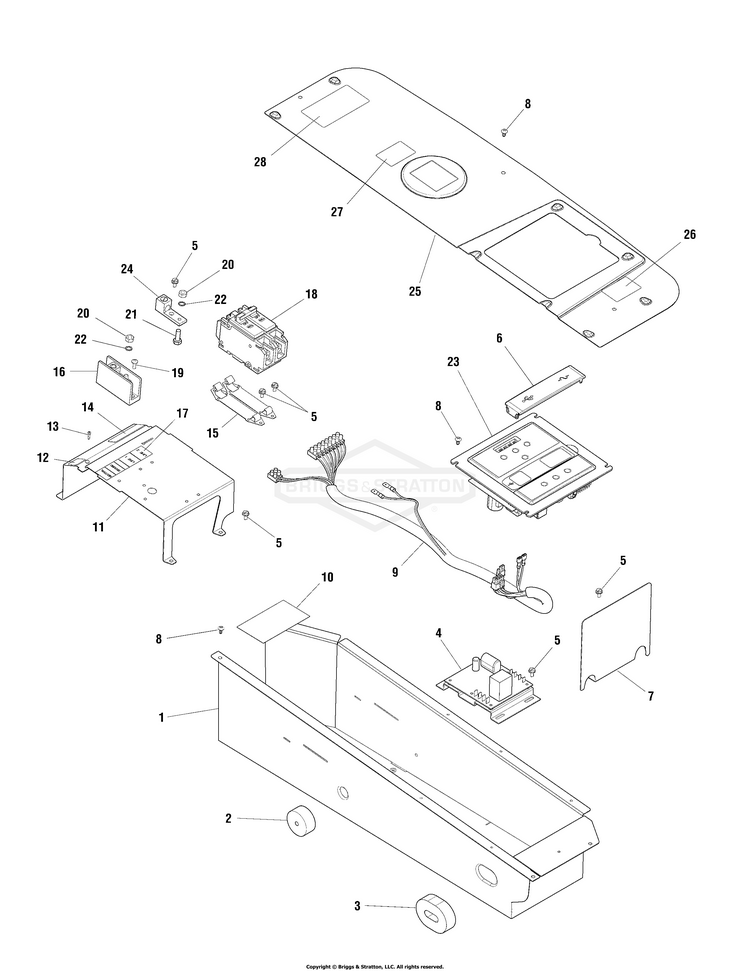

Control Panel Group

...
...
1
BOX, Control BS-314631GS
...
2
SEAL BS-316948GS
...
3
SEAL BS-316205GS
...
4
REGULATOR, Voltage BS-707157
...
6
DOOR, Access BS-319009GS
...
7
BRACKET BS-314632GS
...
9
HARNESS-WIRE BS-314639GS
...
10
DECAL SHEET, Warnings BS-318449GS
...
11
BRACKET BS-314633GS
...
12
DECAL, Terminal Strip BS-317371GS
...
14
DECAL, Terminal Strip BS-317368GS
...
15
BRACKET, Mounting / Breaker BS-192770GS
...
16
BLOCK, Terminal BS-208365GS
...
17
DECAL BS-313585GS
...
18
BREAKER, Circuit 70A, 2P BS-311317GS
...
23
PANEL-CONTROL (**See Footnote) BS-315423GS
...
24
LUG, Ground Connect BS-199011GS
...
25
COVER-CONTROL PANEL BS-BA314635GS
...
26
DECAL SHEET, Warnings BS-318449GS
...
27
DECAL SHEET, Warnings BS-318449GS
...
28
DECAL SHEET, Warnings BS-318449GS
...
29
FUSE, Auto Type, 15 Amp (Not Illustrated) BS-84010838
...
30
ACCESSORY, KIT, OFF BOARD RADIO (Not Illustrated) BS-6479

Enclosure Group

...
...
1
BASE BS-706061
...
2
PANEL-END, LEFT BS-AR314645GS
...
3
SUPPORT-RAIL BS-314638GS
...
4
INSULATION BS-315447GS
...
5
PANEL-FRONT BS-318243GS
...
8
LATCH BS-314619GS
...
9
KEY-LATCH BS-314290GS
...
10
SCREW, HEX, 1/4-20X.5 BS-704130
...
11
LATCH-ARM BS-315443GS
...
12
INSULATION BS-315453GS
...
13
PANEL-END, RIGHT BS-AR314694GS
...
14
INSULATION BS-315452GS
...
15
ROOF BS-318235GS
...
16
DECAL SHEET-WARNINGS (Includes Ref. Nos. 16-1, 16-2 & 16-3) BS-318449GS
...
17
DECAL BS-317921GS
...
19
SCREW BS-311644GS
...
20
TRIM BS-316954GS
...
21
PANEL-BACK BS-AR314651GS
...
22
PANEL-CORNER BS-AR314681GS
...
23
SUPPORT-RAIL BS-314652GS
...
24
BRACKET-ROOF SUPPORT BS-314647GS
...
25
PANEL-CORNER BS-AR314644GS
...
26
BRACE BS-314646GS
...
27
SHOCK, Roof BS-314649GS
...
28
BRACE BS-314672GS
...
29
BRACKET-ROOF SUPPORT BS-314679GS
...
30
SUPPORT BS-314625GS
...
31
PANEL-INTAKE, ALTERNATOR BS-314684GS
...
32
CLIP BS-314661GS
...
33
SEAL BS-314682GS
...
34
SEAL BS-311692GS
...
36
DUCT-ALTERNATOR BS-314626GS
...
37
SEAL BS-315454GS
...
38
PANEL-MUFFLER BS-314624GS
...
39
PANEL-MUFFLER, BOTTOM BS-314620GS
...
41
PANEL-MUFFLER, TOP BS-314621GS
...
42
DEFLECTOR-MUFFLER BS-706059
...
43
DEFLECTOR-MUFFLER BS-706059
...
44
SEAL BS-316951GS
...
45
PANEL-INTAKE, ENGINE BS-314683GS
...
46
TRIM BS-316202GS
...
48
PLUG BS-198460GS
...
49
SCREW BS-194561GS
...
50
SCREEN BS-316194GS
...
51
SUPPORT BS-315444GS
...
--
PLUG-ROOF (Not Illustrated) BS-316193GS

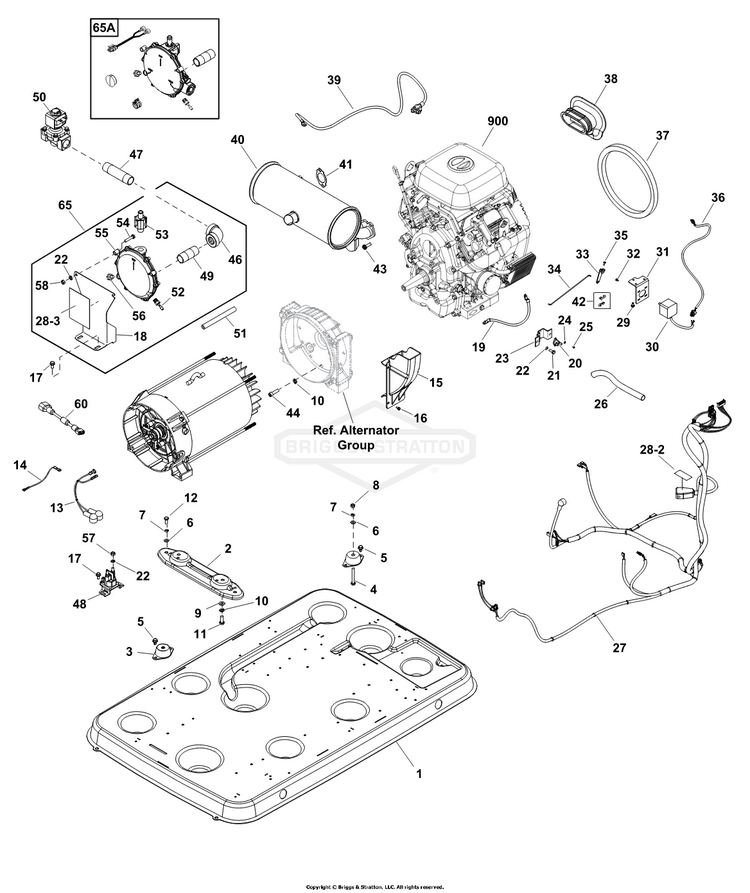

Main Unit Group

...
...
1
BASE BS-706061
...
2
BRACKET BS-B198896GS
...
3
MOUNT, Vibration BS-187594GS
...
5
CAPSCREW, Hex Head, Trilobular, 5/16, 18 x 1/2 BS-24910GS
...
13
HARNESS BS-316188GS
...
14
WIRE, Ground Relay BS-316961GS
...
15
DUCT BS-314628GS
...
17
SCREW, HEX, 1/4-20X.5 BS-704130
...
18
BRACKET BS-706379
...
19
WIRE, Ground BS-314641GS
...
20
SWITCH, Temp BS-204426GS
...
21
HANDLE BS-84010594
...
23
PLATE, Switch BS-313561GS
...
25
SCREW BS-708730
...
26
HOSE, Oil BS-1723165SM
...
27
HARNESS, Wiring BS-314637GS
...
28-2
DECAL SHEET, Warnings BS-318449GS
...
28-3
DECAL SHEET, Warnings BS-318449GS
...
29
SCREW BS-194561GS
...
30
MOTOR, Stepper BS-707181
...
31
MOTOR, Stepper BS-707181
...
33
MOTOR, Stepper BS-707181
...
34
ROD BS-317323GS
...
36
HARNESS, Wiring BS-317480GS
...
37
SEAL BS-315454GS
...
38
SNORKEL BS-314642GS
...
39
WIRE, Battery, Ground BS-314640GS
...
40
MUFFLER BS-314663GS
...
41
GASKET BS-809872
...
42
CLEVIS BS-845699
...
44
SCREW BS-23645GS
...
46
ELBOW BS-312781GS
...
47
FITTING BS-318459GS
...
48
SOLENOID, Starter BS-691656
...
49
FITTING BS-206976GS
...
50
SOLENOID BS-318880GS
...
51
TUBE BS-314662GS
...
52
FITTING, Barb BS-314693GS
...
55
REGULATOR, FUEL BS-84012834
...
56
FITTING BS-318002GS
...
59
DECAL SHEET, Warnings BS-318449GS
...
61
SCREW, HEX, 1/4-20X.5 BS-704130
...
60
BRACKET BS-706379
...
62
WIRE, Ground Relay BS-316961GS
...
63
HARNESS BS-316188GS
...
65
REGULATOR, FUEL (No Longer Available) (See Reference 65A for Service) BS-84012834
...
65A
REGULATOR, FUEL (Includes Ref. Nos. 49, 52, 55, 56) BS-84012834
...
--
KIT, Accessory (Not Illustrated) BS-318937GS
...
--
KIT, Hardware (Not Illustrated) BS-318973GS
...
--
HOSE-FLEX NG/LPG (Not Illustrated) BS-202295GS
...
--
PAINT, Touch Up, Cont Charcoal Texture (Not Illustrated) BS-319693GS
...
--
HANG TAG, Attn Standby Equipment (Not Illustrated) BS-195200GS
...
--
PAINT, Spray, Cont Charcoal, Texture (Optional Accessory) BS-319677GS
...
--
PLATE, Warmer (Optional Accessory) BS-314941GS
...
--
ACC, KIT, MAINTENANCE, 17-26000 (Optional Accessory) BS-6872
...
--
KIT, Wireless Monitor (Optional Accessory) BS-6229
...
--
KIT, Cold Weather (Includes Battery & Oil Warmers) (Optional Accessory) BS-6231
...
--
KIT, Oil Warmers (Optional Accessory) BS-6254
...
--
KIT, Fuel Regulator (Low Pressure Applications Only) (Optional Accessory) BS-6331

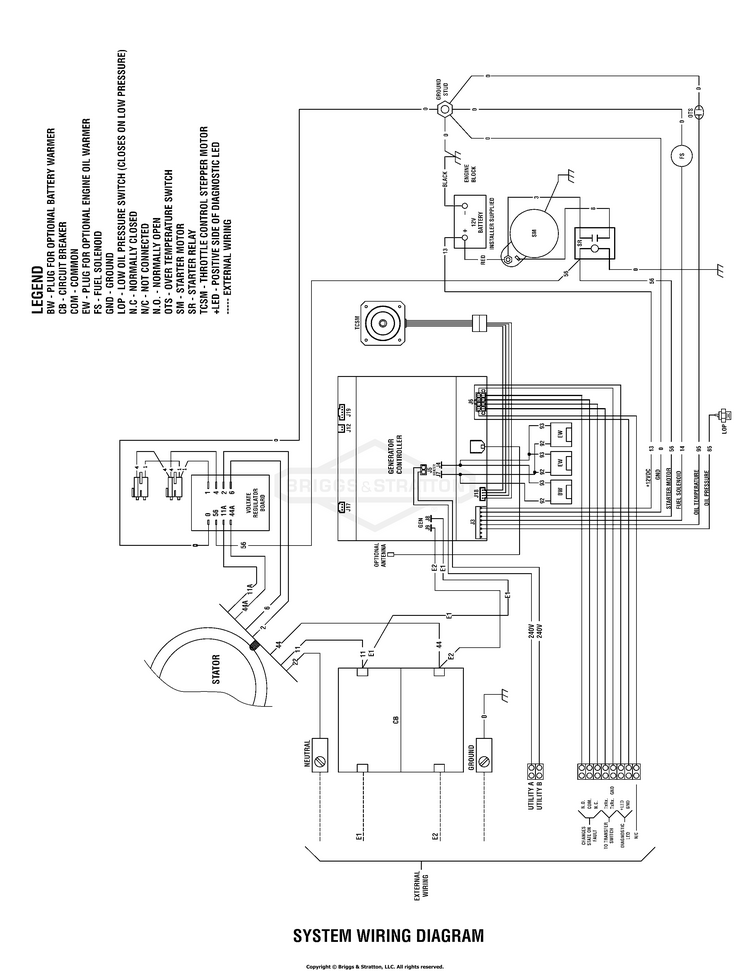

Wiring Diagram - Standby Generator

...

No Parts Available for this Schematic

Wiring Schematic - Standby Generator

...

No Parts Available for this Schematic
