040226-0 Briggs and Stratton 20,000 Watt Home Generator System

Model: 040226-0

Save
Part Not Listed?Part Not Listed?
product name

Alternator Group

...
...
1
ADAPTER, Engine BS-195235GS

...
2

...
3


...
5

...
6
ASSEMBLY, Brush BS-66386GS

...
7
TAPTITE, M5-0.8 x 16 BS-66849GS

...
8

...

Control Panel Group

...
...
1
COVER, Circuit Breaker w/Decals BS-198911GS

...
3
BREAKER, Circuit, 100A BS-311318GS

...
4
BRACKET, Mounting / Breaker BS-192770GS


...
6
PLASTITE BS-191991GS

...
7
FUSE, Auto Type, 15 Amp BS-84010838

...
8
CONTROL PANEL ASSEMBLY BS-311353GS

...
9

...
10

...
12
DECAL, TerminalBlock BS-198549GS

...
13
DECAL, Ground, Neutral BS-198550GS

...
14
DECAL, Warning, Outdoor Install BS-205393GS

...
15

...
16
DECAL SHEET, WARNINGS BS-705920

...
17
DECAL, Caution, Electric Shock BS-205394GS

...
18
DECAL, Warning Shock BS-205395GS

...
20
HARNESS, WIRING BS-198517GS

...
23
CONNECTOR, 2 Pin BS-198515GS

...
24
CONNECTOR, 10 Pin BS-198516GS

...
--
HARNESS, Wiring (Not Shown) BS-202882GS

...
--
HARNESS, AVR (Not Shown) BS-203020GS

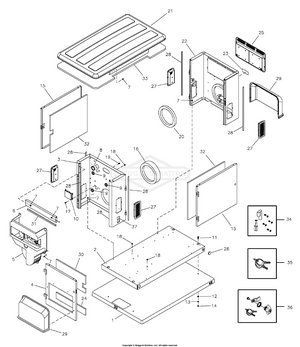

Enclosure Group

...
...
1
PAD, Mounting w/ Holes BS-197275GS


...
3
BULKHEAD, Engine BS-202984GS

...

...

...
6
SUPPORT, Rail BS-198993GS

...
7
SCREW, HEX, 1/4-20X.5 BS-704130

...
8
BUSHING, Snap BS-203015GS

...
9
BUSHING, Snap BS-197493GS

...
10
REGULATOR, Voltage BS-198338GS

...
12
WASHER, Flat 3/8" BS-22131GS

...
13
DECAL, Independent Suspension BS-5022237

...
14
NUT, 3/8-16 BS-22241GP

...
15

...
16

...
17
TAPTITE BS-192778GS

...
18
MOUNT, Tie Wrap BS-195733GS

...
19

...
20
SEAL-FOAM BS-770424

...
21

...
22
BULKHEAD, Alternator BS-202988GS

...
23

...
24
INSULATION BS-203303GS

...
25

...
26
PLUG, Hole BS-198460GS

...
27

...
28
SEAL, Foam BS-198888GS

...
29
COVER, Air Intake BS-194694GS

...
30
INSULATION BS-203302GS

...
31
SEAL, Foam BS-197312GS

...
32
INSULATION BS-196397GS

...
33
INSULATION BS-195597GS

...
34

...
35
KEY, Latch BS-207652GS

...
36

...
37

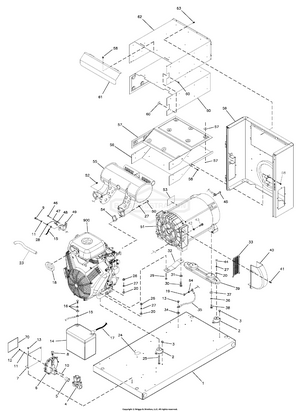

Main Unit Group

...

...
2
MOUNT, Vibration BS-187594GS

...
3
CAPSCREW, Hex Head, Trilobular, 5/16, 18 x 1/2 BS-24910GS

...
4
SOLENOID, Gas Fuel BS-194683GS

...
5
FITTING BS-194829GS

...
6
REGULATOR, NG/LPG BS-194830GS

...
7
BRACKET BS-313562GS

...
8
FITTING, 3/4 Flare to 3/8 NPT BS-202382GS

...
13
SCREW, HEX, 1/4-20X.5 BS-704130

...
14
BATTERY BS-194818GS

...

...
16
KIT, Battery Hardware BS-198913GS

...

...
18
SEAL-FOAM BS-770423

...
19

...
23
HOSE, Oil Drain BS-1723165SM

...
24
DECAL, Operation Instructions BS-186640GS

...

...
32
SUPPORT, Engine BS-B194685GS

...
33

...

...
39
SUPPORT, Alternator BS-B198896GS

...
40

...
45
SCREW, HEX, 1/4-20X.5 BS-704130

...
48
SWITCH, Temp BS-204426GS

...
49
PLATE, Temp Switch BS-313561GS

...
50

...
52

...
53
DECAL SHEET, WARNINGS BS-705920

...
54
GASKET BS-809872

...
55

...
56

...
57
INSULATION BS-203533GS

...
58
CRIMPTITE, 10-24 x 1/2 BS-56893GS

...
59
BULKHEAD, Alternator BS-202988GS

...
60
INSULATION BS-203534GS

...
61
COLLECTOR, Muffler Box BS-194682GS

...
62
BOX, Muffler Top BS-202883GS

...
63
SCREW, 10-32 x 5/8 BS-192445GS

...
70
DECAL, Requirements, Fuel BS-205397GS

...
--
MANUAL, Installation BS-202826GS

...
--
MANUAL, Operator’s BS-202827GS

...
--
MANUAL, Engine BS-277810TRI

...
--
KIT, Manual ACC BS-202944GS

...
--
PAINT, Touch Up, Gray BS-198810GS

...
--
PAINT, Touch Up, Silver BS-198811GS

...
--
CAP, Funnel, Oil Bottle BS-B3518GS

...
--
HOSE-FLEX NG/LPG (Not Shown) BS-202295GS

...
--
KIT,SERVICE,WALL PLATE BS-313326GS

...
--
KIT, Decal (Not Shown) BS-203438GS

...
--
FILTER, A/C Cartridge (Not Shown) BS-841856

...
--
FILTER, PreCleaner (Not Shown) BS-692520

...
--
FILTER, Oil (Not Shown) BS-842921

...
--
PAINT, Spray, Gray BS-199474GS

...
--
PAINT, Spray, Silver BS-199475GS

...
--
ACC, KIT, MAINTENANCE, 17-26000 BS-6872

...
--
KIT, Cold Weather (IncludesBattery and Oil Warmers) BS-6030
