040221-0 Briggs and Stratton 7,000 Watt Home Generator System

Model: 040221-0

Save Part Not Listed?
product name

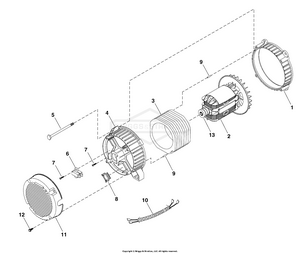

Alternator Group

...
...
1
ADAPTER, Alternator BS-209599GS
...
2
ROTOR BS-195430GS
...
3
STATOR, 7500VR150, BU BS-197304AGS
...
4
RBC, (with O-Ring, p/n 189197GS) BS-193336GS
...
5
CAPSCREW, SEMS, Hex Head, M6 - 1.0 x 140 BS-86308KGS
...
6
ASSY, Holder, Brush BS-66386GS
...
7
HHCS, M5-0.8 X 16 BS-49815GS
...
8
HOUSING, Receptacle BS-22694GS
...
9
PIN, Roll, 4mm x 10 BS-81917GS
...
10
Harness, Wire DC Charge BS-193472GS
...
11
COVER, Rear Bearing BS-192906GS
...
12
SCREW, M5-0.8 x 10,Taptite BS-74908GS
...
13
BEARING, Ball BS-65791GS

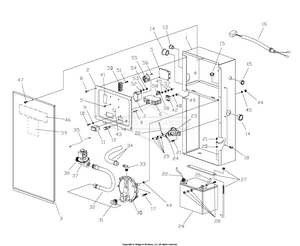

Control Panel Group

...
...
1
Assy, Control Box BS-195229GS
...
2
Assy, Panel, Control BS-199470GS
...
3
Panel, Back Cover BS-198990GS
...
4
Lamp, Led BS-B5133GS
...
5
Kit, Battery Charge Circuit w/Clips BS-195555GS
...
xx
Clip, Standoff, Fastex BS-186413GS
...
6
Breaker, Circuit, 30Amp BS-190818EGS
...
7
Relay, Plug In BS-195212GS
...
11
Switch BS-195218GS
...
12
Kit, Fuse Holder w/ Fuse BS-195006GS
...
13
Bushing, Snap 5/8" BS-192455GS
...
14
Bushing, Snap 1-3/8" BS-186173GS
...
15
Bushing, Snap 7/8" BS-186582GS
...
16
Wire Harness, Control BS-195369GS
...
18
Kit, Plastic Clips BS-195009GS
...
22
Wire-A, 6AWG, Red BS-193171GS
...
23
SOLENOID, Starter BS-691656
...
24
CABLE, Starter Solenoid to Starter Motor, 6 AWG Red BS-194659GS
...
25
Kit, Hardware Starter Contact BS-194251GS
...
26
Wire-A, Series w/2 Ring Lug BS-188573AGS
...
27
Kit, J-Bolt/Strap with Hardware BS-199844GS
...
28
Kit, Battery Hardware BS-193347GS
...
29
Battery BS-188443GS
...
30
REGULATOR, FUEL BS-84012834
...
31
Fitting, Elbow, 3/4 NPT BS-186151GS
...
32
Hose, Gas, Reg. to Valve BS-186148GS
...
33
Fitting, Elbow, 3/8 NPT BS-186150GS
...
34
Kit, Hose, Reg To Engine with Clamps BS-195005GS
...
35
Wire, 18 AWG, Blue BS-193537CGS
...
36
Fitting, Nipple, 3/4 x 2 BS-192449GS
...
37
SOLENOID, Gas Fuel BS-194683GS
...
38
Terminal, Ground BS-186345GS
...
41
DECAL, Operation Instructions BS-186640GS
...
42
Rectifier, Battery Charge BS-65795GS
...
43
DECAL SHEET, WARNINGS BS-705920
...
46
Decal, Operating Instructions BS-195356GS
...
50
Strip, Terminal 6 Pole BS-194096GS
...
55
Assy, Terminal Block BS-195559GS
...
59
Decal, Fuel Requirements BS-205397GS
...
xx
Resistor Items Not Illustrated BS-195371GS

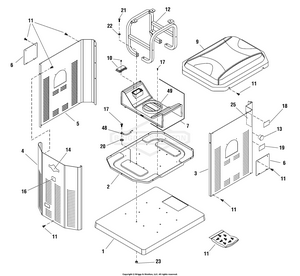

Enclosure Group

...
...
2
BASE BS-U191852GS
...
3
PANEL, Side BS-198989GS
...
4
PANEL, End BS-199333GS
...
5
PANEL, Side BS-199335GS
...
6
COVER, Oil Drain BS-U208787GS
...
7
DUCT (Includes Ref. No. 49) BS-195228GS
...
9
ROOF BS-199009GS
...
10
REGULATOR, Voltage BS-314338GS
...
11
KIT, Hardware, Enclosure BS-194991GS
...
12
CRADLE BS-B191860GS
...
13
PLUG, Hole BS-185976GS
...
14
DECAL BS-199296GS
...
16
DECAL BS-200409GS
...
18
DECAL BS-195642GS
...
19
DECAL, Operation Instructions BS-186640GS
...
25
DECAL BS-206824GS
...
48
WIRE BS-195496GS
...
49
SEAL, Foam BS-193061GS

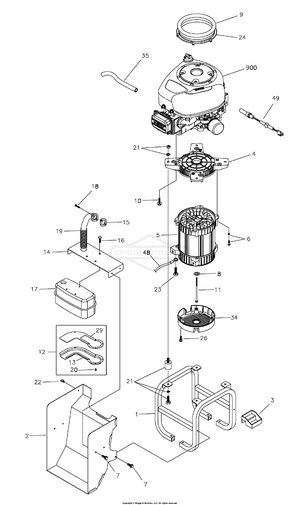

Main Unit Group

...
...
1
Weldment, Cradle BS-B191860GS
...
2
Assy, Duct, Air Muffler BS-194568GS
...
3
Tray, Oil Drain BS-193536GS
...
4
Adapter, Engine BS-191793GS
...
5
Assy, Alternator See Alternator BS-~NSP
...
6
Kit, Hardware Mounting Adapter BS-194728GS
...
8
Washer, 8.4 x 22.2 x 3 BS-96796GS
...
9
Seal, Engine Air Intake BS-193012GS
...
10
SCREW-HEX WSHR HD TAP BS-2828635SM
...
11
HHCS, 5/16-24 x 9.84 BS-187365HGS
...
12
Kit, Deflector Muffler Assy w/Hardware BS-207270GS
...
13
Assy, Deflector Muffler BS-193475GS
...
14
KIT-MUFFLER BS-315466GS
...
15
GASKET, Exhaust BS-692236
...
16
Screw, M8 1.25 x 15, Taptite BS-83512GS
...
17
Muffler BS-207059GS
...
18
SCREW BS-698941
...
19
Pipe, Exhaust BS-194159GS
...
20
Kit, Muffler Hardware BS-195008GS
...
21
Kit, Vibration Mount BS-194209GS
...
22
Clip, Retainer Fuel Hose BS-192940GS
...
24
Collar, Inlet Air BS-192853GS
...
26
Screw, M5- .8 x 10 Taptite BS-74908GS
...
34
Cover Bearing BS-192906GS
...
35
Hose, Oil Drain BS-1723165SM
...
48
Wire, Ground BS-15253621GS
...
49
Warmer, Oil BS-01916
...
xx
Manual, Operator’s Items Not Illustrated BS-199003GS
...
xx
MANUAL, Operator's Items Not Illustrated BS-276344TRI
...
xx
Kit, Manual/Accessory, ELS Items Not Illustrated BS-198999GS
...
xx
Assy, Disconnect Box Items Not Illustrated BS-194089GS
...
xx
Paint, Touchup, Gray Items Not Illustrated BS-198810GS
...
xx
HOSE-FLEX NG/LPG Items Not Illustrated BS-202295GS
...
xx
Assy, Plate Status, Manual Items Not Illustrated BS-195050GS
...
xx
Kit, Conversion, LP Items Not Illustrated BS-195069GS
...
xx
Bit, Screw Items Not Illustrated BS-196731BGS
...
xx
Warmer, Battery Optional Accessories BS-01915
...
xx
Paint, Touchup Spray, 12oz, Gray Optional Accessories BS-199474GS

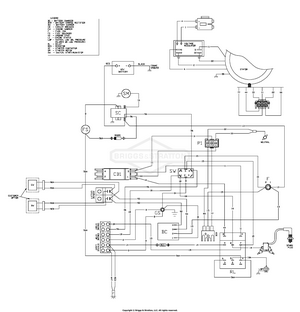

Wiring Diagram

...

No Parts Available for this Schematic

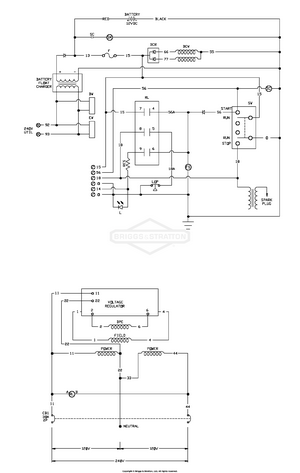

Wiring Schematic

...

No Parts Available for this Schematic
