040213-0 Briggs and Stratton 15,000 Watt Home Generator System

Model: 040213-0

Save Part Not Listed?
product name

Alternator Group

...
...
1
BOX, Terminal Lid BS-199339GS
...
2
CARRIER, Bearing BS-199340GS
...
3
STATOR BS-199351GS
...
4
ADAPTER, Engine BS-199349GS
...
5
PLUG, Hole BS-199338GS
...
7
BOLT BS-199341GS
...
8
BEARING BS-199342GS
...
9
ROTOR BS-199343GS
...
10
RING, Fixing BS-199344GS
...
11
FAN BS-199345GS
...
12
SCREEN BS-199350GS
...
14
BOLT BS-199348GS
...
15
CAPACITOR BS-312700GS
...
16
BOARD, Terminal BS-199346GS
...
17
NUT BS-199352GS
...
18
WASHER, Flat BS-199353GS

Control Panel Group

...
...
1
COVER BS-198911GS
...
2
SCREW, Plastite, 10 x 5/8 BS-B3311GS
...
3
BREAKER, Circuit 70A, 2P BS-311317GS
...
4
BRACKET, Mounting Breaker BS-192770GS
...
5
LUG, Ground Connect BS-199011GS
...
6
BOLT, Plastite, 1/4-10 x 1 BS-191991GS
...
7
FUSE, Auto Type, 15 Amp BS-84010838
...
8
PANEL, Control BS-311353GS
...
9
Screw, PT, M4 - 1.79 x 16.0 BS-197492GS
...
10
DUCT BS-198910GS
...
12
DECAL, Terminal Block BS-198549GS
...
13
DECAL, Ground, Neutral BS-198550GS
...
14
DECAL, Warning, Outdoor Install BS-205393GS
...
15
DECAL, Caution, Standby BS-193297GS
...
16
DECAL SHEET, WARNINGS BS-705920
...
17
DECAL, Caution, Electric Shock BS-205394GS
...
18
DECAL, Warning Shock BS-205395GS
...
20
HARNESS, Wiring BS-198517GS
...
23
CONNECTOR, Terminal, 2 Pin BS-198515GS
...
24
CONNECTOR, Terminal, 10 Pin BS-198516GS
...
--
HARNESS, Wiring (Not Illustrated) BS-194825GS

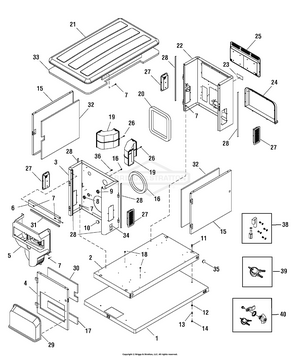

Enclosure Group

...
...
1
PAD, Mounting BS-197275GS
...
2
BASE, Mounting BS-T203030GS
...
3
BULKHEAD ASSEMBLY, Engine BS-198915GS
...
4
DOOR ASSEMBLY, Engine BS-198891GS
...
5
DUCT ASSEMBLY, Engine Air BS-198910GS
...
6
SUPPORT RAIL ASSEMBLY BS-198917GS
...
7
SCREW, HEX, 1/4-20X.5 BS-704130
...
8
BUSHING, Snap, 1-3/8" BS-186173GS
...
9
BUSHING, Snap, 1-1/2" BS-197493GS
...
10
PLUG, Dome, 1-1/2" BS-198461GS
...
15
DOOR ASSEMBLY BS-198892GS
...
16
SEAL, Foam BS-199629GS
...
17
INSULATION, Engine Door, Bottom BS-203303GS
...
18
MOUNT, Tie Wrap BS-195733GS
...
19
DUCT BS-195935GS
...
20
SEAL, Foam, Alt Inlet BS-194820GS
...
21
ROOF ASSEMLBY BS-198893GS
...
22
BULKHEAD ASSEMBLY, Alternator BS-198916GS
...
23
DECAL, Caution Hot Muffler BS-200409GS
...
24
COVER, Air Intake Alternator BS-194679GS
...
25
VENT ASSEMBLY, Exhaust BS-198926GS
...
26
Clip BS-B1797GS
...
27
VENT ASSEMBLY, Alternator BS-198927GS
...
28
SEAL, Foam BS-198888GS
...
29
COVER, Air Intake Engine BS-194694GS
...
30
INSULATION, Engine Door, Top BS-203302GS
...
31
SEAL, Foam BS-197312GS
...
32
INSULATION, Front/Rear Door BS-196397GS
...
33
INSULATION, Roof BS-195597GS
...
34
DECAL, Operation Instructions BS-186640GS
...
35
PLUG, Dome BS-198460GS
...
36
RETAINER, Hose BS-192940GS
...
38
HINGE BS-198890GS
...
39
KEY, Latch BS-194828GS
...
40
LATCH BS-204700GS

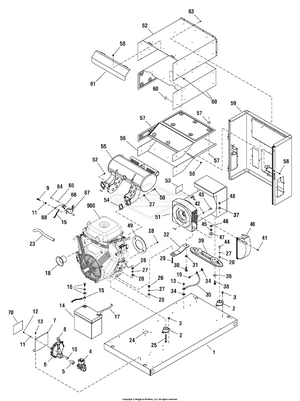

Main Unit Group

...
...
1
BASE BS-T203030GS
...
2
MOUNT, Vibration BS-187594GS
...
3
CAPSCREW, Hex Head, Trilobular, 5/16, 18 x 1/2 BS-24910GS
...
4
SOLENOID, Gas Fuel BS-194683GS
...
5
FITTING, Coupling BS-194829GS
...
6
REGULATOR, NG / LPG BS-194830GS
...
7
BRACKET BS-313562GS
...
8
FITTING BS-842184
...
13
SCREW, HEX, 1/4-20X.5 BS-704130
...
14
BATTERY BS-194818GS
...
15
WIRE-A, Black BS-185939RGS
...
16
KIT, Hardware, Battery BS-198913GS
...
17
WIRE-A, Red BS-198593AGS
...
18
TUBE BS-194813GS
...
23
HOSE, Oil Drain BS-1723165SM
...
24
DECAL, Operation Instructions BS-186640GS
...
32
SUPPORT, Alternator BS-B194685GS
...
35
WIRE BS-186790HGS
...
39
SUPPORT, Alternator BS-B198896GS
...
40
DUCT, Air BS-196387GS
...
49
DISK, Engine Air BS-B4260GS
...
50
SCREW BS-846149
...
52
SCREW BS-692062
...
53
DECAL SHEET, WARNINGS BS-705920
...
54
GASKET BS-809872
...
55
MUFFLER BS-197164GS
...
56
BASE, Muffler Box BS-194681GS
...
57
KIT, Insulation, Muffler Base BS-198928GS
...
58
CRIMPTITE, 10 - 24 x 1/2 BS-56893GS
...
59
BULKHEAD ASSEMLBY, Alternator BS-198916GS
...
60
INSULATION BS-198929GS
...
61
COLLECTOR BS-194682GS
...
62
BOX, Muffler Top BS-194680GS
...
63
SCREW, 10-32 x 5/8 BS-192445GS
...
66
SWITCH, Temp BS-204426GS
...
67
PLATE, Temp Switch BS-313561GS
...
68
WIRE BS-186790CGS
...
70
DECAL, Requirements, Fuel BS-205397GS
...
--
MANUAL, Installation (Not Illustrated) BS-199327GS
...
--
MANUAL, Operator's (Not Illustrated) BS-194689GS
...
--
MANUAL, Engine (Not Illustrated) BS-279551TRI
...
--
KIT, Manual ACC (Not Illustrated) BS-196195GS
...
--
PAINT, Touchup, Metallic Silver, 1/2 oz (Not Illustrated) BS-198811GS
...
--
FILTER, A/C Cartridge (Not Illustrated) BS-841856
...
--
FILTER, Pre-Cleaner (Not Illustrated) BS-692520
...
--
FILTER, Oil (Not Illustrated) BS-842921
...
--
CAP, Funnel Oil Bottle (Not Illustrated) BS-B3518GS
...
--
HOSE-FLEX NG/LPG (Not Illustrated) BS-202295GS
...
--
KIT, Decals, Service (Not Illustrated) BS-198918GS
...
--
PAINT, Touchup, Spray, Silver, 12oz (Optional Accessory) BS-199475GS
...
--
ACC, Cold Weather Breather Kit (Optional Accessory) BS-6174
...
--
ACC, KIT, MAINTENANCE, 17-26000 (Optional Accessory) BS-6872
...
--
KIT, Cold Weather (Includes Battery & Oil Warmers) (Optional Accessory) BS-6030
...
--
KIT, Cold Weather (Optional Accessory) BS-6030

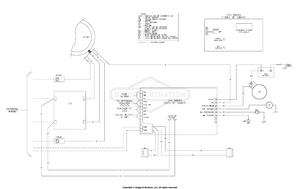

Wiring Diagram

...

No Parts Available for this Schematic

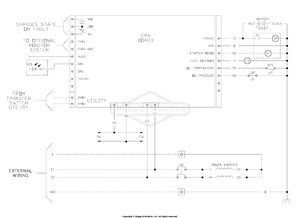

Wiring Schematic

...

No Parts Available for this Schematic
