040211-0 Briggs and Stratton 20,000 Watt Home Generator System

Model: 040211-0

Save Part Not Listed?
product name

Popular Parts

Popular Parts

Alternator Group

...
...
1
ADAPTER, Engine BS-195235GS
...
2
ROTOR BS-706426
...
3
STATOR BS-199254GS
...
4
RBC BS-195234GS
...
5
SCREW BS-315199GS
...
6
BRUSH ASSEMBLY BS-66386GS
...
7
HHCS, M5-0.8 X 16 BS-49815GS
...
8
WASHER BS-203200GS
...
9
BOLT BS-315204GS
...
10
O-Ring BS-199888GS

Control Panel Group

...
...
1
ASSY, Cover, Circuit Breaker w/ Decals BS-198911GS
...
2
SCREW, Plastite, 10 x 0.62 BS-B3311GS
...
3
BREAKER, Circuit, 100A BS-311318GS
...
4
BRACKET, Mounting Breaker BS-192770GS
...
5
LUG, Ground Connect BS-199011GS
...
6
BOLT, Plastite, 1/4-10 x 1 BS-191991GS
...
7
FUSE, Auto Type, 15 Amp BS-84010838
...
8
ASSEMBLY, Control Panel BS-311353GS
...
9
SCREW, PT, M4 - 1.79 x 16.0 BS-197492GS
...
10
ASSY, Duct, Engine Air w/ Decals BS-198910GS
...
12
DECAL, Terminal Block BS-198549GS
...
13
DECAL, Ground, Neutral BS-198550GS
...
14
DECAL, Warning, Outdoor Install BS-205393GS
...
15
DECAL, Caution, Standby BS-193297GS
...
16
DECAL SHEET, WARNINGS BS-705920
...
17
DECAL, Caution, Electric Shock BS-205394GS
...
18
DECAL, Warning Shock BS-205395GS
...
20
HARNESS, Wire, E1 & E2 Sensing BS-198517GS
...
23
CONNECTOR, Terminal, 2 Pin BS-198515GS
...
24
CONNECTOR, Terminal, 10 Pin BS-198516GS
...
--
HARNESS, Wire, CTL Board to Eng/Alt (Not Illustrated) BS-202882GS
...
--
HARNESS, AVR (Not Illustrated) BS-203020GS

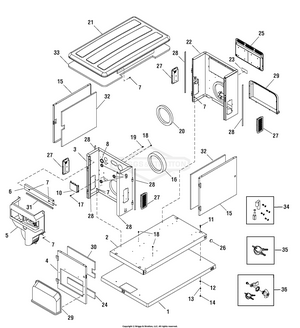

Enclosure Group

...
...
1
PAD, Mounting w/Holes BS-197275GS
...
2
BASE, Mounting BS-T203030GS
...
3
ASSY, Bulkhead, Eng End BS-202987GS
...
4
ASSY, Door, Eng. End BS-198891GS
...
5
ASSY, Duct, Engine Air BS-198910GS
...
6
ASSY, Support, Rail BS-198917GS
...
7
SCREW, HEX, 1/4-20X.5 BS-704130
...
8
BUSHING, Snap, 2" BS-203015GS
...
9
BUSHING, Snap, 1-1/2" BS-197493GS
...
10
REGULATOR, Voltage BS-707157
...
15
DOOR ASSEMBLY BS-198892GS
...
16
SEAL BS-770041
...
17
HHS, Trilobular, #8-32 x 1/2 BS-192778GS
...
18
MOUNT, Tie Wrap BS-195733GS
...
19
RETAINER, Hose BS-192940GS
...
20
SEAL-FOAM BS-770424
...
21
ASSY, Roof/Siderails BS-198893GS
...
22
ASSY, Bulkhead, Alt End BS-202985GS
...
23
DECAL, Caution Hot Muffler BS-200409GS
...
24
INSULATION, Engine Door, Bottom BS-203303GS
...
25
ASSY, Vent, Exhaust BS-198926GS
...
26
PLUG, Dome BS-198460GS
...
27
ASSY., Vent, Alt. BS-198927GS
...
28
SEAL, Foam BS-198888GS
...
29
COVER, Air Intake Engine BS-194694GS
...
30
INSULATION, Engine Door, Top BS-203302GS
...
31
SEAL, Foam BS-197312GS
...
32
INSULATION, Front/Rear Door BS-196397GS
...
33
INSULATION, Roof BS-195597GS
...
34
KIT, Door, Hinge BS-198890GS
...
35
SET, Latch Key BS-194828GS
...
36
KIT, Door Latch BS-198889GS

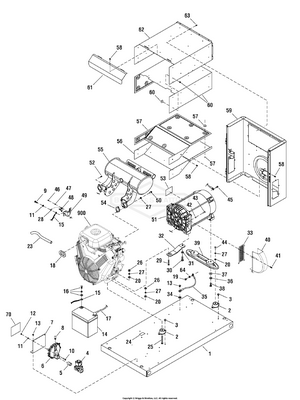

Main Unit Group

...
...
1
BASE, Mounting BS-T203030GS
...
2
MOUNT, Vibration BS-187594GS
...
3
CAPSCREW, Hex Head, Trilobular, 5/16, 18 x 1/2 BS-24910GS
...
4
SOLENOID, Gas Fuel BS-194683GS
...
5
FITTING, Coupling BS-194829GS
...
6
REGULATOR, NG / LPG BS-194830GS
...
7
BRACKET BS-313562GS
...
8
FITTING, 1/2 Flare 3/8 - 18 NPT BS-202382GS
...
13
SCREW, HEX, 1/4-20X.5 BS-704130
...
14
BATTERY BS-194818GS
...
15
CABLE, Battery, Black BS-185939UGS
...
16
KIT, Hardware, Battery BS-198913GS
...
17
CABLE, Battery, Red BS-198593DGS
...
18
SEAL-FOAM BS-770423
...
19
SCREW, Hex Head, Trilobular, 1/4-20 x 7/8 BS-B4995GS
...
23
HOSE, Oil Drain BS-1723165SM
...
24
DECAL, Operation Instructions BS-186640GS
...
28
WIRE, Ground BS-186790CGS
...
32
SUPPORT, Engint / Alternator, Black BS-B194685GS
...
33
SCREEN BS-202922GS
...
35
WIRE, Ground BS-185939WGS
...
39
BRACKET, Mounting Alternator, Black BS-B198896GS
...
40
DUCT, Air BS-202761GS
...
45
SCREW, HEX, 1/4-20X.5 BS-704130
...
48
SWITCH, Temp BS-204426GS
...
49
PLATE, Temp Switch BS-313561GS
...
50
SCREW BS-846149
...
52
SCREW BS-692062
...
53
DECAL, Caution Hot Surface BS-193506GS
...
54
GASKET, Exhaust BS-809872
...
55
MUFFLER BS-202885GS
...
56
BASE, Muffler Box BS-202884GS
...
57
KIT, Insulation, Muffler Box, Base BS-203533GS
...
58
SCREW, 10-24 x 1/2 Crimptite BS-56893GS
...
59
ASSY, Bulkhead, Alt End w/Insulation BS-202985GS
...
60
KIT, Insulation, Muffler Box, Top BS-203534GS
...
61
COLLECTOR, Muffler Box BS-194682GS
...
62
BOX, Muffler, Top BS-202883GS
...
63
SCREW, Phillips Truss Head, 10-32 x 5/8 BS-192445GS
...
70
DECAL, Requirements, Fuel BS-202896GS
...
--
MANUAL, Installation (Not Illustrated) BS-202826GS
...
--
MANUAL, Operator’s (Not Illustrated) BS-202827GS
...
--
MANUAL, Engine (Not Illustrated) BS-277810TRI
...
--
KIT, Manual/Accessory, HGS (Not Illustrated) BS-202814GS
...
--
PAINT, Touchup, Spray, Silver, 12oz (Not Illustrated) BS-199475GS
...
--
PAINT, Touch Up, 1/2oz Bottle, Metallic Silver (Not Illustrated) BS-198811GS
...
--
CAP, Funnel, Oil Bottle (Not Illustrated) BS-B3518GS
...
--
HOSE-FLEX NG/LPG (Not Illustrated) BS-202295GS
...
xx
KIT,SERVICE,WALL PLATE (Not Illustrated) BS-313326GS
...
--
KIT, Decals, Service (Not Illustrated) BS-203434GS
...
xx
FILTER, A/C Cartridge (Not Illustrated) BS-841856GS
...
xx
FILTER, Precleaner (Not Illustrated) BS-692520GS
...
xx
FILTER, Oil (Not Illustrated) BS-842921
...
--
KIT, Cold Weather (Includes Battery and Oil Warmers) (Optional Accessory, Not Included) BS-6030
...
--
ACC, KIT, MAINTENANCE, 17-26000 (Optional Accessory, Not Included) BS-6872

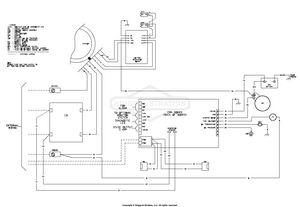

Wiring Diagram

...

No Parts Available for this Schematic

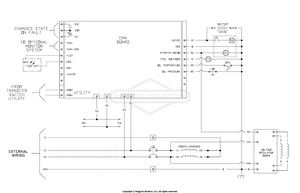

Wiring Schematic

...

No Parts Available for this Schematic
