040210-0 Briggs and Stratton 15,000 Watt Home Generator System

Model: 040210-0

Save
Part Not Listed?Part Not Listed?
product name

Alternator Group

...
...
1

...

...
3
ADAPTER, Engine BS-201397GS


...

...
6
ROTOR (Includes Items 4, 7 & 8) BS-201473GS

...
7

...
8
BEARING BS-201383GS

...
9

...
10
COVER, Side BS-201406GS

...
11
KIT-CAPACITORS BS-316920GS

...
12
CONNECTOR BS-201477GS

...
13
GROMMET BS-201478GS

...
14
CARRIER, Bearing BS-201407GS

...
15

...
17

Control Panel Group

...
...
1

...
3
BREAKER, Circuit 70A, 2P BS-311317GS

...
4
BRACKET, Mounting Breaker BS-192770GS

...
5
LUG, Ground Connect BS-199011GS

...
6
CAPSCREW, Plastite, 1/4-10 x 1 BS-191991GS

...
7
FUSE, Auto Type, 15 Amp BS-84010838

...
8
CONTROL PANEL ASSEMBLY BS-311353GS

...
9
SCREW, PT, M4 - 1.79 x 16.0 BS-197492GS

...
10

...
12
DECAL, Terminal Block BS-198549GS

...
13
DECAL, Ground, Neutral BS-198550GS

...
14
DECAL, Warning, Outdoor Install BS-205393GS

...
15
DECAL, Caution, Standby BS-193297GS

...
16
DECAL SHEET, WARNINGS BS-705920

...
17
DECAL, Caution, Electric Shock BS-205394GS

...
18
DECAL, Warning Shock BS-205395GS

...
20
WIRING HARNESS BS-198517GS

...
23
CONNECTOR, Terminal, 2 Pin BS-198515GS

...
24
CONNECTOR, Terminal, 10 Pin BS-198516GS

...
--
HARNESS, Wire, CTL Board to Engine/Alternator Items Not Illustrated BS-201085GS

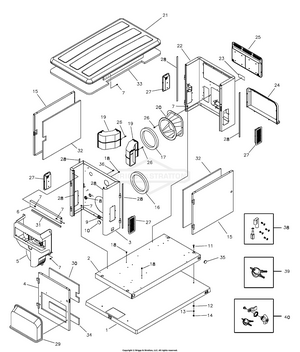

Enclosure Group

...
...
1
PAD, Mounting w/ Holes BS-197275GS


...
3
BULKHEAD ASSEMBLY, Engine End (Includes next 8 items) BS-198915GS

...
4
DOOR, Engine End (Includes next 3 items) BS-198986GS

...
5
DUCT, Engine Air (Includes next 3 items) BS-198910GS

...
6
RAIL, Support (Includes next 3 items) BS-198993GS

...
7
SCREW, HEX, 1/4-20X.5 BS-704130

...
8
BUSHING, Snap, 1-3/8 BS-186173GS

...
9
BUSHING, Snap, 1-1/2 BS-197493GS

...
10
PLUG, Hole BS-198461GS

...
15
DOOR (Includes next 4 items) BS-198987GS

...
16
SEAL, Foam BS-199629GS

...
17
SEAL, Foam, Alternator Air BS-201459GS

...
18
MOUNT, Tie Wrap BS-195733GS

...
19
DUCT, Rubber Alternator BS-195935GS

...
20
ADAPTER, Alternator BS-201058GS

...
21
ROOF ASSEMBLY, Roof/Siderails (Includes next 2 items) BS-198893GS

...
22
BULKHEAD ASSEMBLY, Alternator End (Includes next 4 items) BS-201282GS

...
23
DECAL, Caution Hot Muffler BS-200409GS

...
24
COVER, Air Intake Alternator BS-194679GS

...
25

...
26
CLIP, Tree BS-B1797GS

...
27

...
28
SEAL, Foam BS-198888GS

...
29
COVER, Air Intake Engine BS-194694GS

...
30
INSULATION, Engine Door, Top BS-203302GS

...
31
SEAL, Foam BS-197312GS

...
32
INSULATION, Front/Rear Door BS-196397GS

...
33
INSULATION, Roof BS-195597GS

...
34
INSULATION, Engine Door, Bottom BS-203303GS

...
35
PLUG, Hole BS-198460GS

...
36
RETAINER, Hose BS-192940GS

...
37
DECAL, Operation Instructions BS-186640GS

...
38
KIT, Door, Hinge BS-198890GS

...
39
KEY, Latch BS-207651GS

...
40

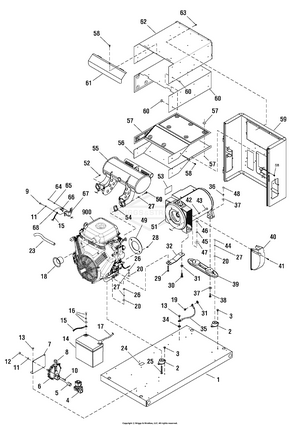

Main Unit Group

...

...
2
MOUNT, Vibration BS-187594GS

...
3
CAPSCREW, Hex Head, Trilobular, 5/16, 18 x 1/2 BS-24910GS

...
4
SOLENOID, Gas Fuel BS-194683GS

...
5
FITTING, Coupling BS-194829GS

...
6
REGULATOR BS-194830GS

...
7
BRACKET BS-313562GS

...
8
ASSEMBLY, Tee BS-842184

...
13
SCREW, HEX, 1/4-20X.5 BS-704130

...
14
BATTERY BS-194818GS

...
15
WIRE-A, Black BS-185939RGS

...
16
KIT, Battery Hardware BS-198913GS

...
17
WIRE-A, Red BS-198593AGS

...
18
TUBE, Air Cleaner BS-194813GS

...
23
HOSE, Oil Drain BS-1723165SM

...
24
DECAL, Operation Instructions BS-186640GS

...
32
SUPPORT, Engint / Alternator, Black BS-B194685GS

...
35
WIRE, Ground BS-186790GGS

...
39
SUPPORT, Alternator BS-B198896GS

...
40
DUCT, Air BS-196387GS

...
49
DISK, Engine Air BS-B4260GS

...
50

...
52

...
53
DECAL, Caution Hot Surface BS-193506GS

...
54
GASKET BS-809872

...
55
MUFFLER BS-197164GS

...
56
BASE, Muffler Box BS-194681GS

...
57
KIT, Insulation, Muffler Base BS-198928GS

...
58
CRIMPTITE, 10-24 x 1/2 BS-56893GS

...
59
ASSEMBLY, Bulkhead, Alternator End w/Insulation BS-201282GS

...
60
KIT, Insulation, Muffler Box BS-198929GS

...
61
COLLECTOR, Muffler Box BS-194682GS

...
62
BOX, Muffler Top BS-194680GS

...
63
SCREW. 10-32 x 5/8 BS-192445GS

...
66
SWITCH, Temp BS-204426GS

...
67
PLATE, Temp Switch BS-313561GS

...

...
70
DECAL, Requirements, Fuel BS-205397GS

...
--
MANUAL, Install (Not Shown) BS-199327GS

...
--
MANUAL, Operator’s (Not Shown) BS-194689GS

...
--
MANUAL, Engine (Not Shown) BS-277810TRI

...
--
KIT, Manual/Accessory HGS (Not Shown) BS-201275GS

...
--
PAINT, Touchup, Gray 1/2 oz Bottle (Not Shown) BS-198810GS

...
--
PAINT, Touchup, Silver 1/2 oz Bottle (Not Shown) BS-198811GS

...
--
CAP, Funnel Oil Bottle (Not Shown) BS-B3518GS

...
--
HOSE-FLEX NG/LPG (Not Shown) BS-202295GS

...
--
KIT,SERVICE,WALL PLATE (Not Shown) BS-313326GS

...
--
KIT, Decals, Service (Not Shown) BS-199356GS

...
--
FILTER, Air Cartridge (Not Shown) BS-841856

...
--
FILTER, Pre-Cleaner (Not Shown) BS-692520

...
--
FILTER, Oil (Not Shown) BS-842921

...
--
PAINT, Touchup, Spray, Silver, 12oz (Optional Accessory) BS-199475GS

...
--
PAINT, Touchup, Spray, Gray, 12oz (Optional Accessory) BS-199474GS

...
--
KIT, Cold Weather (Includes Battery and Oil Warmers) (Optional Accessory) BS-6030

...
--
ACC, KIT, MAINTENANCE, 17-26000 (Optional Accessory) BS-6872
...
...
...
