038017-01 Briggs and Stratton Generator 1800A MEA

Model: 038017-01

Save Part Not Listed?
product name

Alternator (104212)

...
...
1
CASTING, Front BS-104202GS
...
2
ROTOR ASSMEBLY BS-104978GS
...
5
BOLT, Flange, M8 x 205mm BS-104204GS
...
6
STATOR ASSEMBLY BS-104977GS
...
7
BAND, Stator BS-104218GS
...
8
CASTING, Rear BS-104203GS
...
10
SCREW, Flange, M6 x 130mm BS-104205GS
...
15
TERMINAL BLOCK ASSEMBLY BS-104219GS
...
16
BRUSH ASSEMBLY BS-104852GS
...
17
AUTOMATIC VOLTAGE REGULATOR BS-104201GS
...
18
COVER, Rear BS-104213GS
...
19
PLUG, Plastic BS-104209GS

Control Panel (104213)

...
...
1
COVER, Rear BS-104853GS
...
2
SOCKET, EU BS-104849GS
...
6
CIRCUIT BREAKER, 8A BS-104850GS

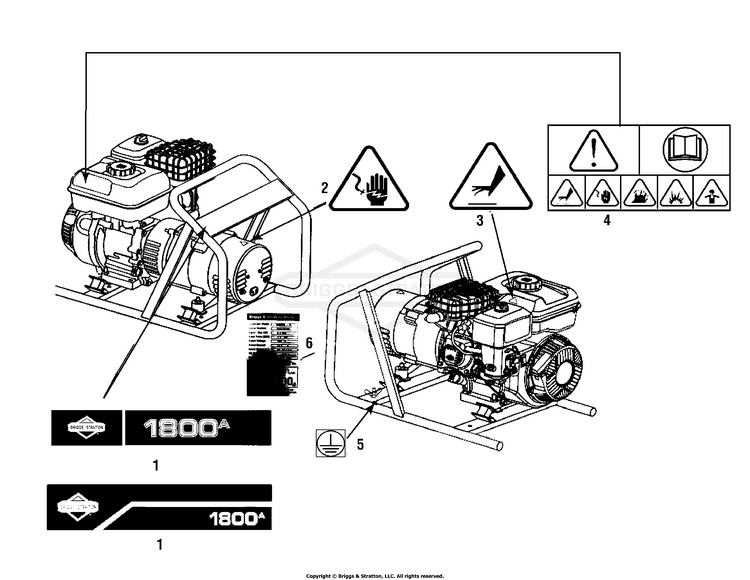

Decals (038017)

...
...
1
DECAL, 1800A (Used on model 038017-0) BS-104857GS
...
1
DECAL, 1800A (Used on model 038017-01) BS-105061GS
...
--
KIT, Decals (Includes Ref. Nos. 2, 3, 4 & 5) BS-103858GS

Main Unit (038017)

...
...
1
CRADLE, Black (Used on model 038017-0) BS-104851GS
...
1
CRADLE, Silver (Used on model 038017-01) BS-104207GS
...
2
** ENGINE BS-083132 0203B1
...
2
** ENGINE BS-083132 0229H1
...
3
ALTERNATOR ASSEMBLY BS-104212GS
...
5
MOUNT, Vibration, 44 Hardness BS-104208GS
...
9
WIRE, Ground BS-104214GS
...
10
MOUNT, Vibration BS-104215GS
