038016-0 Briggs and Stratton Generator 2400A MEA

Model: 038016-0

Save Part Not Listed?

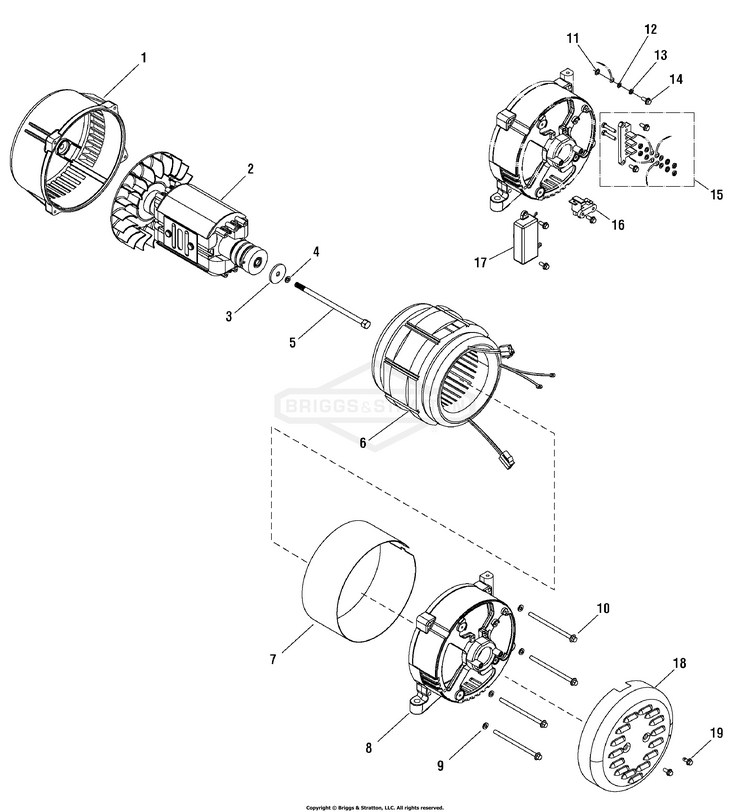

Alternator

CASING, Alternator, Front BS-103640GS

ROTOR ASSEMBLY BS-700446

BOLT, Flange, 5/16 * 7.87-24UNC BS-104082GS

STATOR ASSEMBLY BS-104083GS

STATOR BAND, Black BS-104084GS

CASING, Alternator, Rear BS-700448

SCREW, Flange, M6 x 120mm BS-104085GS

BLOCK-TERMINAL BS-707092

BRUSH ASSEMBLY BS-103650GS

AUTOMATIC VOLTAGE REGULATOR BS-103654GS

REAR COVER BS-103651GS

PLATE, Metal, Control Panel BS-103976GS

VOLTMETER, 0-300V BS-103625GS

SOCKET BS-707129

CIRCUIT BREAKER (8.5 A) BS-104087GS

BACK COVER ASSEMBLY, Control Panel BS-103978GS

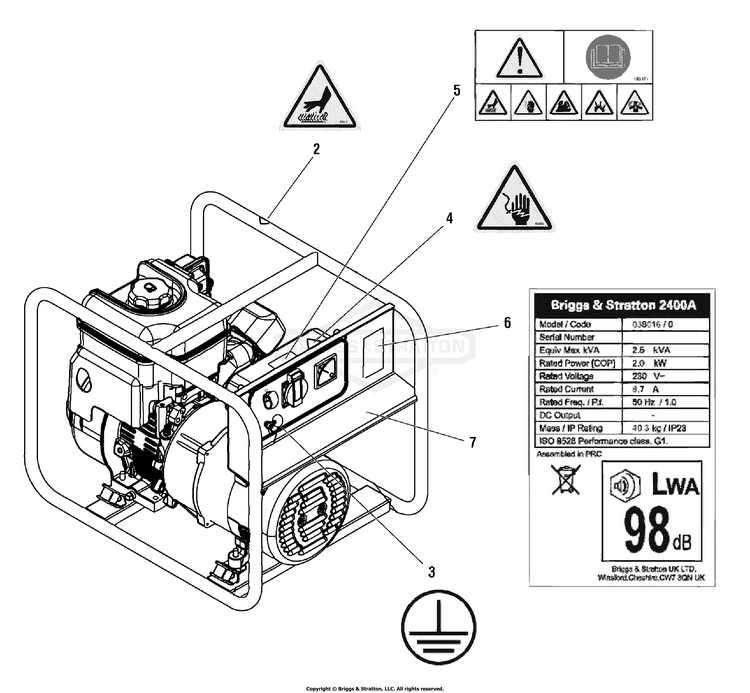

DECAL KIT (Includes Ref. Nos. 2, 3, 4 & 5) BS-103858GS

DECAL, Product, BS2400A BS-104091GS

MANUAL, Owner's (Not Illustrated) BS-MS5796

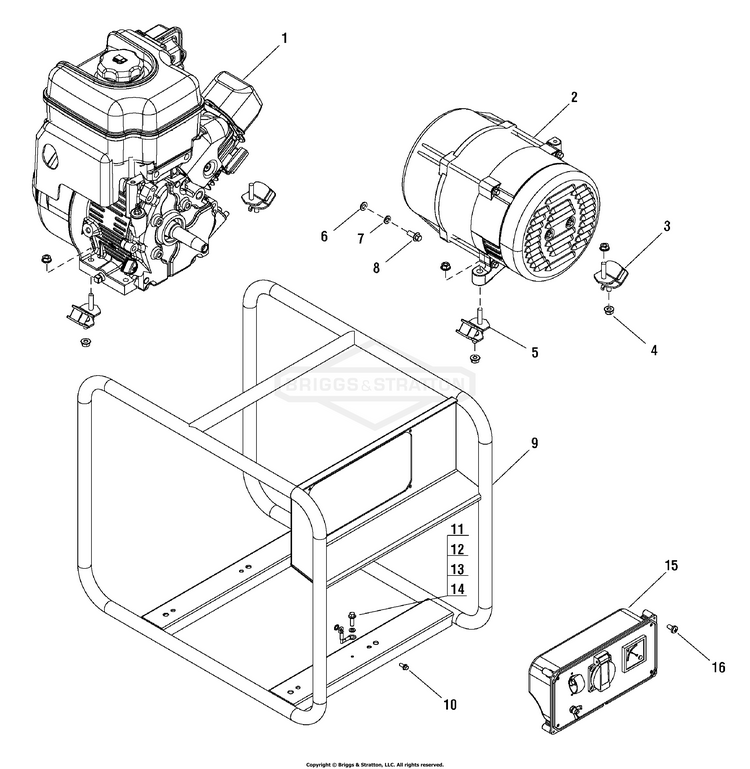

** ENGINE BS-122332-4142-B8

ALTERNATOR ASSEMBLY BS-700451

VIBRATION MOUNT ASSEMBLY, # 50 BS-103614GS

VIBRATION MOUNT ASSEMBLY, # 48 BS-103614AGS

CRADLE BS-103974GS

WIRE, Ground BS-103665GS

CONTROL PANEL ASSEMBLY BS-103975GS

Model: 1AHF08390
