030708-00 Briggs and Stratton Generator 5,750 Watt

Model: 030708-00

Save Part Not Listed?
product name

Popular Parts

Popular Parts

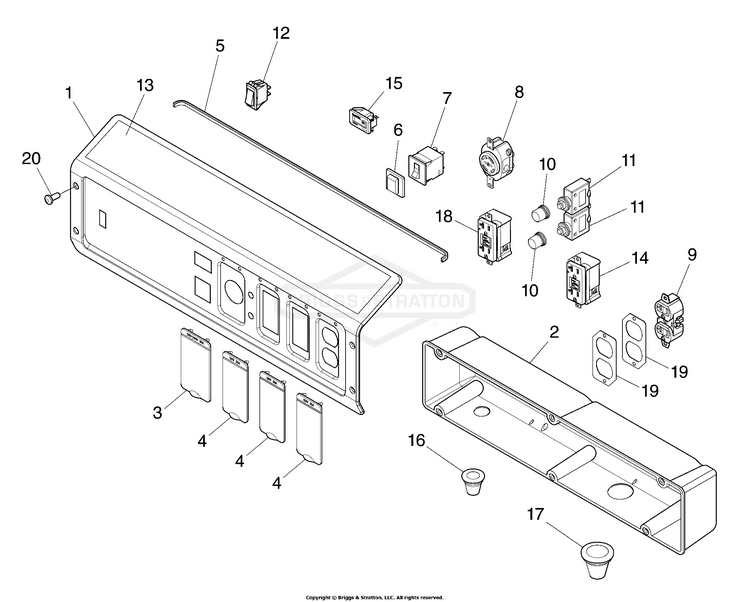

Control Panel (80024616)

...
...
1
PANEL-CONTROL (Includes Ref. No. 13) BS-707256
...
2
BOX-CONTROL PANEL BS-319458GS
...
3
COVER-OUTLET BS-319477GS
...
4
COVER-OUTLET BS-319476GS
...
5
TRIM-EDGE BS-319459GS
...
6
BOOT, Breaker Circuit BS-191481GS
...
7
BREAKER-CIRCUIT BS-707343
...
8
OUTLET-120/240V TL30A BS-43437GS
...
9
OUTLET-120V BS-704903
...
10
BOOT-CIRCUIT BREAKER BS-312636GS
...
11
BREAKER-CIRCUIT 20A BS-704907
...
12
SWITCH-ON/OFF BS-319525GS
...
13
DECAL BS-707288
...
14
OUTLET-120V GFCI 20A BS-707290
...
15
METER-HOUR BS-202602GS
...
16
GROMMET BS-319530GS
...
17
GROMMET BS-319529GS
...
18
OUTLET BS-709526
...
19
INSULATION BS-706326
...
20
SCREW BS-703804

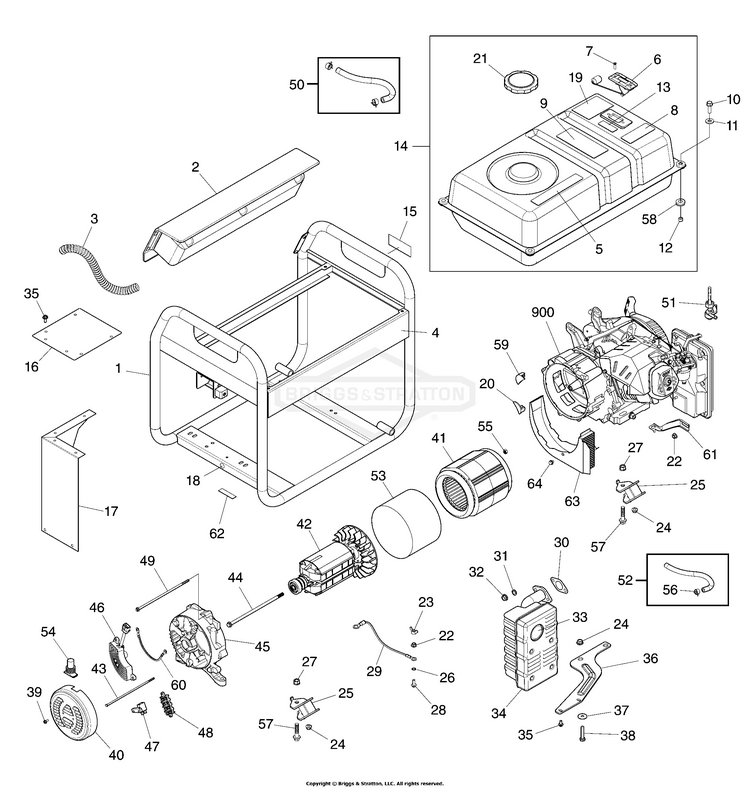

Main Unit (80024615)

...
...
1
CRADLE (Includes Ref. Nos. 4, 15, & 18) BS-707302
...
2
PANEL-CONTROL BS-707422
...
3
SLEEVE BS-707433
...
4
DECAL BS-705635
...
5
DECAL BS-706159
...
6
GAUGE-FUEL BS-704183
...
7
SCREW BS-314440GS
...
8
DECAL BS-704192
...
9
DECAL BS-705909
...
10
SCREW BS-703805
...
11
WASHER BS-312005GS
...
12
SPACER BS-189137GS
...
13
DECAL BS-703264
...
14
TANK-FUEL BS-707301
...
15
DECAL BS-704142
...
16
HEATSHIELD BS-319456GS
...
17
HEATSHIELD BS-708881
...
18
DECAL BS-704331
...
19
DECAL BS-202997GS
...
20
COVER-RUBBER BS-705772
...
21
CAP-FUEL BS-319587GS
...
23
NUT BS-87680GS
...
25
MOUNT-VIBRATION BS-708877
...
27
NUT BS-709938
...
28
SCREW BS-797686
...
29
WIRE BS-709932
...
30
GASKET BS-704853
...
33
SCREEN BS-83083GS
...
34
MUFFLER BS-708878
...
35
SCREW BS-590850
...
36
BRACKET-MUFFLER BS-708879
...
38
BOLT BS-709934
...
39
SCREW BS-709935
...
40
END COVER BS-704838
...
41
STATOR BS-707429
...
42
ROTOR BS-707432
...
43
BOLT BS-707298
...
44
BOLT BS-707296
...
45
CARRIER-BEARING BS-704836
...
46
VOLTAGE REGULATOR BS-704913
...
47
BRUSH ASSY BS-704915
...
48
TERMINAL BLOCK BS-705783
...
49
BOLT BS-707297
...
50
LINE, Fuel (Cut to Fit) BS-791745
...
51
VALVE-FUEL BS-209417GS
...
52
HOSE-VAPOR (Cut to Fit) BS-315017GS
...
53
BAND-STATOR BS-707295
...
54
BOOT BS-207879GS
...
55
NUT BS-709931
...
56
CLAMP BS-314955GS
...
57
BOLT BS-709939
...
58
GROMMET BS-189134GS
...
59
COVER-RUBBER BS-705771
...
60
WIRE BS-709940
...
61
BRACKET-AIR CLEANER BS-708880
...
62
PAD-RUBBER BS-706535
...
63
COVER-ALT BS-709941
...
900
** ENGINE BS-24G032-0007-G1

Wheel Kit (80006254)

...
...
1
HANDLE BS-319396GS
...
2
GRIP-HANDLE BS-319360GS
...
3
GRIP-HANDLE BS-319361GS
...
4
SCREW BS-75477GS
...
5
BOLT BS-318677GS
...
6
WASHER BS-84002245
...
7
NUT BS-49820GS
...
8
BOLT BS-84001685
...
9
KNOB BS-319453GS
...
10
SPRING BS-319452GS
...
11
PIN BS-319454GS
...
12
MOUNT-VIBRATION BS-319285GS
...
13
BOLT BS-771804
...
14
NUT BS-67989GS
...
15
SUPPORT-LEG BS-704198
...
16
AXLE BS-703813
...
17
WHEEL BS-704145
...
18
WASHER, 5/8" SAE BS-5025281SM
...
19
PIN-HAIR BS-316510GS

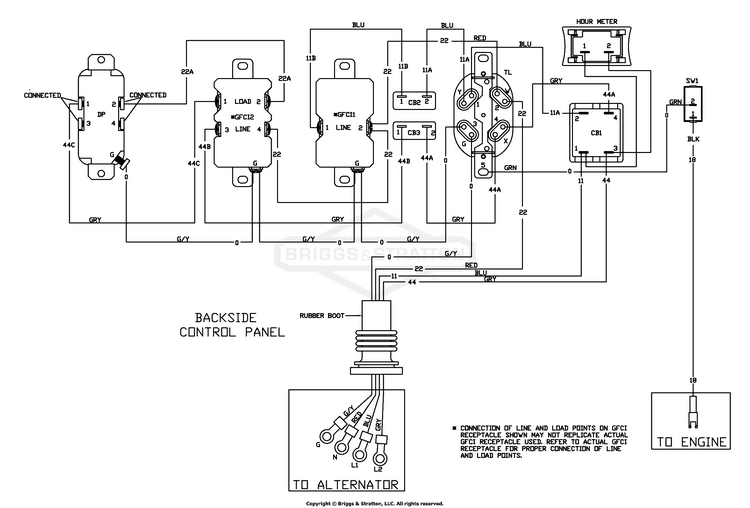

Wiring Diagram (80023875wd)

...

No Parts Available for this Schematic

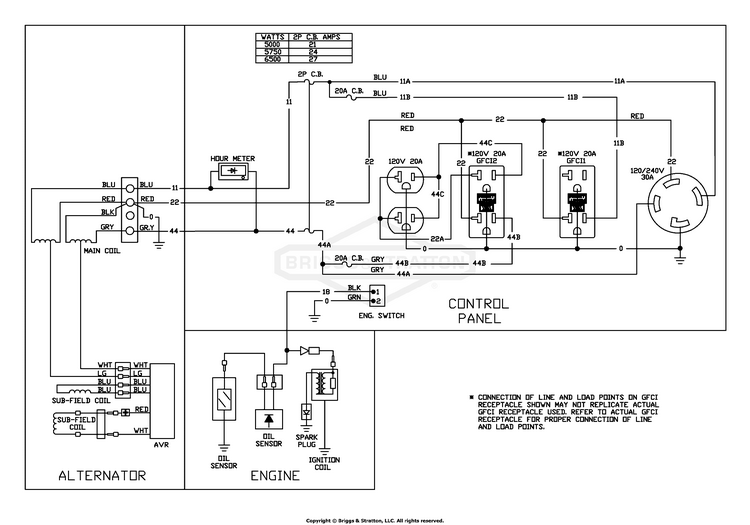

Wiring Schematic (80023875ws)

...

No Parts Available for this Schematic
