030707-00 Briggs and Stratton Portable Generator 5000 Watt Brigg & Stratton

Model: 030707-00

Back To Assemblies

Save Part Not Listed?
product name

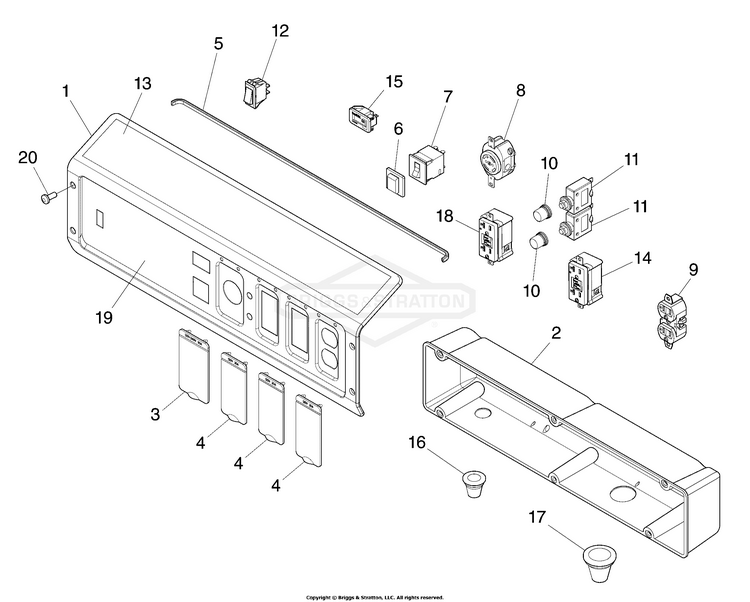

Control Panel (80025213)

...
...
1
PANEL-CONTROL (Includes Ref. Nos. 13 and 19 ) BS-707588
...
2
BOX-CONTROL PANEL BS-319458GS
...
3
COVER-OUTLET BS-319477GS
...
4
COVER-OUTLET BS-319476GS
...
5
TRIM-EDGE BS-319459GS
...
6
BOOT, Breaker Circuit BS-191481GS
...
7
BREAKER-CIRCUIT BS-704197
...
8
OUTLET-120/240V TL30A BS-43437GS
...
9
OUTLET-120V BS-704903
...
10
BOOT-CIRCUIT BREAKER BS-312636GS
...
11
BREAKER-CIRCUIT 20A BS-704907
...
12
SWITCH-ON/OFF BS-319525GS
...
13
DECAL BS-707464
...
14
OUTLET-120V GFCI 20A BS-707290
...
15
METER-HOUR BS-202602GS
...
16
GROMMET BS-319530GS
...
17
GROMMET BS-319529GS
...
18
OUTLET BS-709526
...
19
DECAL BS-707467
...
20
SCREW BS-703804
