030688-00 Briggs and Stratton Portable Generator 3,000 Watt MOSA Inverter Generator

Model: 030688-00

Save Part Not Listed?
product name

Popular Parts

Popular Parts

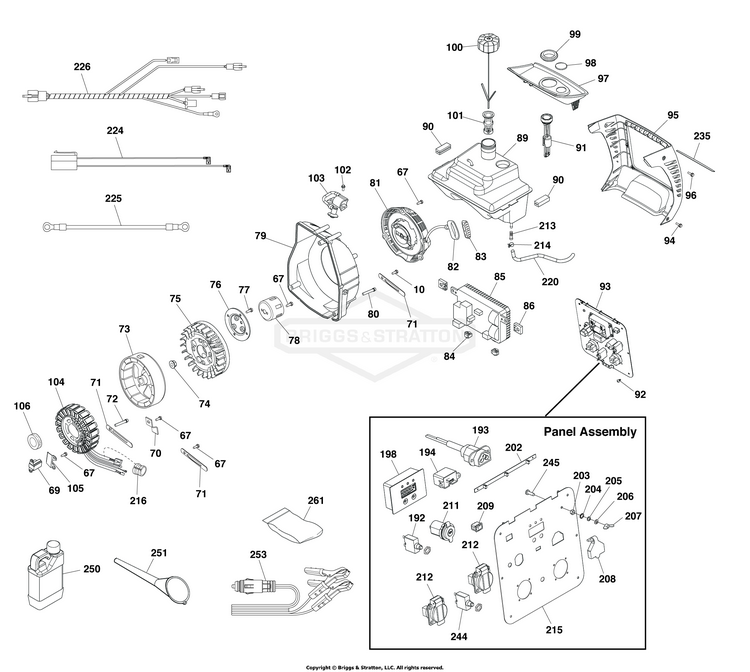

Alternator & Control Panel1 (80021848p1)

...
...
69
TRIGGER-IGNITION BS-705457
...
70
BRACKET BS-707320
...
71
* BRACKET BS-707319
...
73
ROTOR BS-705458
...
75
FAN BS-705459
...
78
CUP-FLYWHEEL BS-705466
...
81
STARTER-REWIND BS-705465
...
83
INSERT, Grip BS-311414GS
...
85
INVERTER BS-770527
...
89
TANK-FUEL BS-707176
...
90
MOUNT-VIBRATION BS-319941GS
...
91
GAUGE BS-319933GS
...
93
PANEL-CONTROL BS-708165
...
95
COVER-PANEL BS-319927GS
...
97
TRAY-FUEL BS-319929GS
...
98
PLUG-SIGHT BS-706134
...
99
GROMMET-FUEL BS-705490
...
100
CAP-FUEL BS-317134GS
...
101
FILTER, Filler Neck BS-317441GS
...
103
COIL-IGNITION BS-705463
...
104
STATOR BS-705464
...
192
BREAKER, Circuit BS-311444GS
...
193
PORT-PARALLEL BS-705488
...
194
PORT-USB BS-319946GS
...
198
MODULE BS-705482
...
202
PCB-LED BS-319945GS
...
203
NUT BS-207743GS
...
204
WASHER BS-91719GS
...
205
WASHER BS-207806GS
...
206
WASHER BS-207805GS
...
207
NUT, WING, M5 X 0.8 BS-187424GS
...
208
COVER-PORT BS-705478
...
209
SWITCH BS-311442GS
...
211
OUTLET, 12VDC BS-314531GS
...
212
OUTLET BS-316585GS
...
213
FILTER-FUEL TANK BS-707168
...
215
PANEL-CONTROL BS-707179
...
220
HOSE-FUEL BS-707178
...
224
WIRE BS-314479GS
...
225
WIRE, Ground BS-314483GS
...
226
WIRE-MAIN BS-771933
...
235
DECAL BS-771880
...
244
CIRCUIT BREAKER, 15A BS-707170
...
245
SCREW BS-76040GS
...
250
OIL-4 CYCLE 30W 18OZ. BS-100005
...
251
FUNNEL BS-706357
...
253
CABLE, BATTERY CHARGE BS-187876GS
...
261
KIT, Tool BS-703574
...
--
JET-MAIN, High Altitude, 5000 ft (Optional Accessory - Not Included) BS-706139

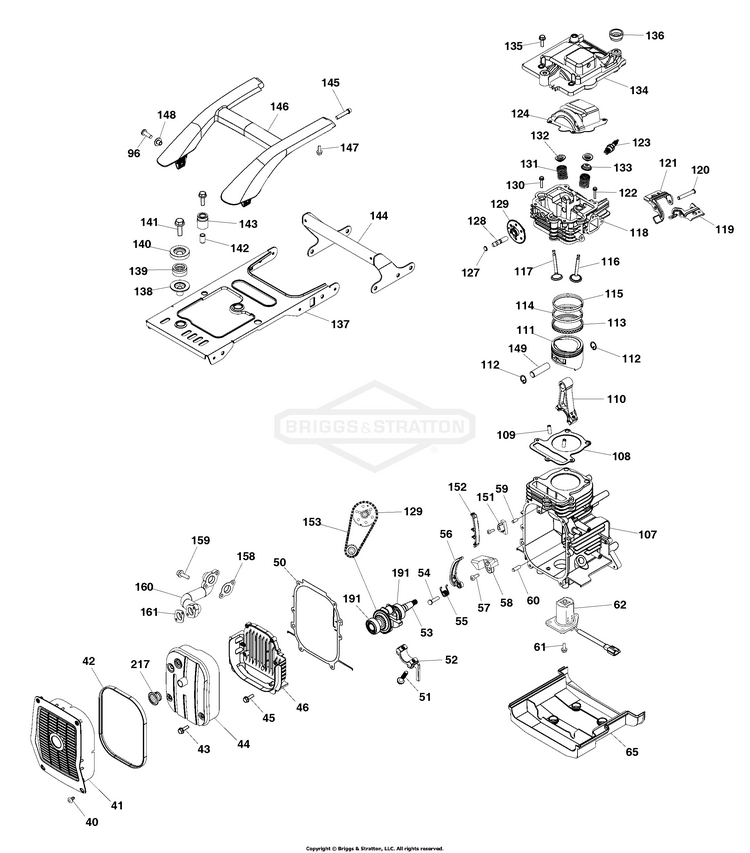

Engine (80021848p3)

...
...
41
GUARD-MUFFLER BS-319930GS
...
42
GASKET BS-705962
...
50
GASKET-CRANKCASE BS-705963
...
62
SENSOR-OIL BS-705964
...
123
SPARKPLUG BS-705455
...
134
COVER-CYLINDER BS-705456
...
137
BRACKET BS-319943GS
...
144
BRACKET BS-319935GS
...
146
HANDLE BS-319937GS
...
148
BUSHING BS-311431GS
...
158
GASKET BS-705966
...
161
GASKET BS-705468
...
217
ARRESTOR-SPARK BS-703189

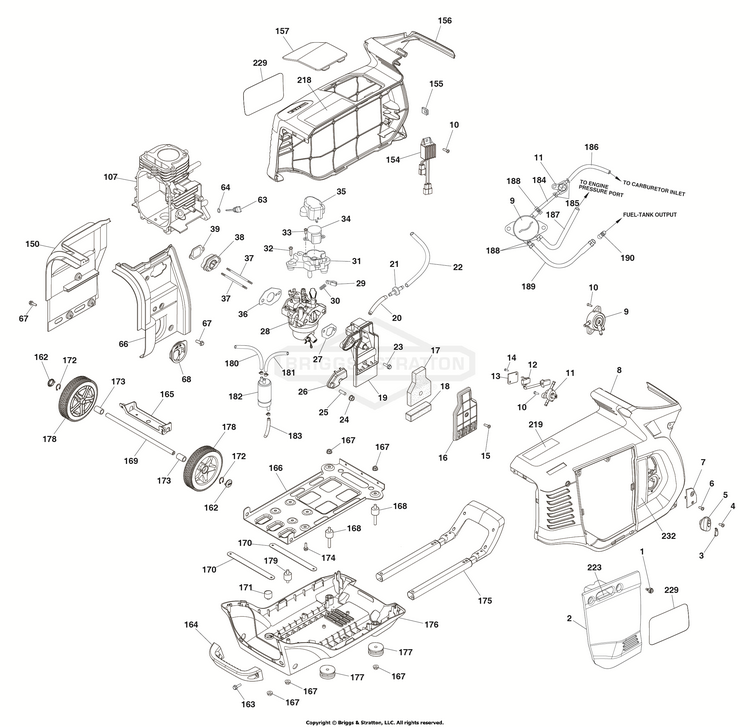

Main Unit (80021848p2)

...
...
1
BOLT BS-311375GS
...
2
PANEL-ACCESS BS-319926GS
...
3
COVER, Knob BS-311377GS
...
5
KNOB BS-705472
...
7
PLATE-TRIM BS-319936GS
...
8
COVER-SIDE BS-706103
...
9
PUMP-FUEL BS-706057
...
11
VALVE, Fuel BS-311384GS
...
12
SWITCH, ON/OFF BS-311385GS
...
15
SCREW BS-707177
...
16
COVER-AIR CLEANER BS-705474
...
17
FILTER-A/C FOAM BS-705473
...
18
FILTER-A/C FOAM BS-705475
...
19
BASE-AIR CLEANER BS-705476
...
20
HOSE BS-317446GS
...
21
CHECK VALVE BS-317108GS
...
22
HOSE BS-317447GS
...
26
COVER-AIR CLEANER BS-705477
...
27
GASKET-AIR CLEANER BS-705939
...
28
CARBURETOR BS-705940
...
29
ROD-THROTTLE BS-84003963
...
30
SPRING BS-84003964
...
31
BRACKET BS-705944
...
34
MOTOR-STEPPER BS-705938
...
35
COVER BS-705941
...
36
GASKET BS-705945
...
37
STUD BS-705942
...
38
INSULATOR BS-705495
...
39
GASKET BS-705496
...
63
DIPSTICK BS-705491
...
64
OIL SEAL BS-705492
...
154
REGULATOR-VOLTAGE BS-705467
...
156
COVER-SIDE BS-706102
...
157
COVER-SPARK PLUG BS-319928GS
...
162
HUBCAP BS-706065
...
164
BAR BS-319932GS
...
165
BRACKET BS-319934GS
...
166
FRAME BS-319942GS
...
167
NUT, M8 Flange Serrated BS-67989GS
...
168
MOUNT-VIBRATION BS-705469
...
169
AXLE BS-705494
...
170
BRACKET BS-705946
...
171
MOUNT-VIBRATION BS-705470
...
172
E-RING BS-771593
...
173
SLEEVE BS-705471
...
175
HANDLE BS-319938GS
...
176
COVER-BOTTOM BS-319923GS
...
177
MOUNT, Vibration BS-311427GS
...
178
WHEEL BS-319940GS
...
179
MOUNT, Vibration BS-311426GS
...
180
HOSE BS-705483
...
181
HOSE BS-705484
...
182
SEPARATOR BS-705487
...
183
HOSE BS-705485
...
184
HOSE-FUEL BS-705486
...
186
HOSE-FUEL BS-705480
...
187
HOSE-FUEL BS-705481
...
189
HOSE-FUEL BS-705479
...
190
FILTER BS-705493
...
218
DECAL BS-707169
...
219
DECAL BS-707172
...
223
DECAL BS-705967
...
229
DECAL BS-771879
...
232
DECAL BS-705978

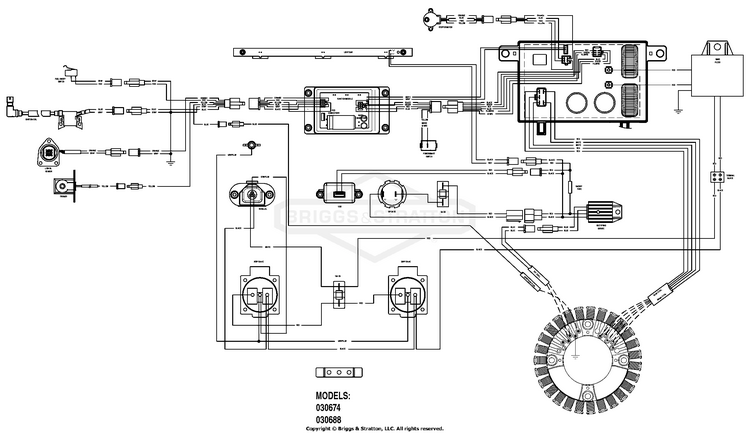

Wiring Diagram (319944WD)

...

No Parts Available for this Schematic

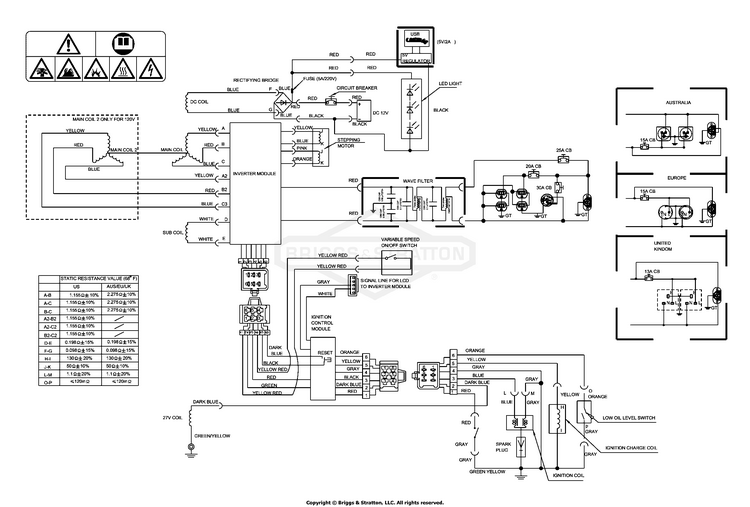

Wiring Schematic (319944WS)

...

No Parts Available for this Schematic
