030679-00 Briggs and Stratton Generator 8,000 Watt

Model: 030679-00

Save Part Not Listed?
product name

Popular Parts

Popular Parts

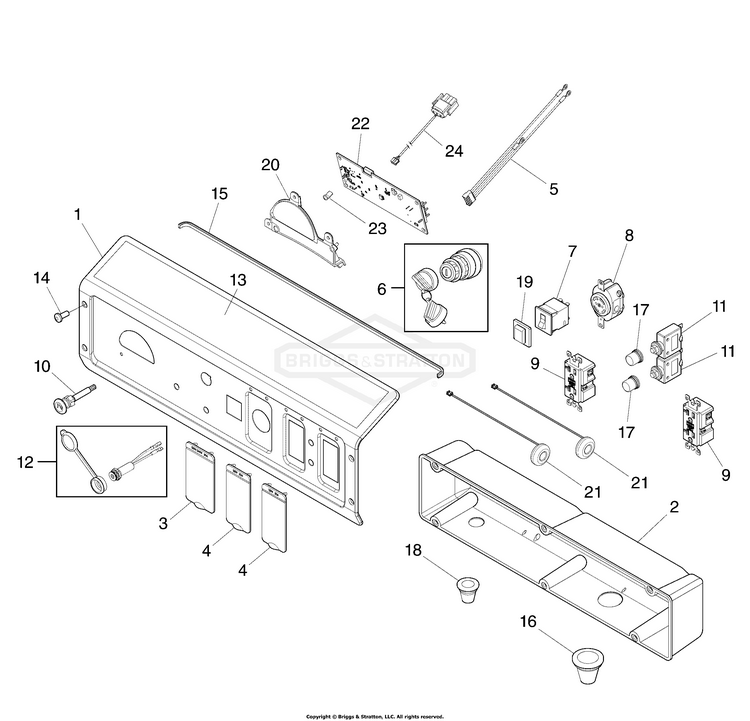

Control Panel (80021827)

...
...
1
PANEL-CONTROL BS-705444
...
2
BOX-CONTROL PANEL BS-319458GS
...
3
COVER-OUTLET BS-319477GS
...
4
COVER-OUTLET BS-319476GS
...
5
HARNESS, Power Board BS-705855
...
6
KEY-SWITCH IGNITION BS-318307GS
...
--
KEY (Included in item # 6) BS-705436
...
7
BREAKER-CIRCUIT 30A BS-202033GS
...
8
OUTLET-120/240V TL30A BS-43437GS
...
9
OUTLET-120V GFCI 20A BS-80409GS
...
10
CABLE-CHOKE BS-312034GS
...
11
BREAKER-CIRCUIT 20A BS-209872GS
...
12
SOCKET-CHARGER BS-704656
...
--
RUBBER COVER (Included in item # 12) BS-312687GS
...
13
DECAL BS-705498
...
14
SCREW BS-703804
...
15
TRIM-EDGE BS-319459GS
...
16
GROMMET BS-319529GS
...
17
BOOT-CIRCUIT BREAKER BS-312636GS
...
18
GROMMET BS-319530GS
...
19
BOOT, Breaker Circuit BS-191481GS
...
20
BRACKET BS-705409
...
21
TRANSFORMER BS-705454
...
22
MODULE BS-705408
...
23
LIGHT BS-705780
...
24
HARNESS-WIRE BS-706173

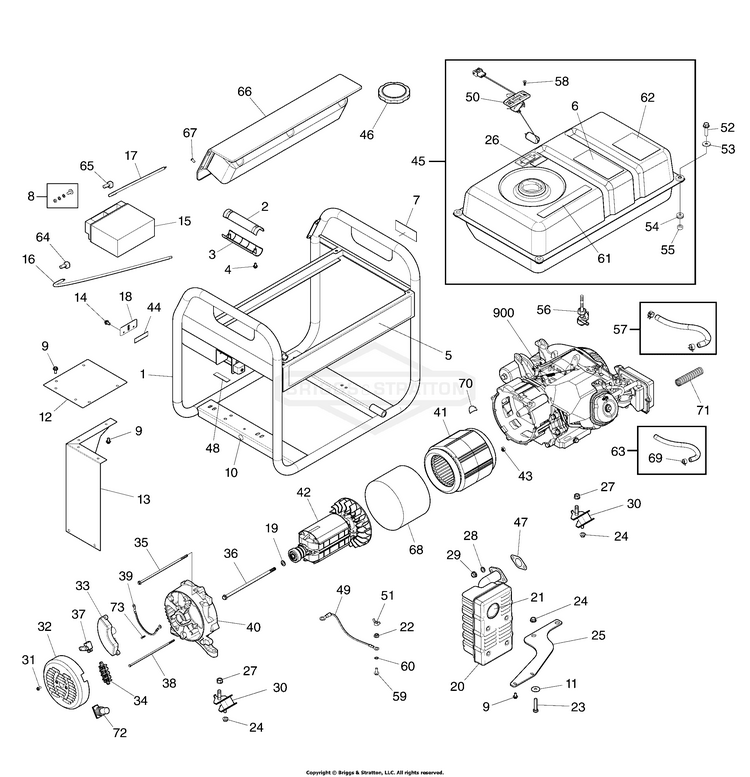

Main Unit (80021826)

...
...
1
CRADLE (Includes Ref. Nos. 5, 7 & 10) BS-705406
...
2
GRIP-HANDLE BS-312009GS
...
3
GRIP-HANDLE BS-312008GS
...
4
SCREW BS-75477GS
...
5
DECAL BS-705635
...
6
DECAL BS-705909
...
7
DECAL BS-704189
...
8
KIT-HRDWR, BATTERY TERMINAL BS-315546GS
...
9
SCREW BS-590850
...
10
DECAL BS-704331
...
11
WASHER BS-B2495GS
...
12
HEATSHIELD BS-312020GS
...
13
HEATSHIELD BS-312019GS
...
14
BOLT BS-209775GS
...
15
BATTERY BS-316345GS
...
16
CABLE-BTTRY, RED BS-312014GS
...
17
CABLE-BTTRY, BLACK BS-312026GS
...
18
PLATE-BATTERY BS-311983GS
...
19
WASHER BS-207826GS
...
20
MUFFLER BS-192569GS
...
21
SCREEN BS-83083GS
...
22
NUT-M6 FLANGE BS-52857GS
...
23
SCREW BS-57821GS
...
24
NUT BS-67989GS
...
25
SUPPORT-MUFFLER BS-319457GS
...
26
DECAL BS-705398
...
27
NUT BS-52859GS
...
28
LOCKWASHER, SPLIT 3/8 BS-703454
...
29
NUT BS-45771GS
...
30
MOUNT-VIBRATION BS-319451GS
...
31
SCREW BS-207824GS
...
32
END COVER BS-209428GS
...
33
VOLTAGE REGULATOR BS-312038GS
...
34
TERMINAL BLOCK BS-316945GS
...
35
BOLT BS-312638GS
...
36
BOLT BS-704235
...
37
BRUSH ASSY BS-207827GS
...
38
BOLT BS-312640GS
...
39
WIRE BS-706150
...
40
CARRIER-BEARING BS-708704
...
41
STATOR BS-706375
...
42
ROTOR BS-312029GS
...
43
NUT BS-207878GS
...
44
PAD-RUBBER BS-706377
...
45
TANK-FUEL BS-706002
...
46
CAP-FUEL BS-319587GS
...
47
GASKET, Exhaust BS-797770
...
48
PAD-RUBBER BS-706535
...
49
WIRE BS-706165
...
50
GAUGE-FUEL BS-705407
...
51
NUT BS-87680GS
...
52
BOLT BS-703805
...
53
WASHER BS-312005GS
...
54
GROMMET BS-189134GS
...
55
SPACER BS-189137GS
...
56
VALVE-FUEL BS-209417GS
...
57
LINE, Fuel (Cut to Fit) BS-791745
...
58
SCREW BS-314440GS
...
59
SCREW BS-590703
...
60
WASHER, Ext. M6 - 1/4" Shakeproof BS-26850GS
...
61
DECAL BS-706159
...
62
DECAL BS-705910
...
63
HOSE-VAPOR (Cut to Fit) BS-315017GS
...
64
CAP-WIRE, RED BS-319405GS
...
65
CAP-WIRE, BLACK BS-319821GS
...
66
ASSY-CONTROL PANEL BS-706160
...
67
BOLT BS-703804
...
68
BOND BS-706168
...
69
CLAMP BS-314955GS
...
70
COVER-RUBBER BS-706376
...
71
BELLOWS BS-706534
...
72
BOOT BS-207879GS
...
73
SCREW BS-207824GS
...
900
ENGINE BS-25T235-0035-G1
...
--
FUSE (Not Illustrated) BS-316742GS
...
--
OIL (Not Illustrated) BS-100028WEB
...
--
CHARGER, Battery (Not Illustrated) BS-84002790

Wheel Kit (312167)

...
...
1
HANDLE BS-311999GS
...
2
GRIP-HANDLE BS-311998GS
...
3
GRIP-HANDLE BS-312000GS
...
4
SCREW-M5-0.8 x 20 BS-75477GS
...
5
BOLT BS-318677GS
...
6
WASHER-NYLON M8 BS-187104GS
...
7
NUT-M8-1.25 NYLOK BS-49820GS
...
8
BOLT-M5-6 x 16 BS-207825GS
...
9
KNOB BS-312016GS
...
10
SPRING BS-312015GS
...
11
PIN BS-312017GS
...
12
MOUNT-VIBRATION BS-319285GS
...
13
NUT-M6 FLANGE BS-52857GS
...
14
SCREW-M8 x 16 BS-42568GS
...
15
SUPPORT-LEG BS-311994GS
...
16
WASHER-M10 LOCK BS-46526GS
...
17
NUT-M10 LOCK BS-45772GS
...
18
WASHER BS-691113
...
19
HUBCAP BS-312022GS
...
20
WHEEL BS-312021GS
...
21
PIN, HAIR, .0915 X 1-7/8 BS-5025210YP
...
22
AXLE BS-312023GS

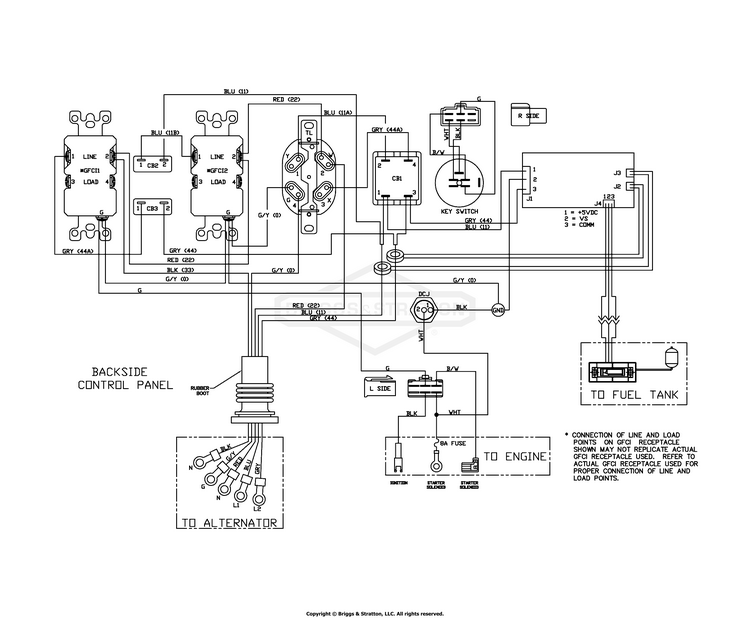

Wiring Diagram (80016749WD)

...

No Parts Available for this Schematic

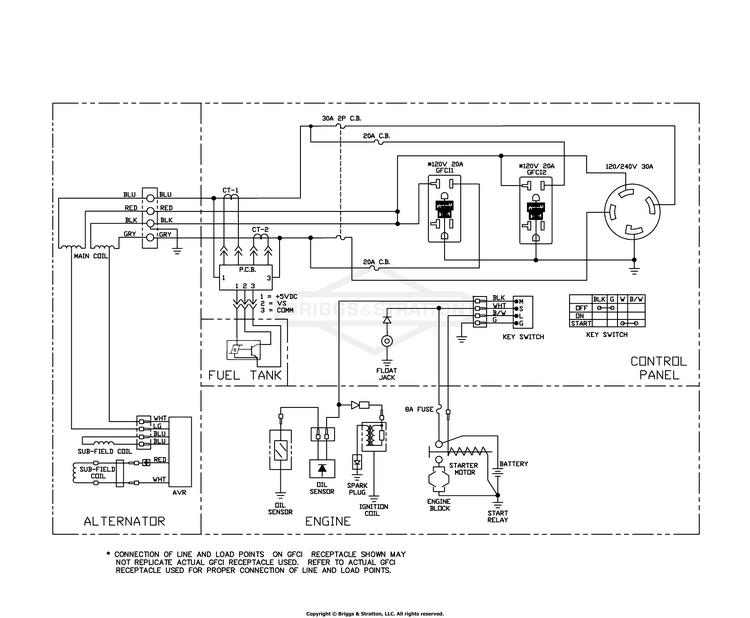

Wiring Schematic (80016749WS)

...

No Parts Available for this Schematic
