030677-00 Briggs and Stratton Generator 5,000 Watt

Model: 030677-00

Save Part Not Listed?
product name

Popular Parts

Popular Parts

Control Panel (80019166)

...
...
1
PANEL-CONTROL BS-705522
...
2
BOX-CONTROL PANEL BS-319458GS
...
3
COVER-OUTLET BS-319477GS
...
4
COVER-OUTLET BS-319476GS
...
5
TRIM-EDGE BS-319459GS
...
6
BOOT, Breaker Circuit BS-191481GS
...
7
BREAKER-CIRCUIT BS-704197
...
8
OUTLET BS-43437GS
...
9
OUTLET BS-709526
...
10
BOOT-CIRCUIT BREAKER BS-312636GS
...
11
BREAKER-CIRCUIT 20A BS-704907
...
12
SWITCH-ON/OFF BS-319525GS
...
13
DECAL BS-709942
...
14
GROMMET BS-319529GS
...
15
GROMMET BS-319530GS
...
16
SCREW BS-703804

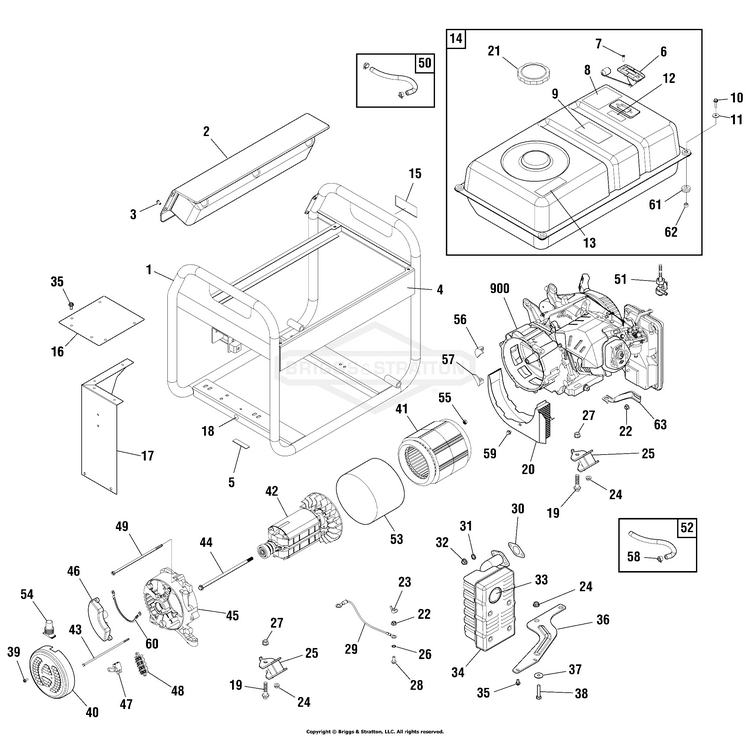

Main Unit (80016035)

...
...
1
CRADLE BS-709930
...
2
PANEL-CONTROL BS-709936
...
3
SCREW BS-703804
...
4
DECAL BS-709933
...
5
PAD-RUBBER BS-706535
...
6
GAUGE-FUEL BS-704183
...
7
SCREW BS-314440GS
...
8
DECAL BS-202997GS
...
9
DECAL BS-709937
...
10
SCREW BS-703805
...
11
WASHER BS-312005GS
...
12
DECAL BS-703264
...
13
DECAL BS-709667
...
14
TANK-FUEL BS-709929
...
15
DECAL BS-704142
...
16
HEATSHIELD BS-319456GS
...
17
HEATSHIELD BS-708881
...
18
DECAL BS-704331
...
19
BOLT BS-709939
...
20
COVER-ALT BS-709941
...
21
CAP-FUEL BS-319587GS
...
23
NUT BS-87680GS
...
25
MOUNT-VIBRATION BS-708877
...
27
NUT-M10 FLANGE LOCK BS-709938
...
28
SCREW BS-797686
...
29
WIRE BS-709932
...
30
GASKET BS-704853
...
33
SCREEN BS-83083GS
...
34
MUFFLER BS-708878
...
36
BRACKET-MUFFLER BS-708879
...
38
BOLT BS-709934
...
39
SCREW BS-709935
...
40
END COVER BS-704838
...
41
STATOR BS-704140
...
42
ROTOR BS-708883
...
43
BOLT BS-709944
...
44
BOLT BS-709946
...
45
CARRIER-BEARING BS-704836
...
46
VOLTAGE REGULATOR BS-704913
...
47
BRUSH ASSY BS-704915
...
48
TERMINAL BLOCK BS-705783
...
49
BOLT BS-709945
...
50
LINE, Fuel BS-791745
...
51
VALVE-FUEL BS-209417GS
...
52
HOSE-VAPOR (cut to fit) BS-315017GS
...
53
BAND-STATOR BS-317342GS
...
54
BOOT BS-207879GS
...
55
NUT BS-709931
...
56
GUARD BS-705771
...
57
GUARD BS-705772
...
58
CLAMP BS-314955GS
...
60
WIRE BS-709940
...
61
GROMMET BS-189134GS
...
62
SPACER BS-189137GS
...
63
BRACKET BS-708880
...
900
** ENGINE BS-24G032-0001-G1

Wheel Kit (80006254)

...
...
1
HANDLE BS-319396GS
...
2
GRIP-HANDLE BS-319360GS
...
3
GRIP-HANDLE BS-319361GS
...
4
SCREW BS-75477GS
...
5
BOLT BS-318677GS
...
6
WASHER BS-84002245
...
7
NUT BS-49820GS
...
8
BOLT BS-84001685
...
9
KNOB BS-319453GS
...
10
SPRING BS-319452GS
...
11
PIN BS-319454GS
...
12
MOUNT-VIBRATION BS-319285GS
...
13
BOLT BS-771804
...
14
NUT BS-67989GS
...
15
SUPPORT-LEG BS-704198
...
16
AXLE BS-703813
...
17
WHEEL BS-704145
...
18
WASHER, 5/8" SAE BS-5025281SM
...
19
PIN-HAIR BS-316510GS

Wiring Diagram (8007537WD)

...

No Parts Available for this Schematic

Wiring Schematic (8007537WS)

...

No Parts Available for this Schematic
