030676-00 Briggs and Stratton Generator 3,500 Watt

Model: 030676-00

Back To Assemblies

Save Part Not Listed?
product name

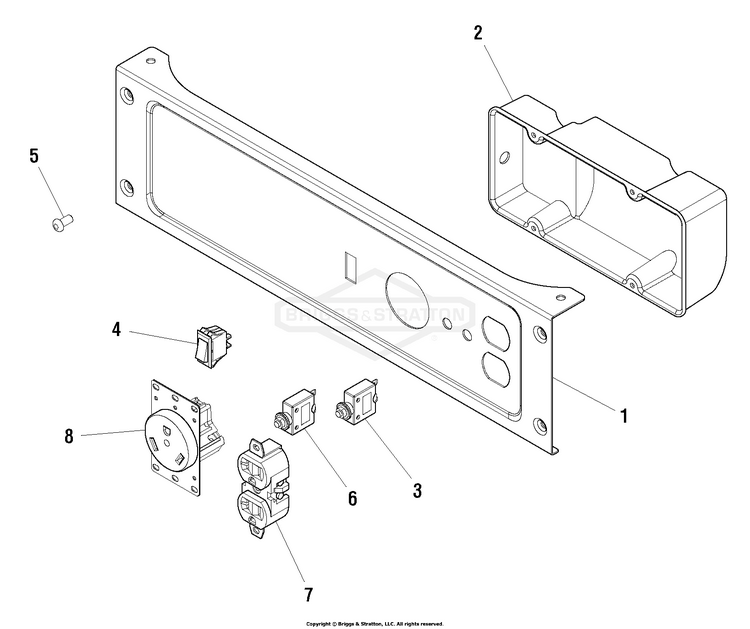

Control Panel (80017979)

...
...
1
PANEL-CONTROL BS-709672
...
2
BOX-CONTROL PANEL BS-709673
...
3
BREAKER-CIRCUIT 20A BS-318061GS
...
4
SWITCH-ON/OFF BS-319525GS
...
5
SCREW BS-703804
...
6
BREAKER-CIRCUIT 30A BS-318063GS
...
7
OUTLET, 20A,120V BS-68759GS
...
8
OUTLET BS-318065GS
