030676-00 Briggs and Stratton Generator 3,500 Watt

Model: 030676-00

Back To Assemblies

Save Part Not Listed?
product name

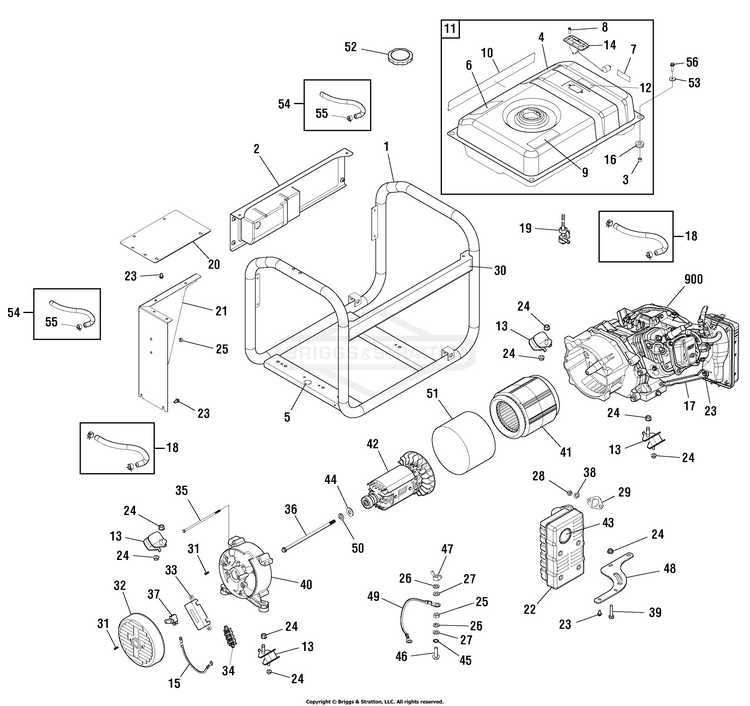

Main Unit (80017978)

...
...
1
CRADLE (Includes Ref. Nos. 5 & 30) BS-709654
...
2
ASSY- PANEL CONTROL BS-709658
...
3
SPACER BS-189137GS
...
4
DECAL BS-709663
...
5
DECAL BS-704331
...
6
DECAL, Warning, CO BS-202997GS
...
7
DECAL BS-704142
...
8
SCREW BS-314440GS
...
9
DECAL BS-709667
...
10
DECAL BS-709659
...
11
TANK-FUEL BS-709656
...
12
DECAL BS-703264
...
13
MOUNT-VIBRATION BS-706149
...
14
GAUGE-FUEL BS-704183
...
15
WIRE BS-706150
...
16
GROMMET, Rubber BS-189134GS
...
17
BRACKET BS-709662
...
18
LINE, Fuel (Cut to Fit) BS-791745
...
19
VALVE, Fuel BS-209417GS
...
20
HEATSHIELD BS-709655
...
21
HEATSHIELD BS-709660
...
22
MUFFLER BS-709665
...
23
SCREW BS-590850
...
28
NUT, M8 - 1.25 BS-45771GS
...
29
GASKET, Muffler Adapter BS-709664
...
30
DECAL BS-709669
...
31
SCREW BS-312909GS
...
32
COVER-REAR BEARING BS-703191
...
33
VOLTAGE REGULATOR BS-709666
...
34
TERMINAL BLOCK BS-703075
...
35
BOLT BS-703909
...
36
BOLT BS-313525GS
...
37
BRUSH ASSY BS-703113
...
38
LOCKWASTER, SPLIT, 3/8 BS-706162
...
40
CARRIER-BEARING BS-703190
...
41
STATOR BS-709668
...
42
ROTOR BS-709670
...
43
SCREEN, Spark Arrest BS-83083GS
...
44
Washer, Flat 1/2 BS-22304GS
...
45
WASHER, Ext. M6 - 1/4" Shakeproof BS-26850GS
...
46
HHCS, M6-1.0 x 25 BS-189156GS
...
47
NUT, M6 - 1.0 Wing BS-87680GS
...
48
BRACKET-MUFFLER BS-709661
...
49
WIRE BS-706165
...
50
WASHER BS-801237
...
51
BAND-STATOR BS-709657
...
52
CAP-FUEL BS-319587GS
...
53
WASHER BS-312005GS
...
54
HOSE, Vapor (cut to fit) (Cut to Fit) BS-315017GS
...
55
CLAMP BS-314955GS
...
56
SCREW BS-703805
...
900
ENGINE* BS-13U132-0001-G1
