030674-00 Briggs and Stratton Generator 3,000 Watt Inverter Generator

Model: 030674-00

Back To Assemblies

Save Part Not Listed?
product name

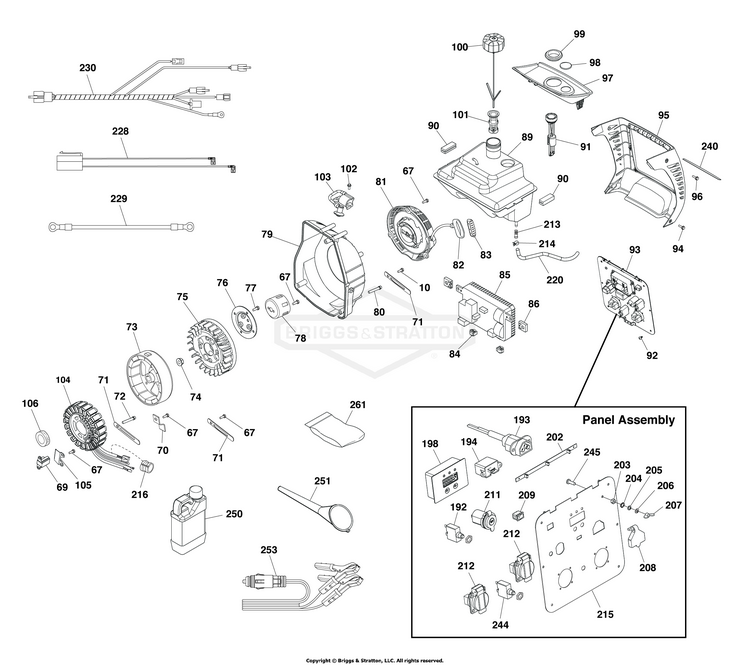

Alternator & Control Panel (80017393p1)

...
...
69
TRIGGER-IGNITION BS-705457
...
70
BRACKET BS-707320
...
71
* BRACKET BS-707319
...
73
ROTOR BS-705458
...
75
FAN BS-705459
...
78
CUP-FLYWHEEL BS-705466
...
81
STARTER-REWIND BS-705465
...
85
INVERTER BS-770527
...
89
TANK-FUEL BS-707176
...
90
MOUNT-VIBRATION BS-319941GS
...
91
GAUGE BS-319933GS
...
93
PANEL-CONTROL BS-708165
...
95
COVER-PANEL BS-319927GS
...
97
TRAY-FUEL BS-319929GS
...
98
PLUG-SIGHT BS-706134
...
99
GROMMET-FUEL BS-705490
...
100
CAP-FUEL BS-317134GS
...
101
FILTER, Filler Neck BS-317441GS
...
103
COIL-IGNITION BS-705463
...
104
STATOR BS-705464
...
192
BREAKER, Circuit BS-311444GS
...
193
PORT-PARALLEL BS-705488
...
194
PORT-USB BS-319946GS
...
198
MODULE BS-705482
...
202
PCB-LED BS-319945GS
...
203
NUT BS-207743GS
...
204
WASHER BS-91719GS
...
205
WASHER BS-207806GS
...
206
WASHER BS-207805GS
...
207
NUT, WING, M5 X 0.8 BS-187424GS
...
208
COVER-PORT BS-705478
...
209
SWITCH BS-311442GS
...
211
OUTLET, 12VDC BS-314531GS
...
212
OUTLET BS-316585GS
...
213
FILTER-FUEL TANK BS-707168
...
215
PANEL-CONTROL BS-707179
...
220
HOSE-FUEL BS-707178
...
228
WIRE BS-314479GS
...
229
WIRE, Ground BS-314483GS
...
230
WIRE-MAIN BS-771933
...
240
DECAL BS-771880
...
244
CIRCUIT BREAKER, 15A BS-707170
...
245
SCREW BS-76040GS
...
250
OIL-4 CYCLE 30W 18OZ. BS-100005
...
251
FUNNEL BS-706357
...
253
CABLE, BATTERY CHARGE BS-187876GS
...
261
KIT, Tool BS-703574
...
--
JET-MAIN, High Altitude, 5000 ft (Optional Accessory - Not Included) BS-706139
