product name

030672A-00 Briggs and Stratton Generator 3200A

Model: 030672A-00

Back To Assemblies

Save Part Not Listed?
product name

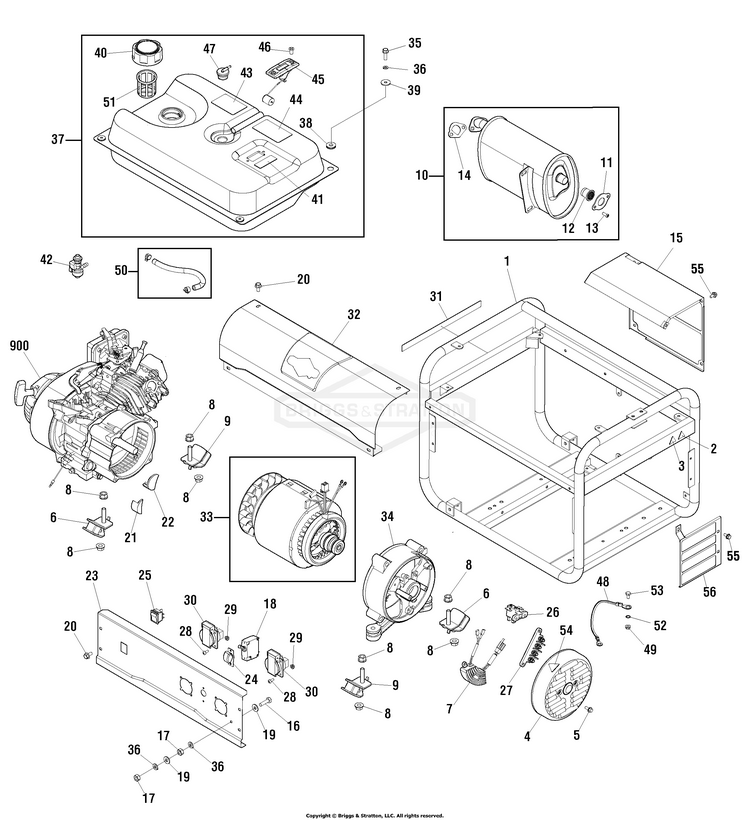

Main Unit (80018220)

...
...
1
CRADLE (Includes Ref. Nos. 2, 3 & 31) BS-709718
...
2
DECAL BS-315635GS
...
3
DECAL BS-315634GS
...
4
END COVER BS-704837
...
6
MOUNT-VIBRATION BS-704888
...
7
VOLTAGE REGULATOR BS-704912
...
8
NUT BS-67989GS
...
9
MOUNT-VIBRATION BS-704889
...
10
ASSY-MUFFLER BS-704841
...
11
PLATE BS-704844
...
12
SPARK ARRESTOR BS-704846
...
14
GASKET-MUFFLER BS-704852
...
15
GUARD-MUFFLER BS-709713
...
18
CIRCUIT BREAKER BS-707897
...
20
SCREW BS-708086
...
21
GUARD-RUBBER BS-705770
...
22
GUARD-RUBBER BS-705769
...
23
PANEL-CONTROL BS-707890
...
24
BOOT-SWITCH BS-709716
...
25
SWITCH BS-704893
...
26
BRUSH ASSY BS-704914
...
27
TERMINAL BLOCK BS-705783
...
30
OUTLET BS-316585GS
...
31
DECAL BS-704880
...
32
SHROUD BS-707889
...
33
ALTERNATOR BS-707898
...
34
CARRIER-BEARING BS-704969
...
37
TANK-FUEL BS-709717
...
38
MOUNT-VIBRATION BS-704861
...
39
WASHER BS-704862
...
40
CAP-FUEL BS-704865
...
41
DECAL BS-704867
...
42
VALVE-FUEL BS-310574GS
...
43
DECAL BS-708083
...
44
DECAL BS-708085
...
45
GAUGE-FUEL BS-704869
...
46
SCREW BS-704866
...
47
VALVE BS-704916
...
48
WIRE BS-705633
...
49
NUT-M6 FLANGE BS-52857GS
...
50
LINE, Fuel (Cut to Fit) BS-791745
...
51
FILTER-FUEL BS-704863
...
52
WASHER, Ext. M6 - 1/4" Shakeproof BS-26850GS
...
53
SCREW BS-590850
...
54
DECAL BS-315636GS
...
56
GUARD-MUFFLER BS-709714
