030670-00 Briggs and Stratton Generator 1200A

Model: 030670-00

Save Part Not Listed?
product name

Popular Parts

Popular Parts

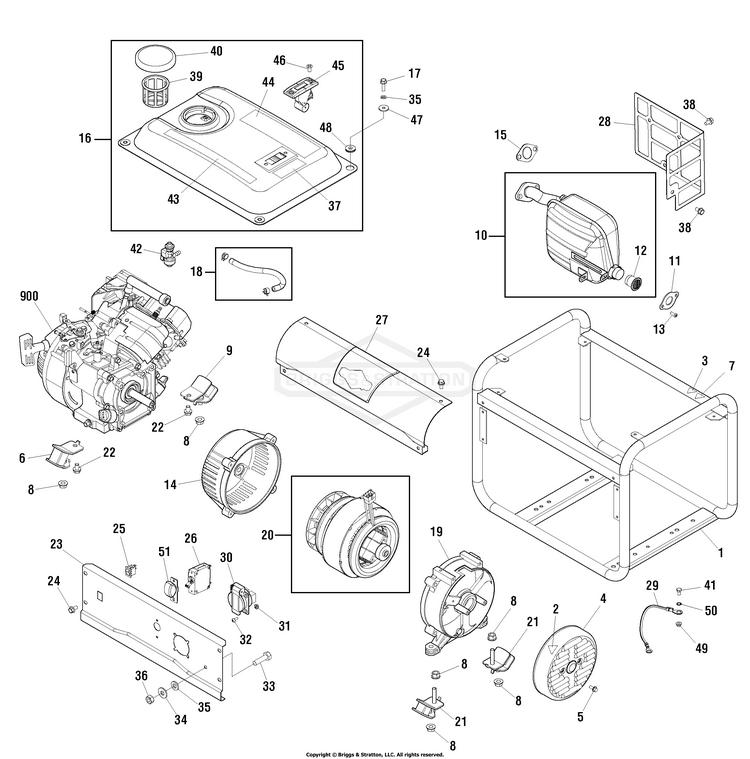

Main Unit (80011985)

...
...
1
CRADLE (Includes Ref. Nos. 3 & 7) BS-709694
...
2
DECAL BS-315636GS
...
3
DECAL BS-315635GS
...
4
END COVER BS-709695
...
6
MOUNT-VIBRATION BS-704886
...
7
DECAL BS-315634GS
...
8
NUT BS-67989GS
...
9
MOUNT-VIBRATION BS-704887
...
10
ASSY-MUFFLER BS-709696
...
11
PLATE BS-704843
...
12
SPARK ARRESTOR BS-704846
...
14
ADAPTER-ENGINE BS-709699
...
15
GASKET-MUFFLER BS-704851
...
16
TANK-FUEL BS-709698
...
18
LINE, Fuel (Cut to Fit) BS-791745
...
19
CARRIER-BEARING BS-704969
...
20
ALTERNATOR BS-709697
...
21
MOUNT-VIBRATION BS-705437
...
23
PANEL-CONTROL BS-709700
...
24
BOLT BS-708086
...
25
SWITCH BS-704892
...
26
BREAKER-AC BS-709701
...
27
SHROUD BS-709702
...
28
GUARD-MUFFLER BS-709703
...
29
WIRE BS-705633
...
30
OUTLET BS-316585GS
...
31
NUT BS-795016
...
32
SCREW BS-75475GS
...
37
DECAL BS-703264
...
39
FILTER BS-704972
...
40
CAP-FUEL BS-311513GS
...
41
SCREW BS-590850
...
42
VALVE-FUEL BS-310574GS
...
43
DECAL BS-705773
...
44
DECAL BS-707893
...
45
GAUGE-FUEL BS-704868
...
46
SCREW BS-704866
...
47
WASHER BS-704862
...
48
MOUNT-VIBRATION BS-704861
...
49
NUT-M6 FLANGE BS-52857GS
...
50
WASHER, Ext. M6 - 1/4" Shakeproof BS-26850GS
...
51
BOOT-SWITCH BS-709716
...
52
VOLTAGE REGULATOR BS-704912
...
900
** ENGINE BS-05G032-0004-H1

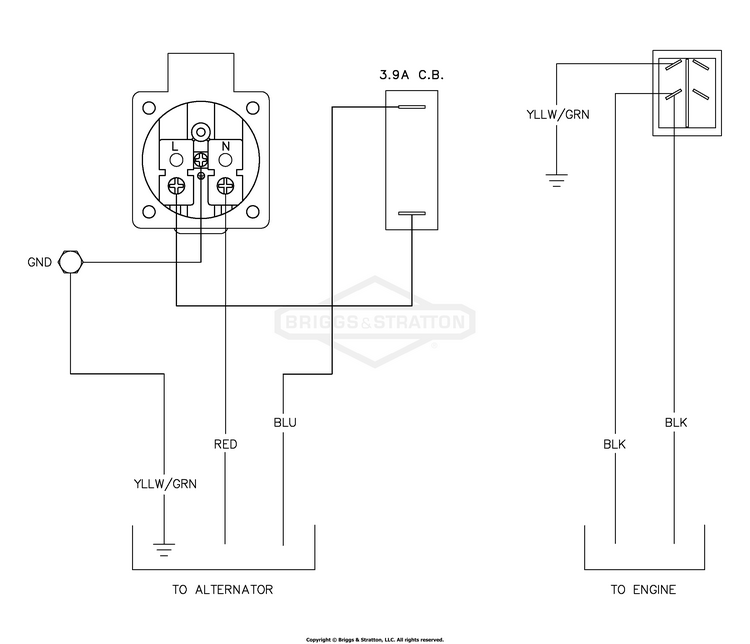

Wiring Diagram (80016056WD)

...

No Parts Available for this Schematic

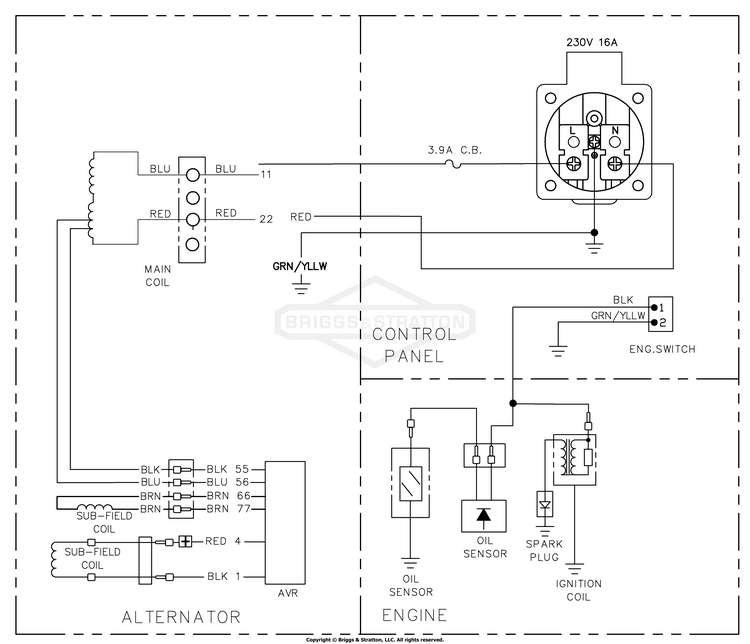

Wiring Schematic (80016056WS)

...
