030668-00 Briggs and Stratton Generator 7,500 Watt

Model: 030668-00

Save Part Not Listed?
product name

Popular Parts

Popular Parts

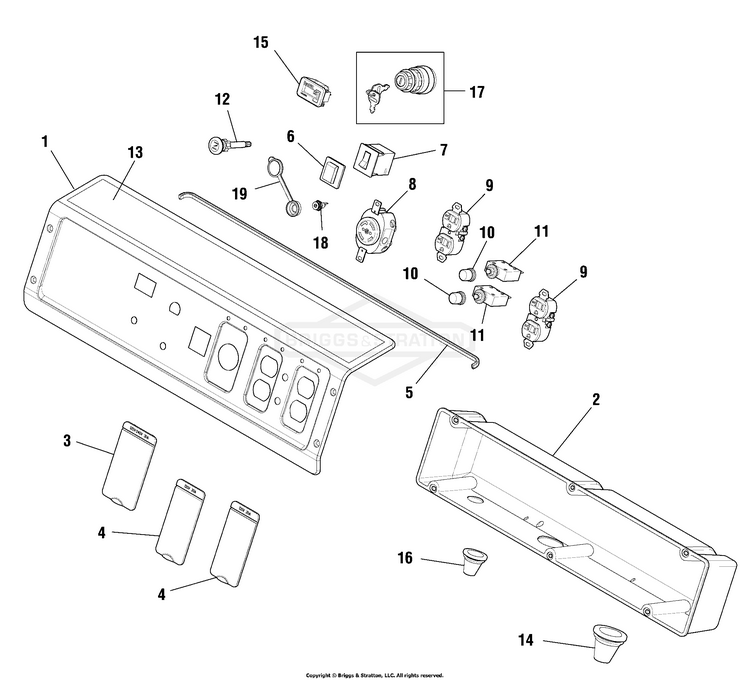

Control Panel (80010379)

...
...
1
PANEL-CONTROL BS-706157
...
2
BOX-CONTROL PANEL BS-319458GS
...
3
COVER-OUTLET BS-319477GS
...
4
COVER-OUTLET BS-319476GS
...
5
TRIM-EDGE BS-319459GS
...
6
BOOT, Breaker Circuit BS-191481GS
...
7
BREAKER-CIRCUIT BS-202033GS
...
8
OUTLET-120/240V TL30A BS-43437GS
...
9
OUTLET-120V 20A BS-68759GS
...
10
BOOT-CIRCUIT BREAKER BS-312636GS
...
11
BREAKER-CIRCUIT 20A BS-209872GS
...
12
CHOKE BS-312034GS
...
13
DECAL BS-706156
...
14
GROMMET BS-319529GS
...
15
METER-HOUR BS-202602GS
...
16
GROMMET BS-319530GS
...
17
KEYSWITCH BS-318307GS
...
--
KEY BS-705436
...
18
ASSY., Jack Coaxial BS-208511GS
...
19
BOOT-RUBBER JACK BS-312687GS

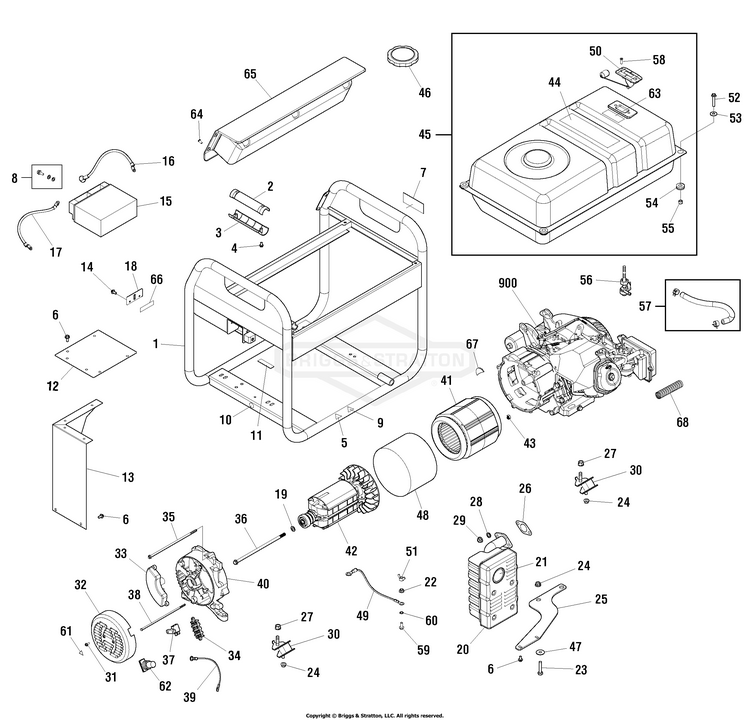

Main Unit (80013624)

...
...
1
CRADLE BS-706171
...
2
GRIP-HANDLE BS-312008GS
...
3
GRIP-HANDLE BS-312009GS
...
4
SCREW BS-75477GS
...
5
DECAL BS-315634GS
...
6
SCREW BS-590850
...
7
DECAL BS-704330
...
8
KIT-HRDWR, BATTERY TERMINAL BS-315546GS
...
9
DECAL BS-315635GS
...
10
DECAL BS-704331
...
11
PAD-RUBBER BS-706535
...
12
HEATSHIELD BS-312020GS
...
13
HEATSHIELD BS-312019GS
...
14
BOLT BS-209775GS
...
15
BATTERY BS-316345GS
...
16
CABLE-BTTRY, RED BS-312014GS
...
17
CABLE-BTTRY, BLACK BS-312026GS
...
18
PLATE-BATTERY BS-311983GS
...
19
WASHER BS-207826GS
...
20
MUFFLER BS-192569GS
...
21
SCREEN BS-83083GS
...
22
NUT-M6 FLANGE BS-52857GS
...
23
SCREW BS-57821GS
...
24
NUT BS-67989GS
...
25
SUPPORT-MUFFLER BS-319457GS
...
26
GASKET, Exhaust BS-797770
...
27
NUT BS-52859GS
...
28
LOCKWASHER, SPLIT 3/8 BS-703454
...
29
NUT BS-45771GS
...
30
MOUNT-VIBRATION BS-319451GS
...
31
SCREW BS-207824GS
...
32
END COVER BS-209428GS
...
33
VOLTAGE REGULATOR BS-312038GS
...
34
TERMINAL BLOCK BS-316945GS
...
35
BOLT BS-312638GS
...
36
BOLT BS-312639GS
...
37
BRUSH ASSY BS-207827GS
...
38
BOLT BS-312640GS
...
39
WIRE BS-706150
...
40
CARRIER-BEARING BS-708704
...
41
STATOR BS-706533
...
42
ROTOR BS-317336GS
...
43
NUT BS-207878GS
...
44
DECAL BS-315637GS
...
45
TANK-FUEL BS-704666
...
46
CAP-FUEL BS-704655
...
47
WASHER-FLAT M8 BS-B2495GS
...
48
BOND BS-706168
...
49
WIRE BS-706165
...
50
GAUGE-FUEL BS-704183
...
51
NUT BS-87680GS
...
52
BOLT BS-703805
...
53
WASHER BS-312005GS
...
54
GROMMET BS-189134GS
...
55
SPACER BS-189137GS
...
56
VALVE-FUEL BS-209417GS
...
57
LINE, Fuel (Cut to Fit) BS-791745
...
58
SCREW BS-314440GS
...
59
SCREW BS-590703
...
60
WASHER, Ext. M6 - 1/4" Shakeproof BS-26850GS
...
61
DECAL BS-315636GS
...
62
BOOT BS-207879GS
...
63
DECAL BS-703264
...
64
BOLT BS-703804
...
65
CONTROL-PANEL BS-706169
...
66
PAD-RUBBER BS-706377
...
67
COVER-RUBBER BS-706376
...
68
BELLOW BS-706534
...
--
FUSE (Not Illustrated) BS-316742GS
...
--
CHARGER, Battery (Not Illustrated) BS-84002790

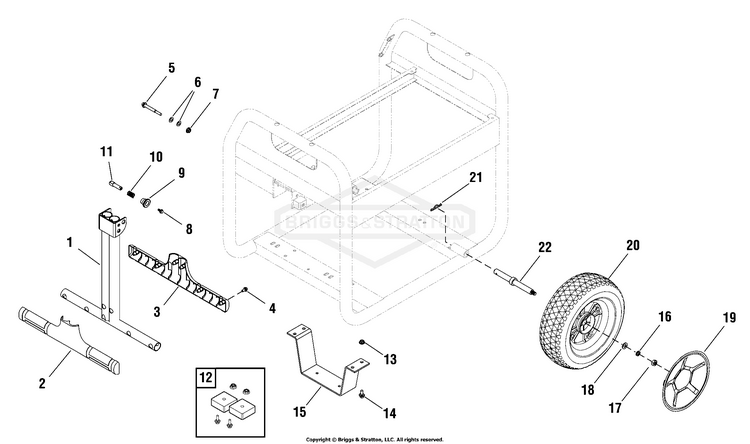

Wheel Kit (312167)

...
...
1
HANDLE BS-311999GS
...
2
GRIP-HANDLE BS-311998GS
...
3
GRIP-HANDLE BS-312000GS
...
4
SCREW-M5-0.8 x 20 BS-75477GS
...
5
BOLT BS-318677GS
...
6
WASHER-NYLON M8 BS-187104GS
...
7
NUT-M8-1.25 NYLOK BS-49820GS
...
8
BOLT-M5-6 x 16 BS-207825GS
...
9
KNOB BS-312016GS
...
10
SPRING BS-312015GS
...
11
PIN BS-312017GS
...
12
MOUNT-VIBRATION BS-319285GS
...
13
NUT-M6 FLANGE BS-52857GS
...
14
SCREW-M8 x 16 BS-42568GS
...
15
SUPPORT-LEG BS-311994GS
...
16
WASHER-M10 LOCK BS-46526GS
...
17
NUT-M10 LOCK BS-45772GS
...
18
WASHER BS-691113
...
19
HUBCAP BS-312022GS
...
20
WHEEL BS-312021GS
...
21
PIN, HAIR, .0915 X 1-7/8 BS-5025210YP
...
22
AXLE BS-312023GS

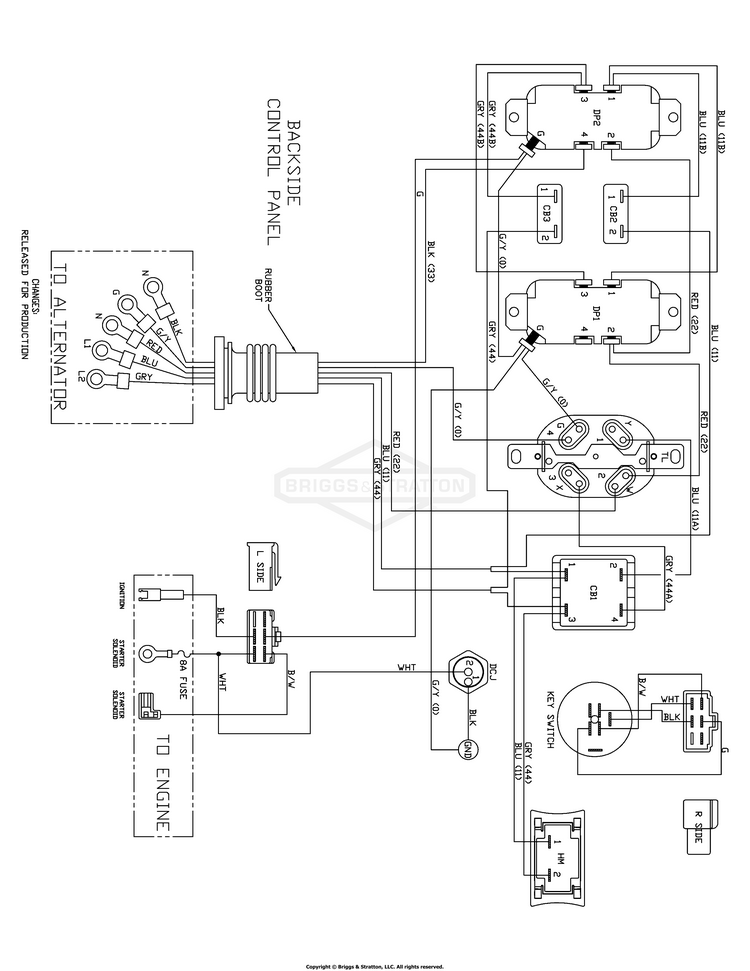

Wiring Diagram (80010736WD)

...

No Parts Available for this Schematic

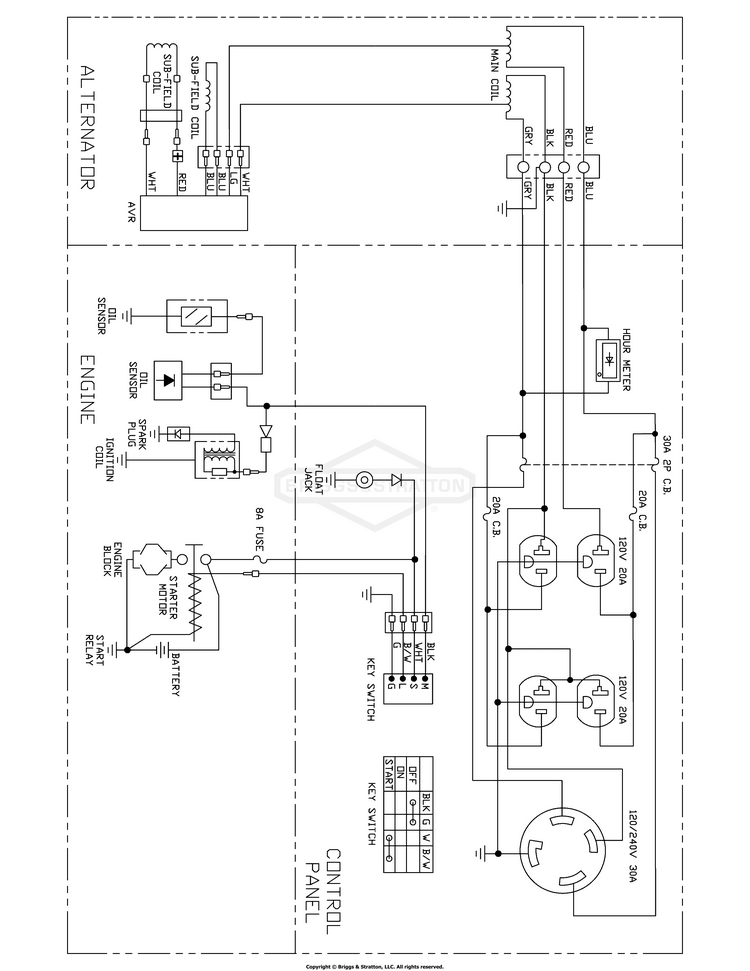

Wiring Schematic (80010736WS)

...

No Parts Available for this Schematic
